Home >> Kia >> 2004 >> Spectra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Timer/Control Unit, Accessory Control

Timer/Control Unit, Accessory Control

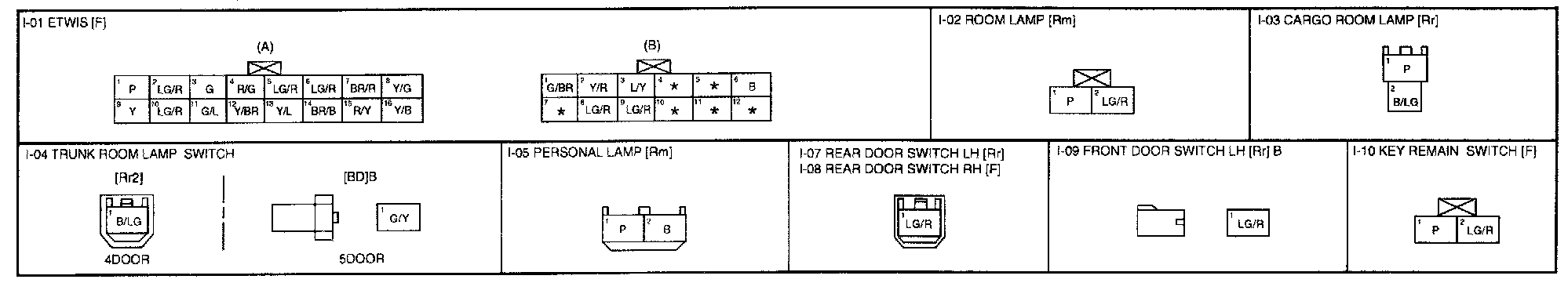

I-1a - Electrical Time & Warning Indication Systems (ETWIS), Room Lamps Connectors:

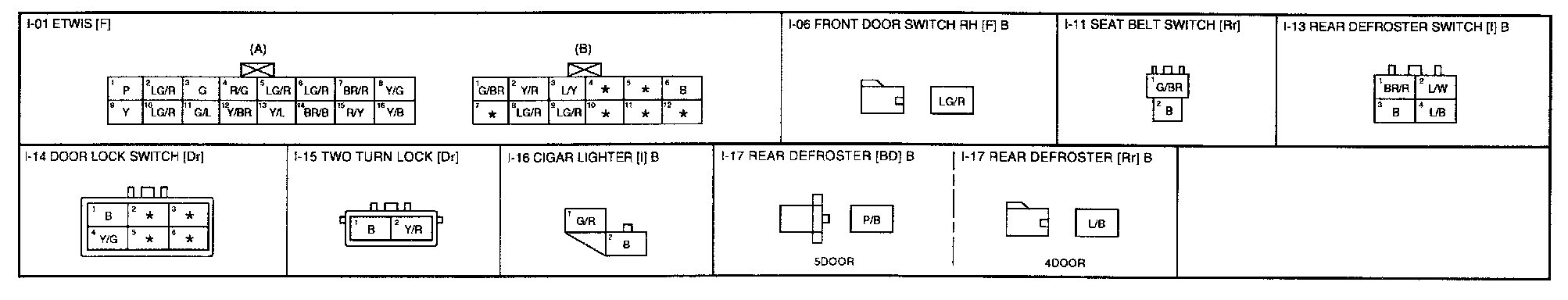

I-1b - Electrical Time & Warning Indication System(ETWIS), Cigar Lighter, Rear Defroster Connectors:
