ECU Side Connector

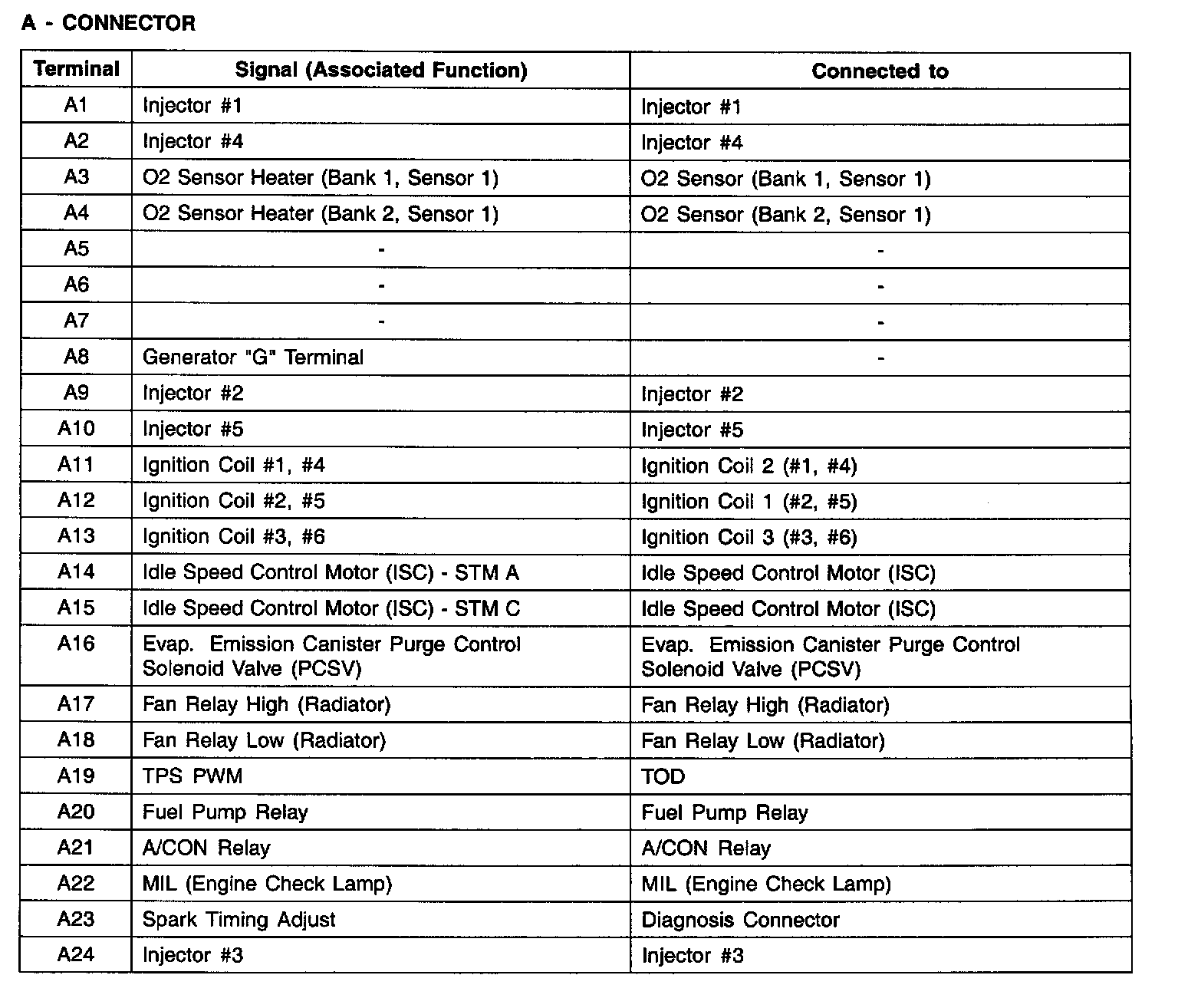

A - Connector (A1 - A24):

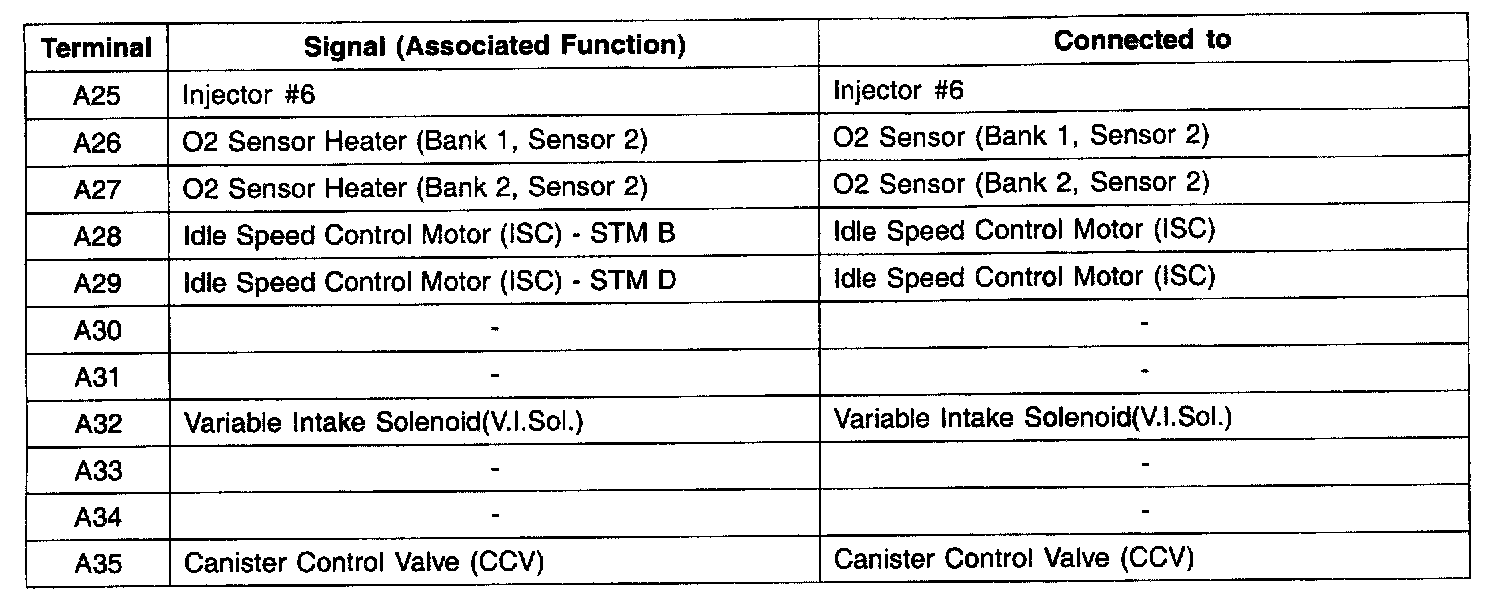

A - Connector (A25 - A35):

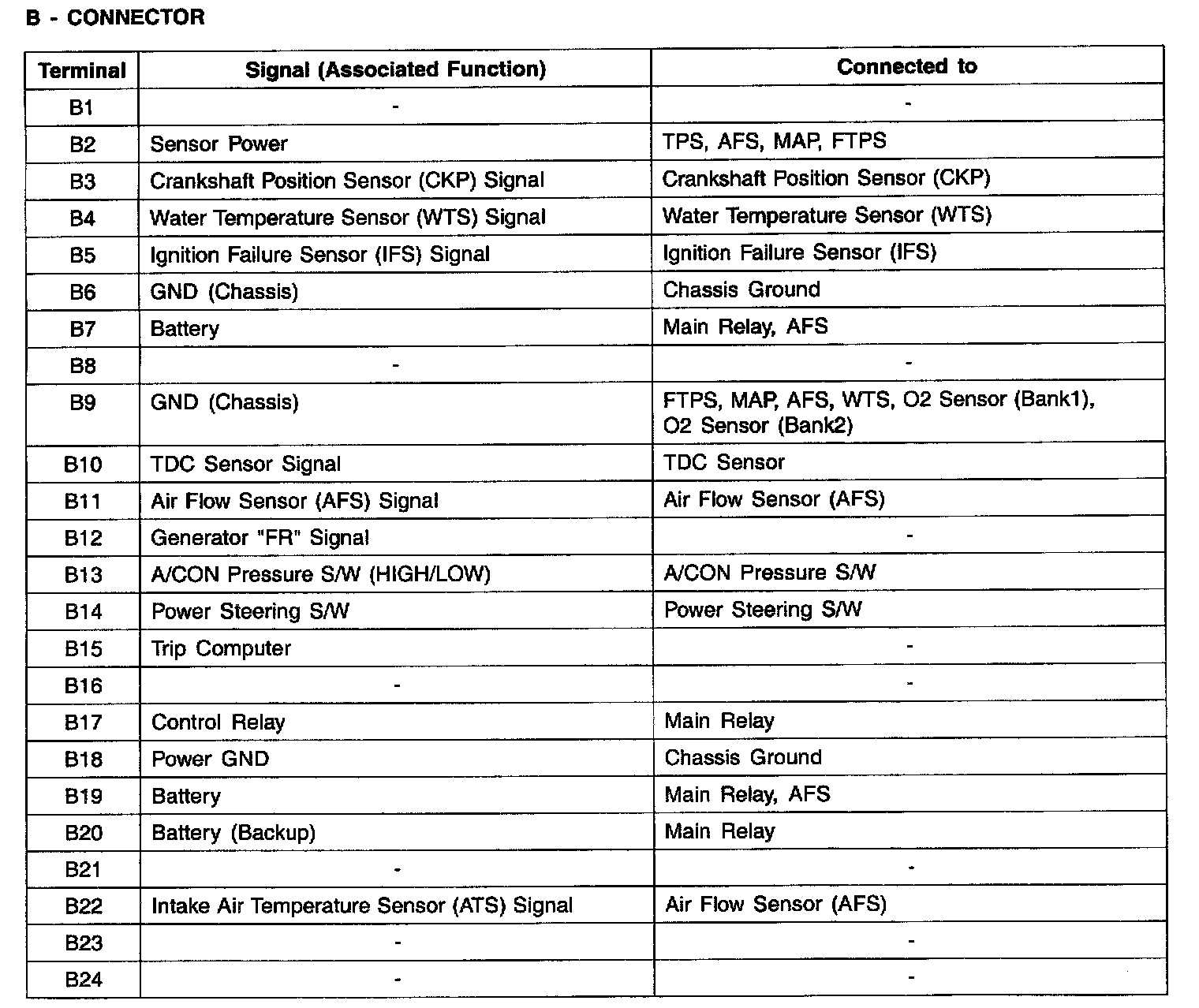

B - Connector (B1 - B24):

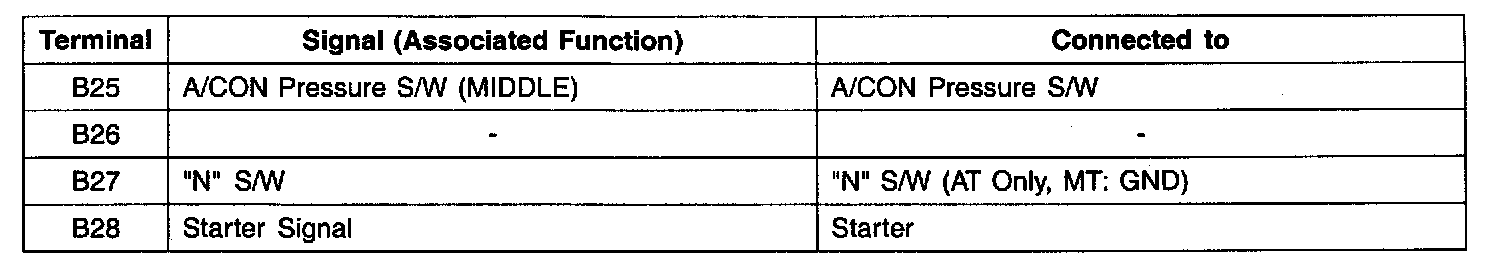

B - Connector (B25 - B28):

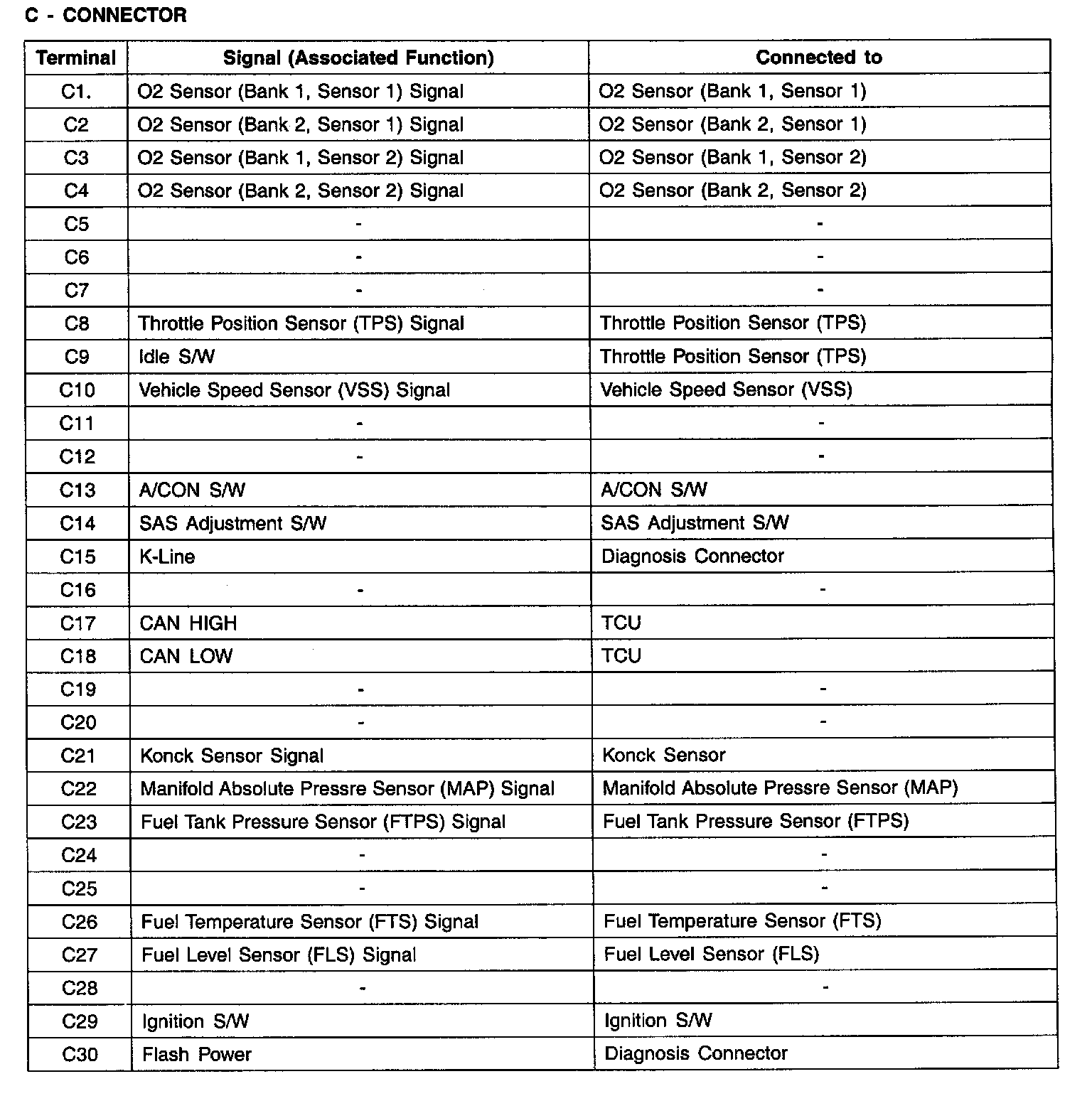

C - Connector (C1 - C30):

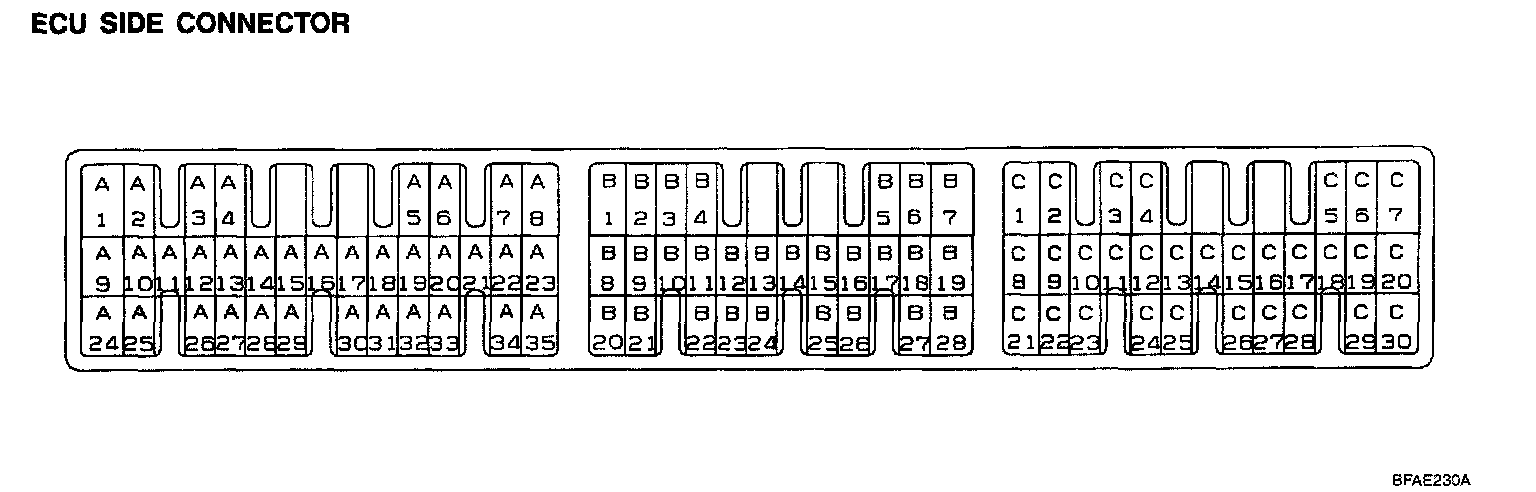

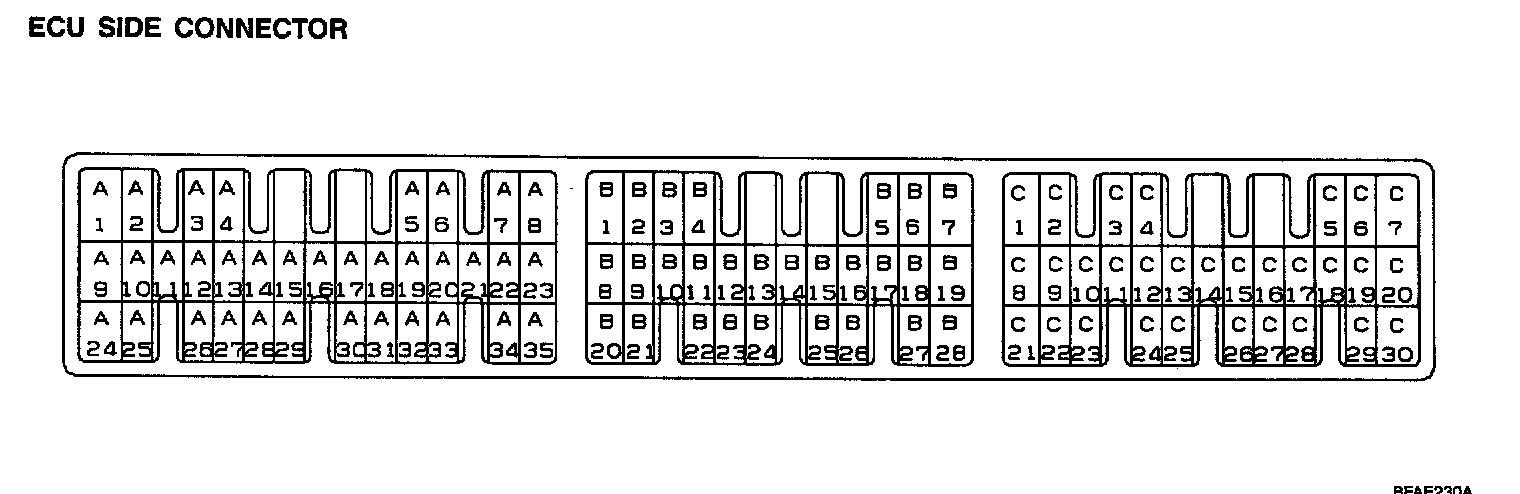

ECU Side Connector:
