Kia
>>
2004
>>
Rio L4-1.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
System Specifications

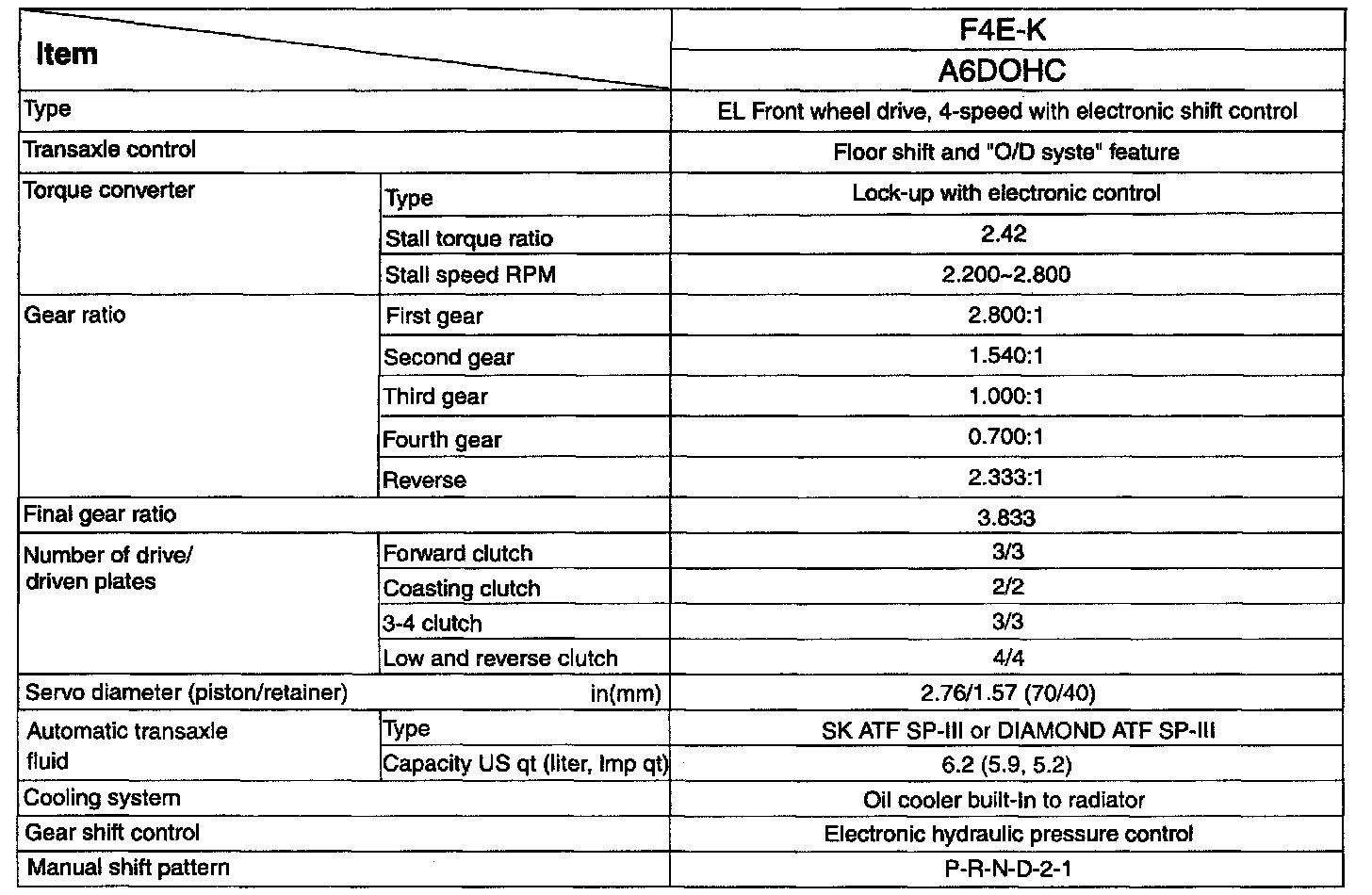

SPECIFICATIONS
TIGHTENING TORQUE
Oil pan (19 bolts)
74.4 - 94.8 inch lbs. (8.4 - 10.7 Nm, 85 - 110 kg-cm)
