Connector View Legend

ECM Connector View Legend

Connector B-01 (ECM Terminal Voltage):

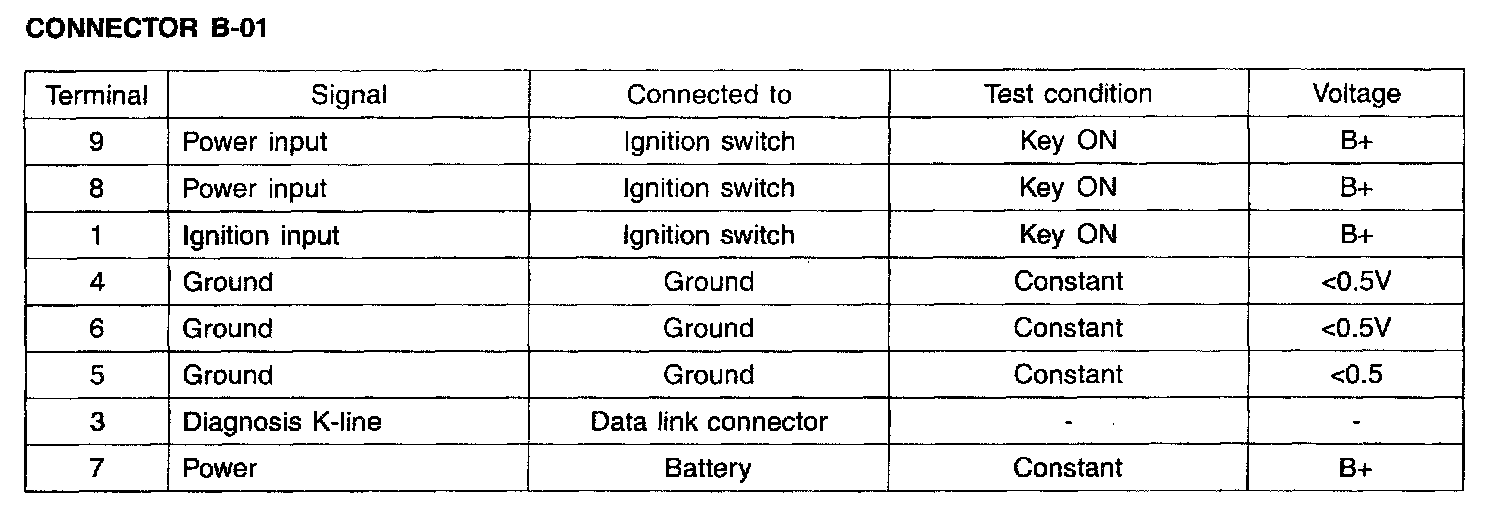

Connector B-01


Connector B-02 (ECM Terminal Voltage):

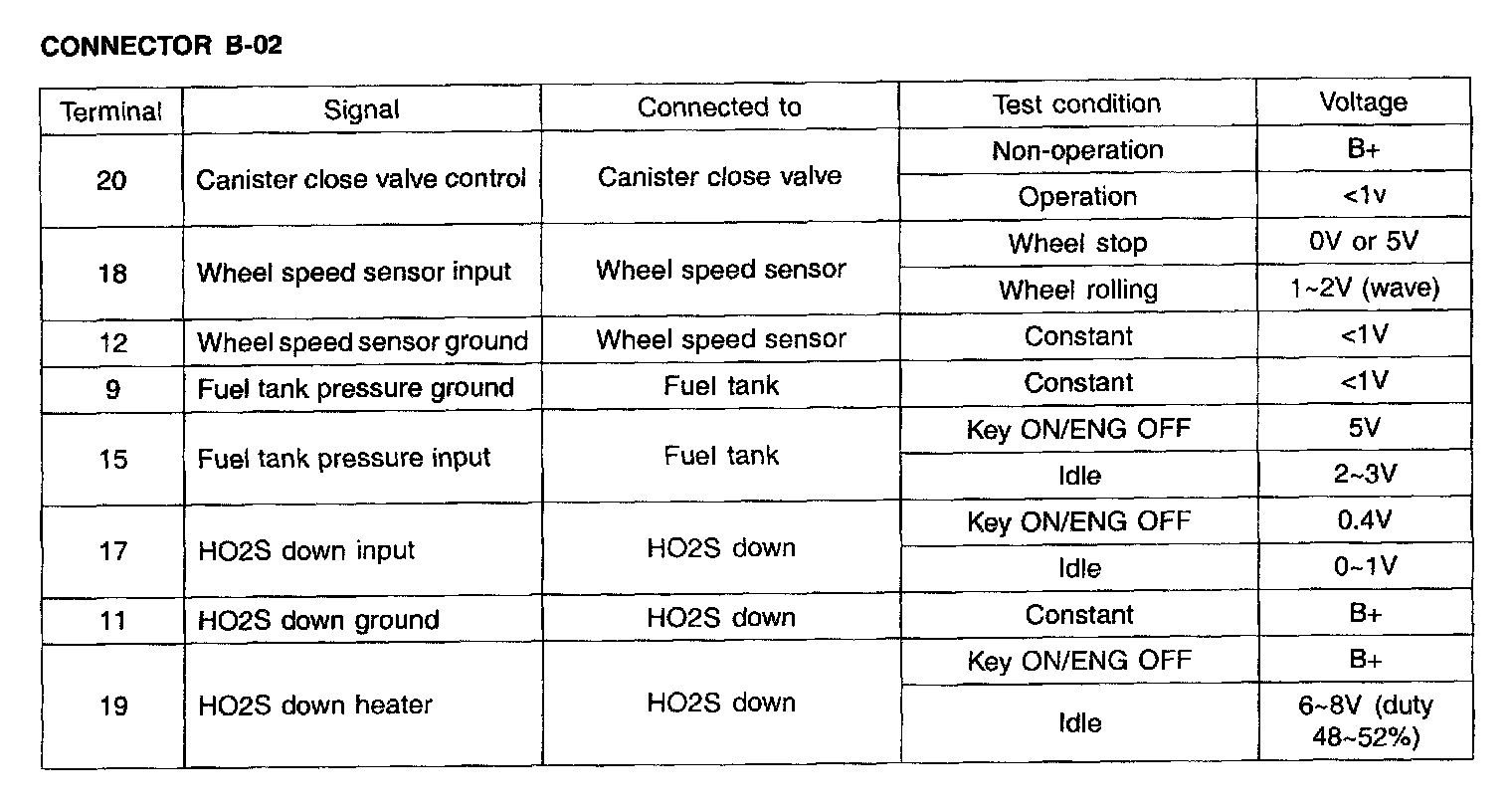

Connector B-02

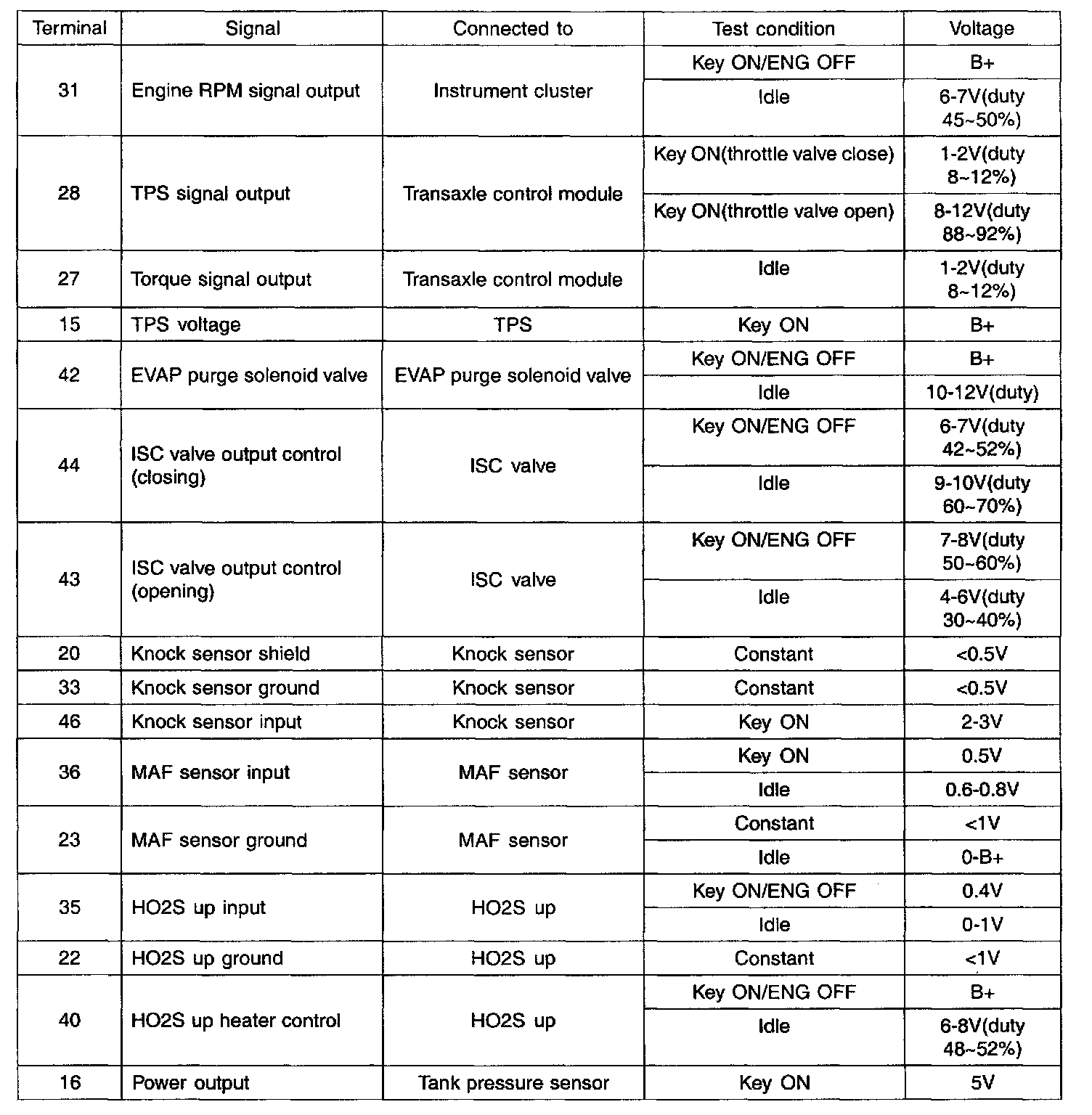

Connector B-03 (ECM Terminal Voltage) Part 1:




Connector B-03 (ECM Terminal Voltage) Part 2:

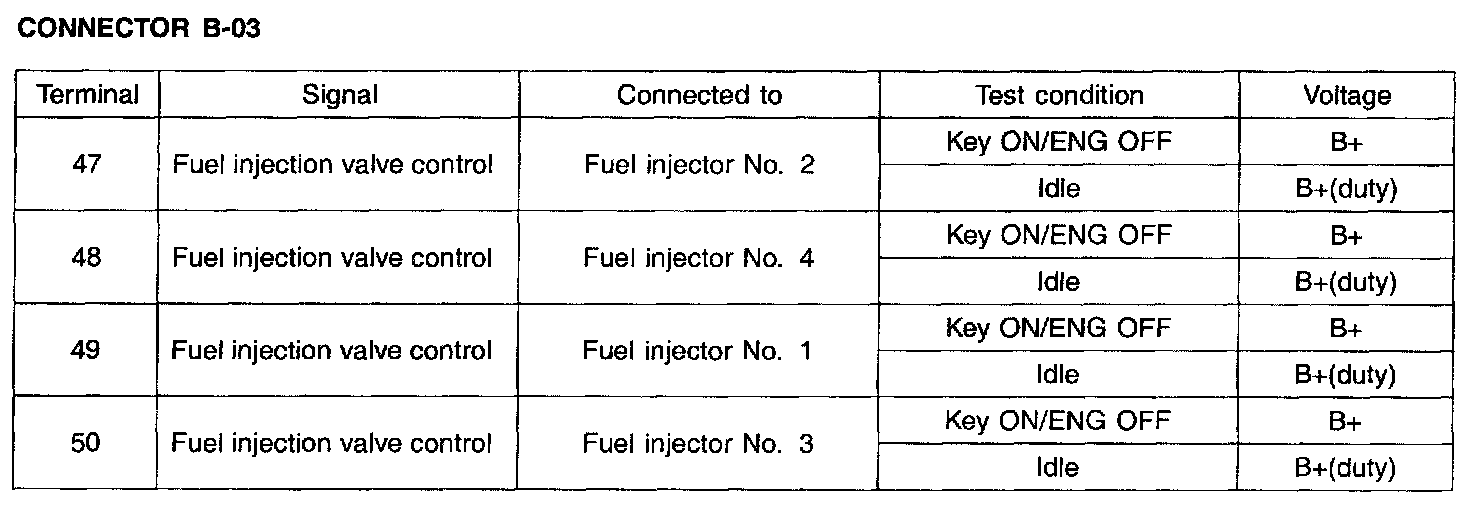

Connector B-03

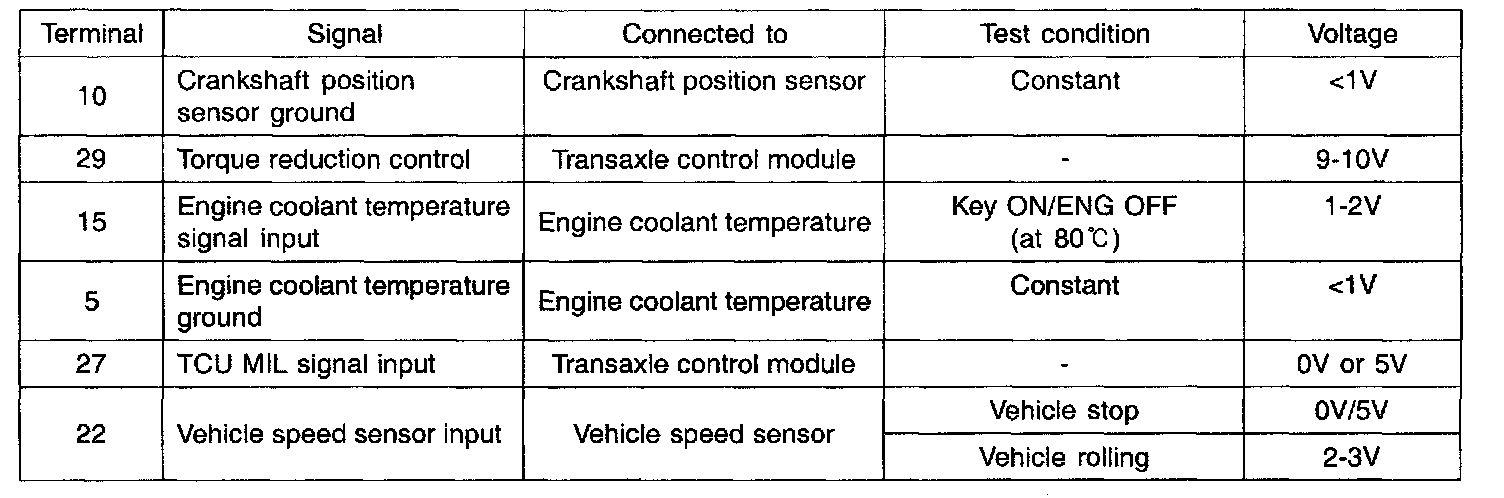

Connector B-04 (ECM Terminal Voltage) Part 1:




Connector B-04 (ECM Terminal Voltage) Part 2:

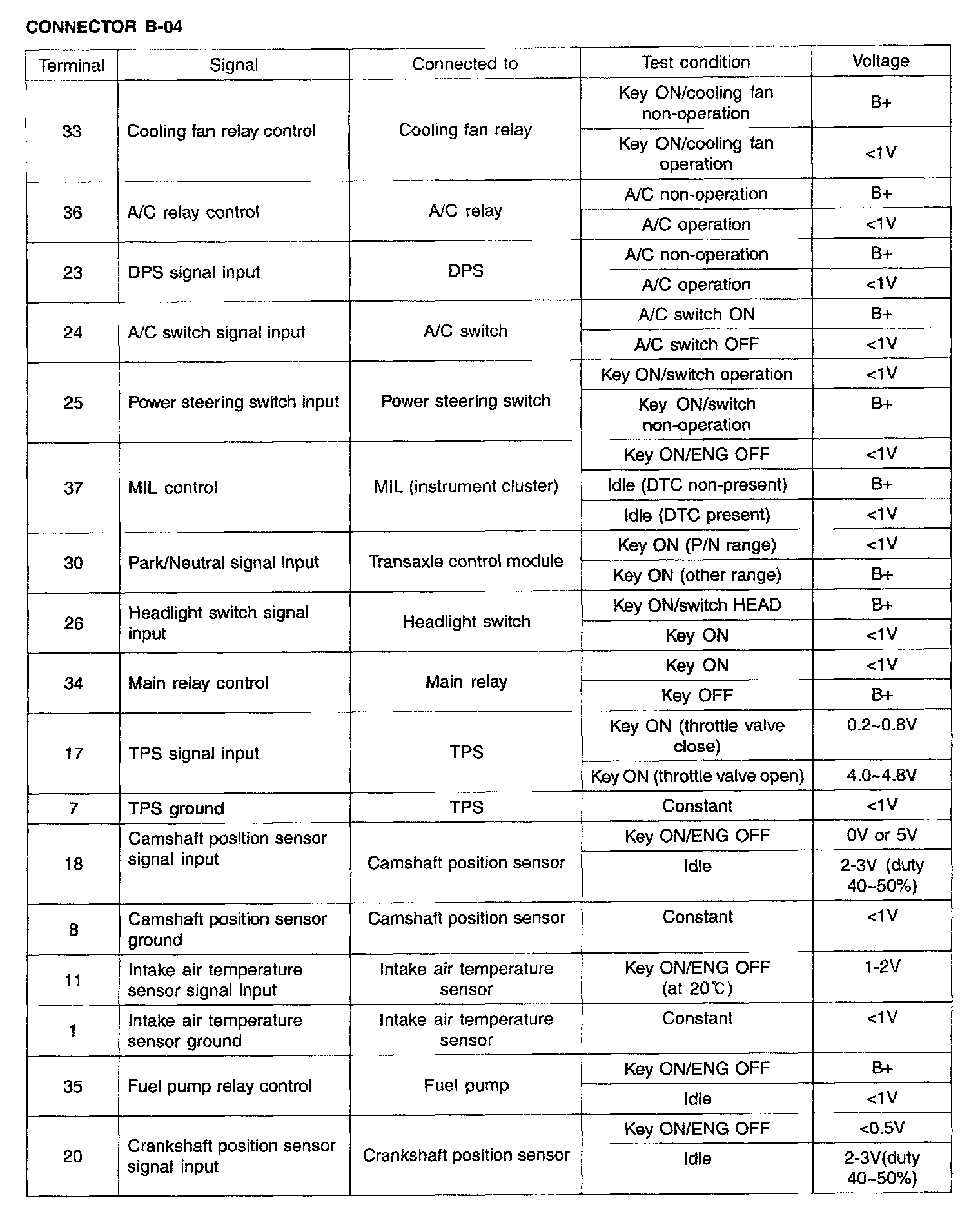

Connector B-04


Connector B-05 (ECM Terminal Voltage):

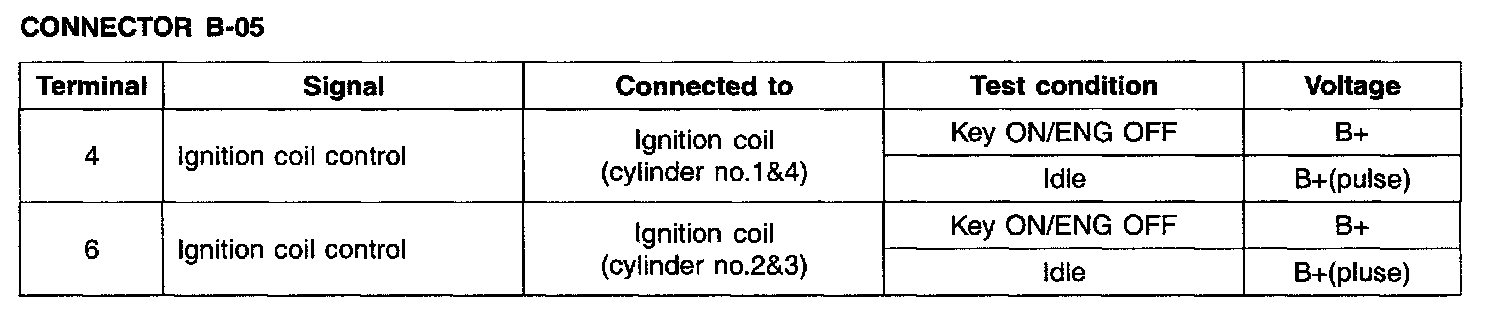

Connector B-05
