Control Assembly, HVAC
Control Assembly, HVAC

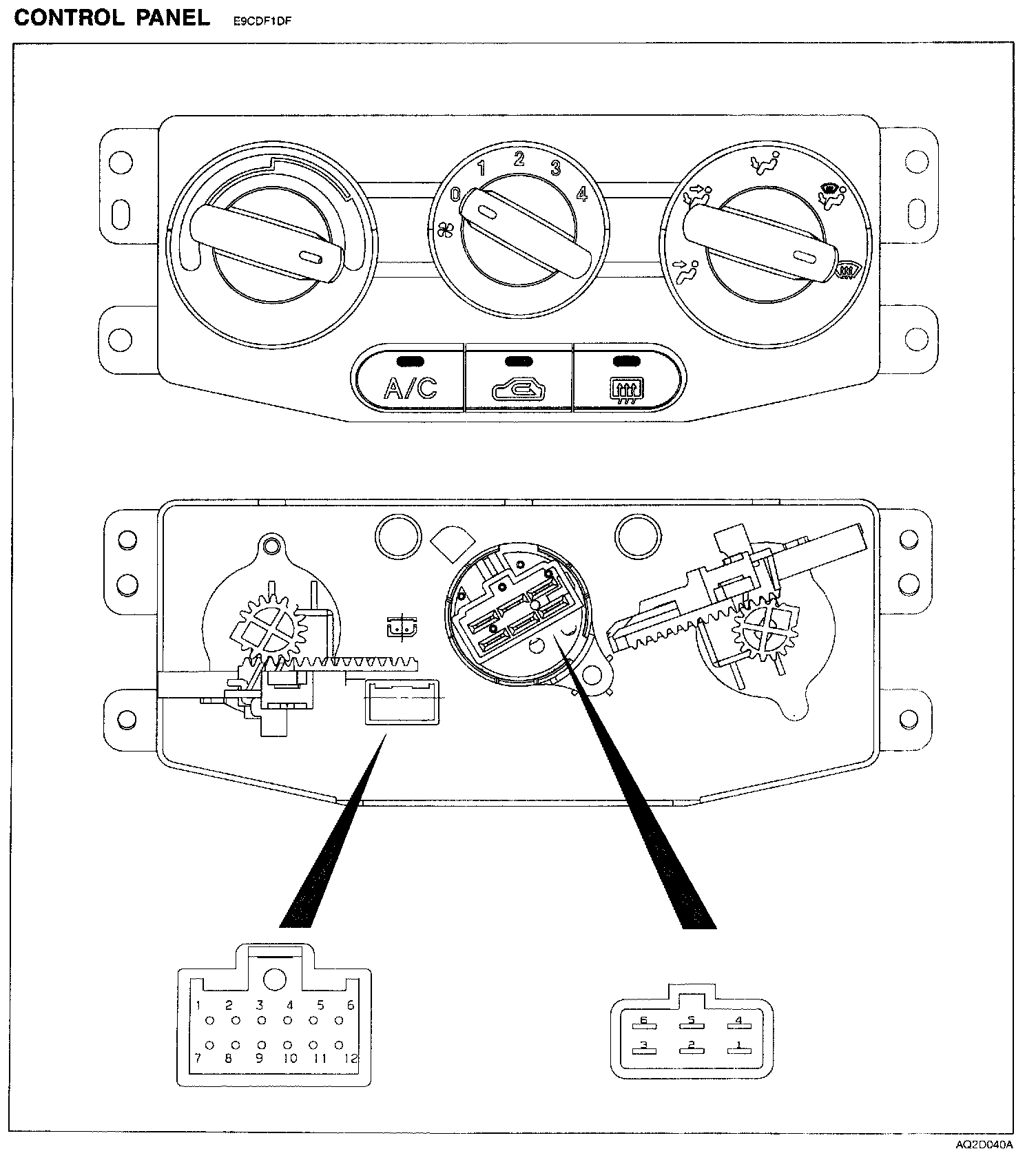

Blower And A/C Controls (Manual) - Control Panel:

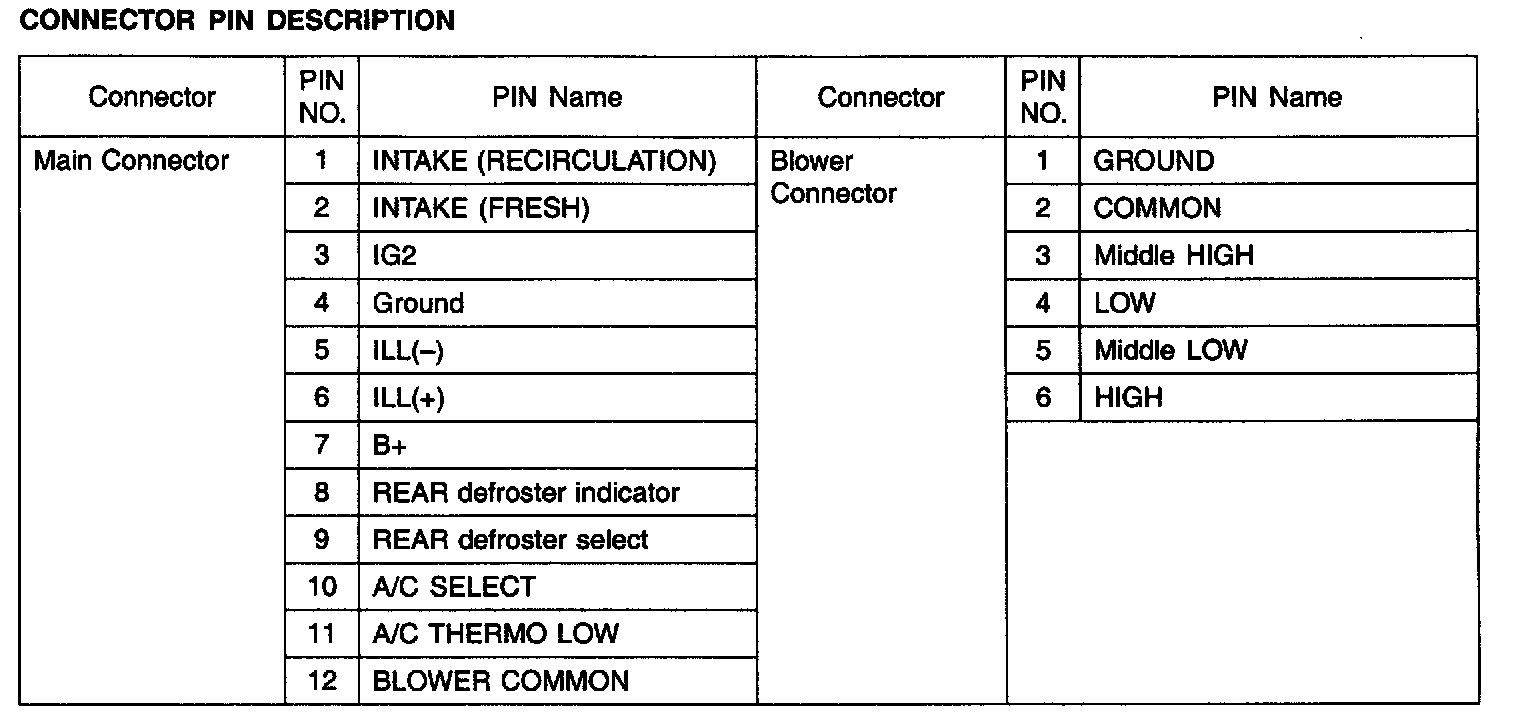

Connector Pin Description:
