Connector Locations

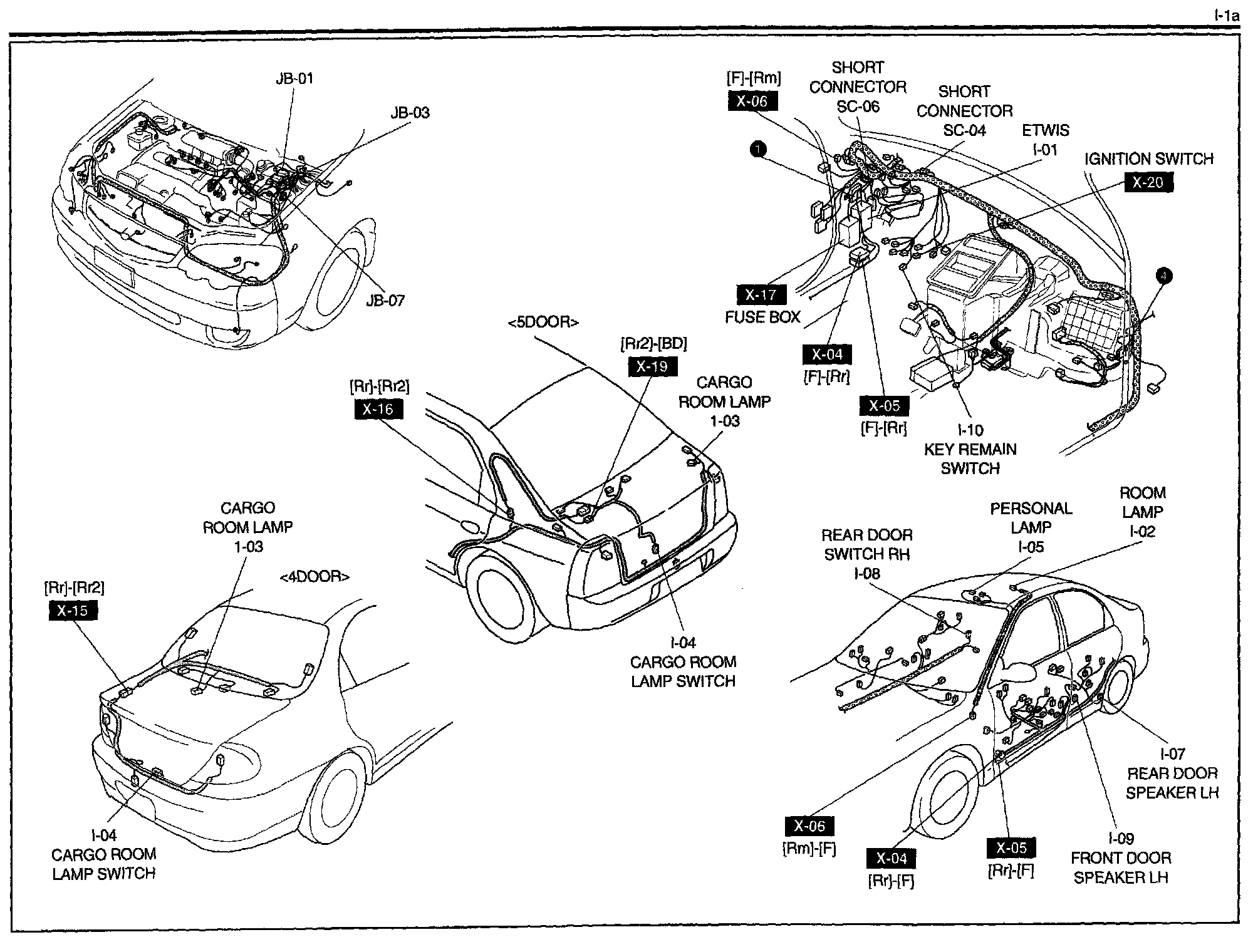

I-1a - Electrical Time & Warning Indication Systems (ETWIS), Room Lamps Harness / Connectors Symbols:

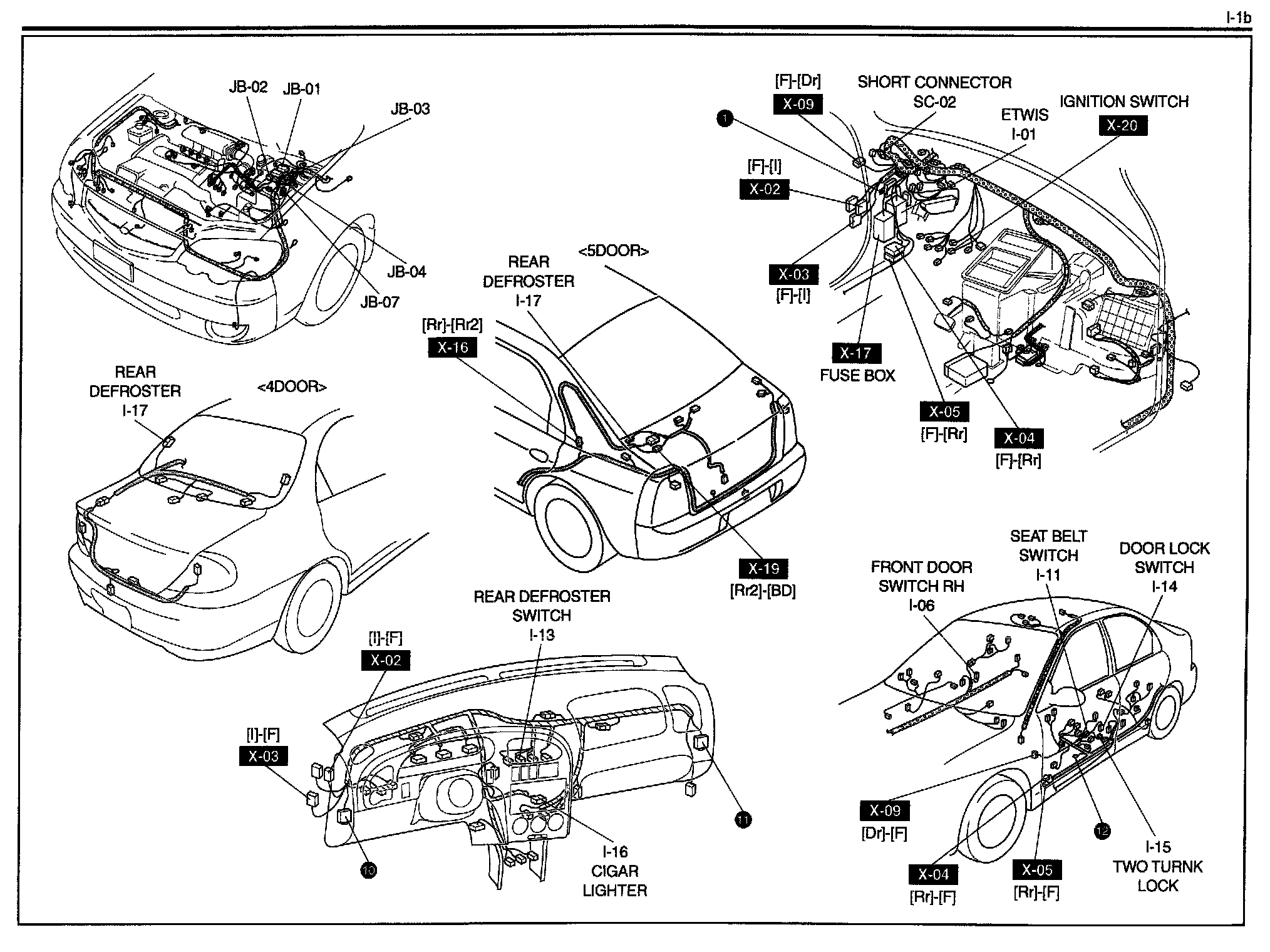

I-1b - Electrical Time & Warning Indication System(ETWIS), Cigar Lighter, Rear Defroster Harness / Connectors Symbols:
