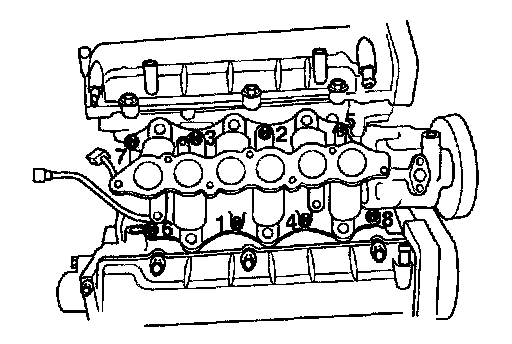

Intake Manifold

TIGHTENING TORQUE





Intake manifold to engine 20-23 Nm (200-230 kg-cm, 14-17 ft. lbs.)
Air intake surge tank to intake manifold (bolt); 15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)
Air intake surge tank to intake manifold (nut); 15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)
