ECU Input / Output Check Sheet

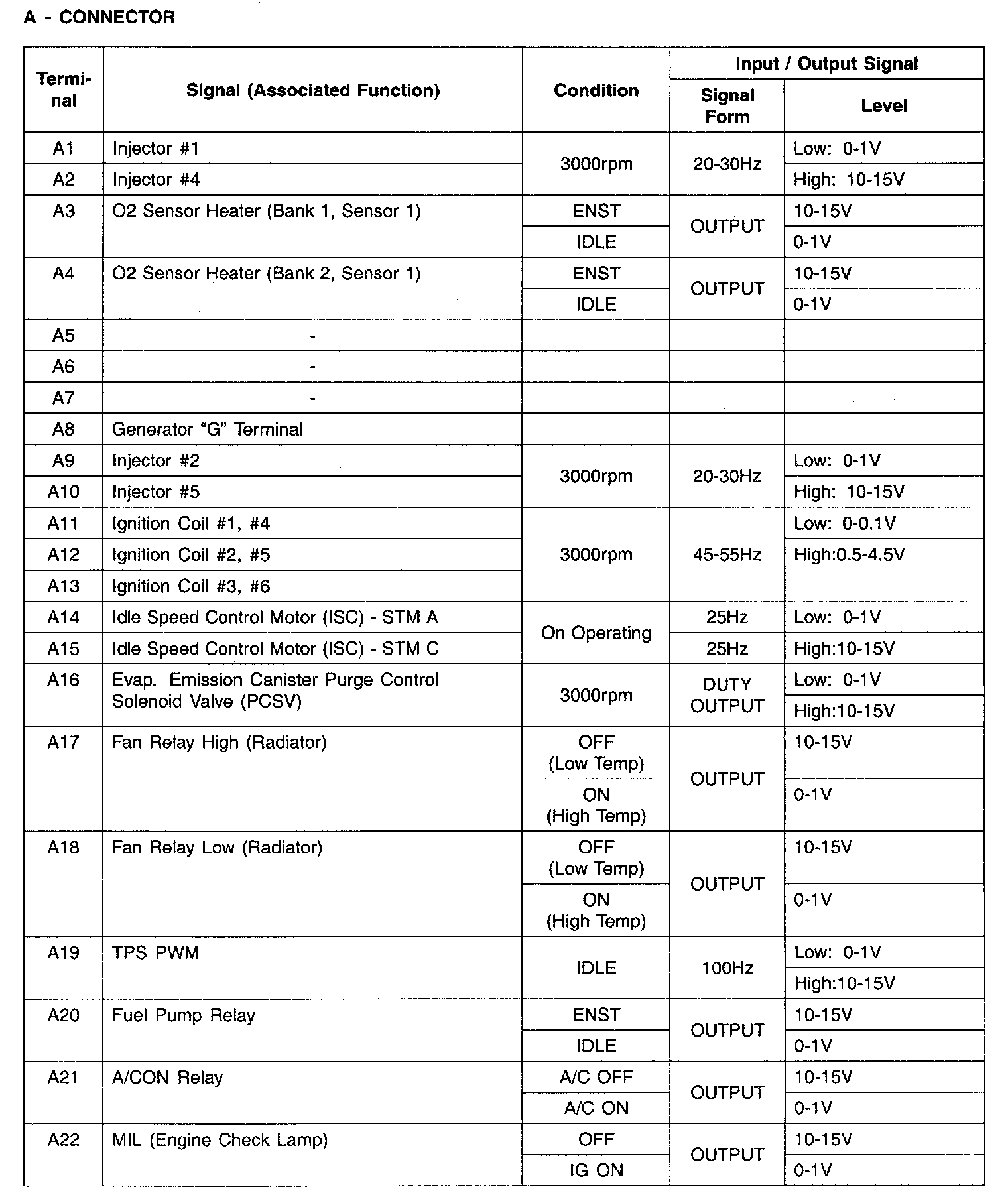

Connector A - (A1-A22):

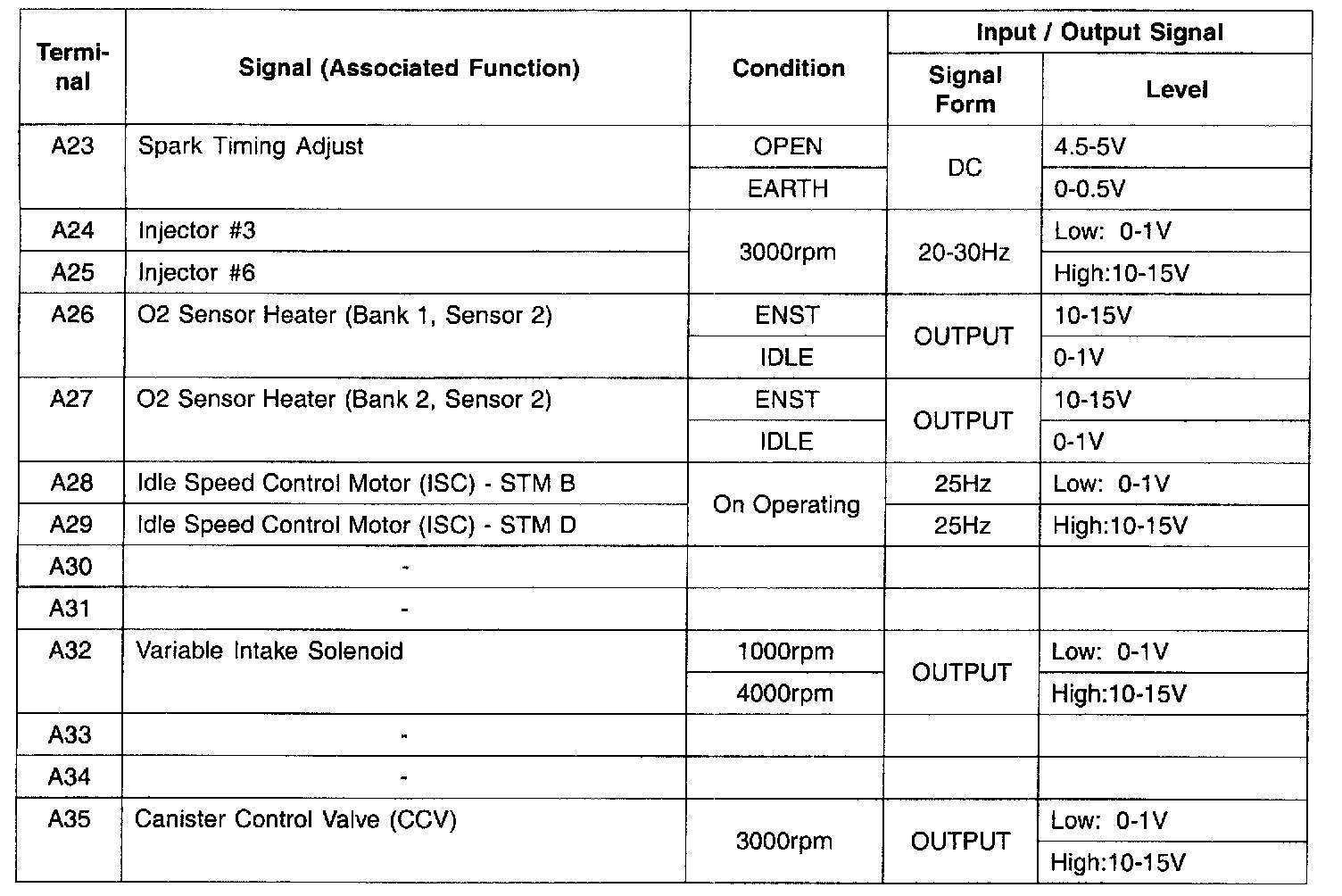

Connector A - (A23-A35):

A - Connector

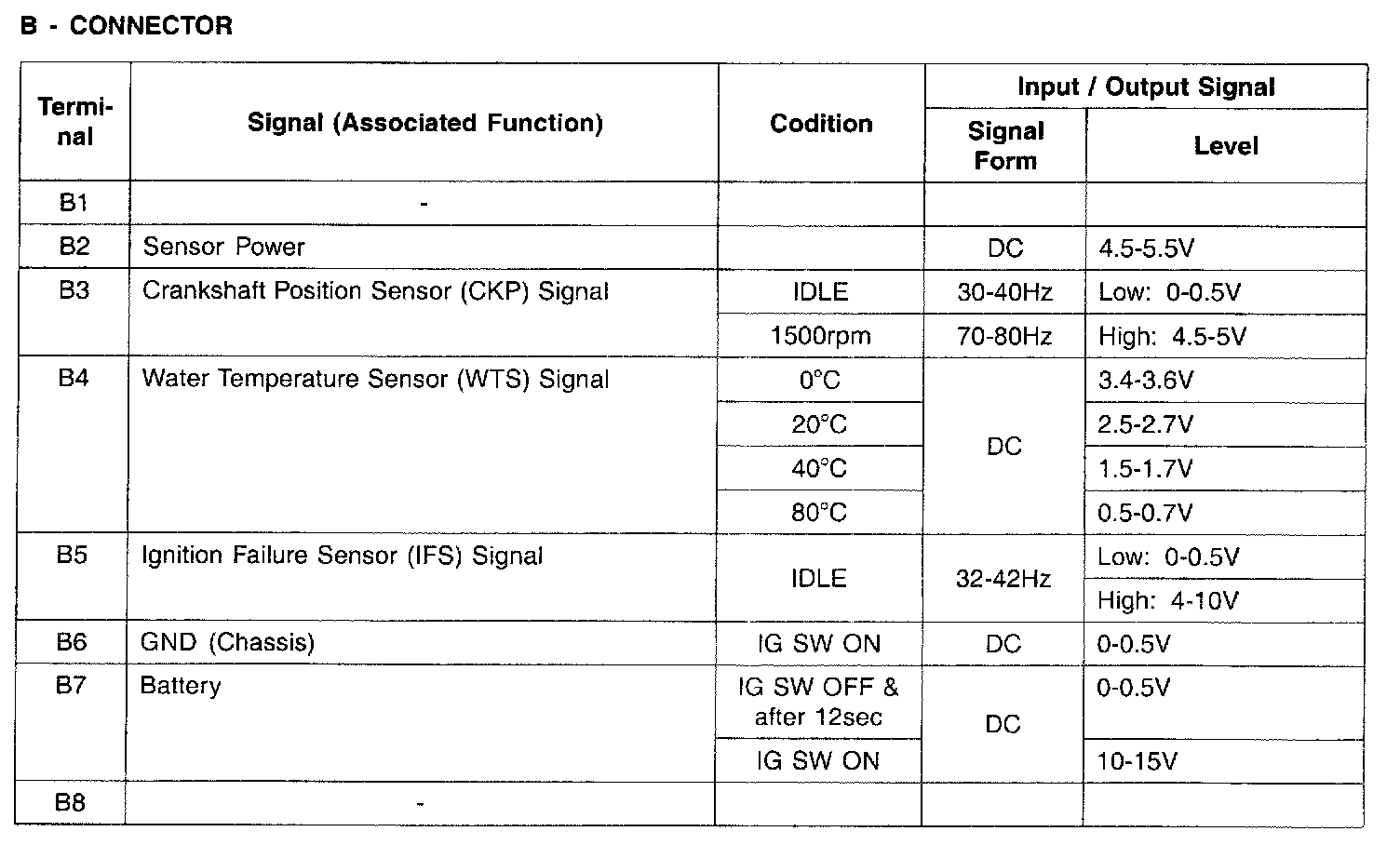

Connector B - (B1-B8):

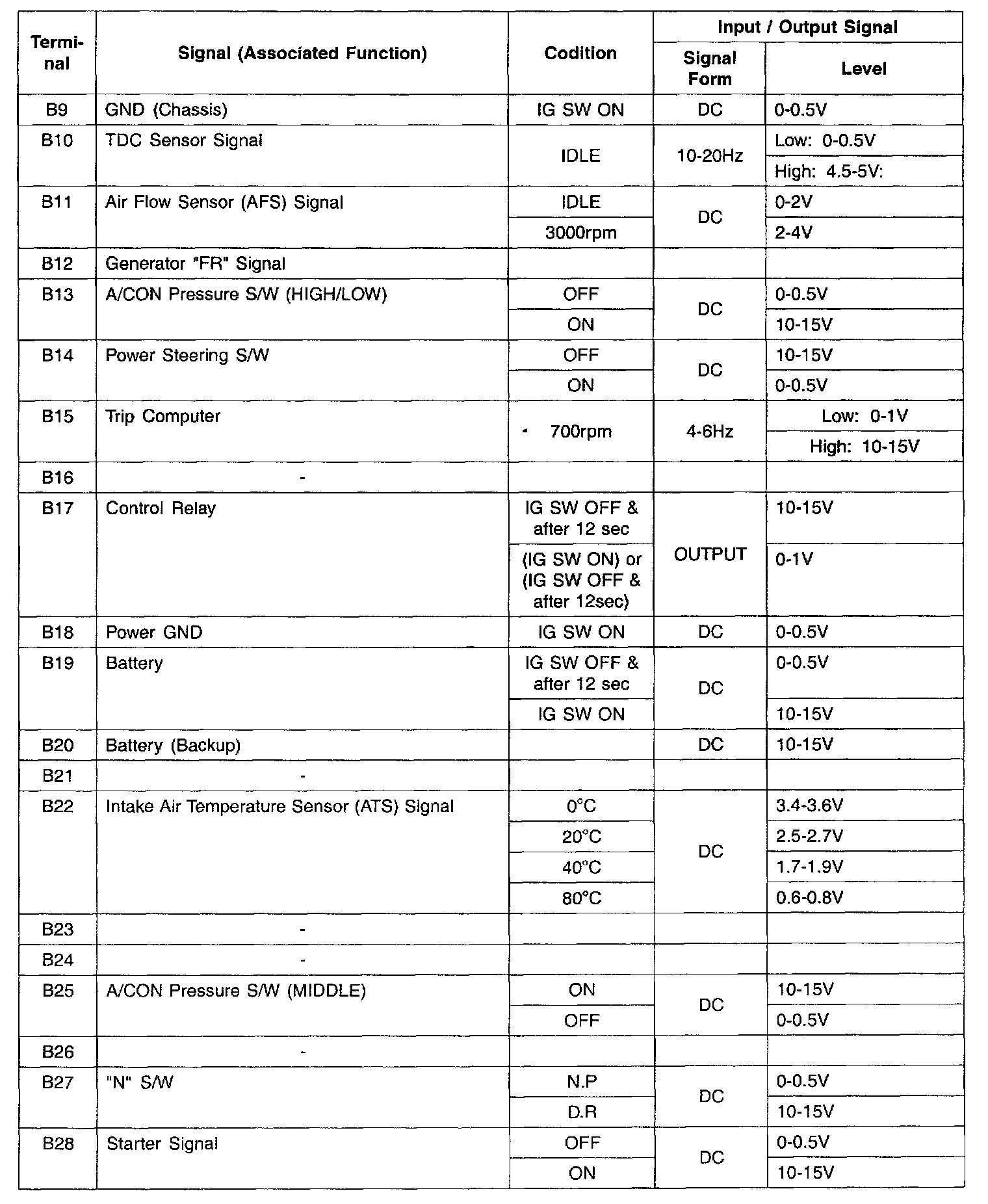

Connector B - (B9-B28):

B - Connector

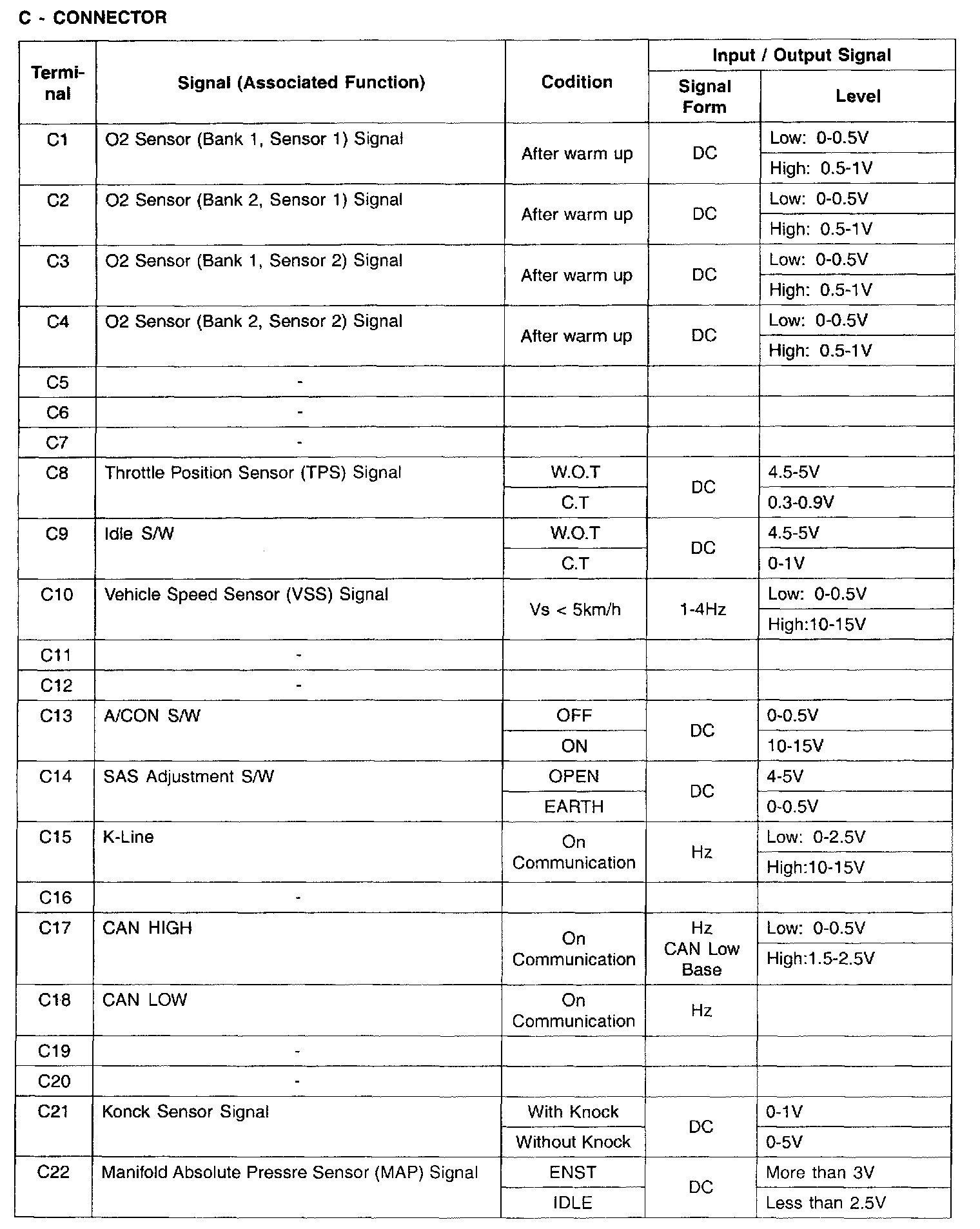

Connector C - (C1-C22):

Connector C - (C23-C30):

C - Connector
