Home >> Kia >> 2003 >> Sorento V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly

Axle Shaft Assembly

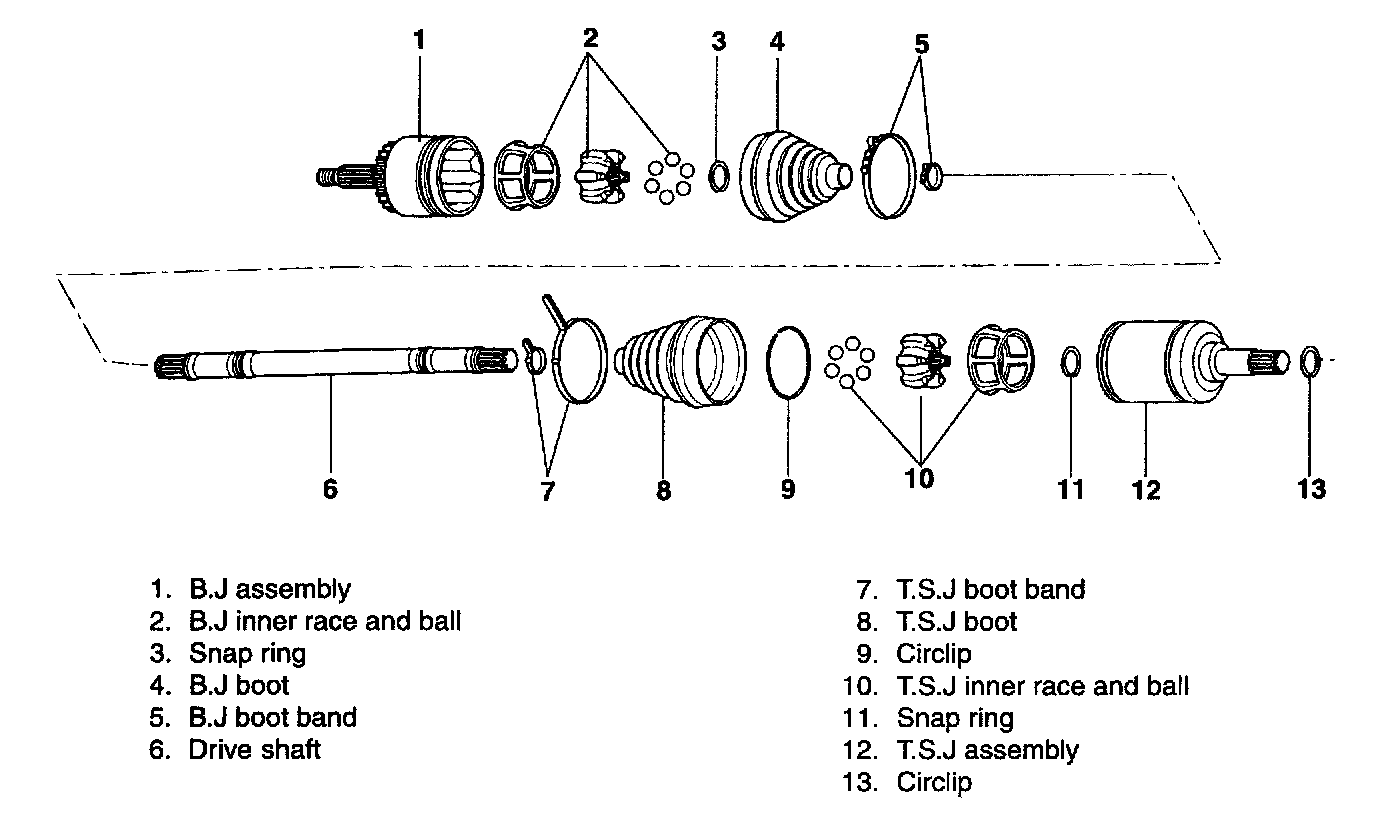

FRONT DRIVE SHAFT (T.J.-B.J. TYPE)
COMPONENTS (T.S.J.-B.J.)
