Engine Control Module

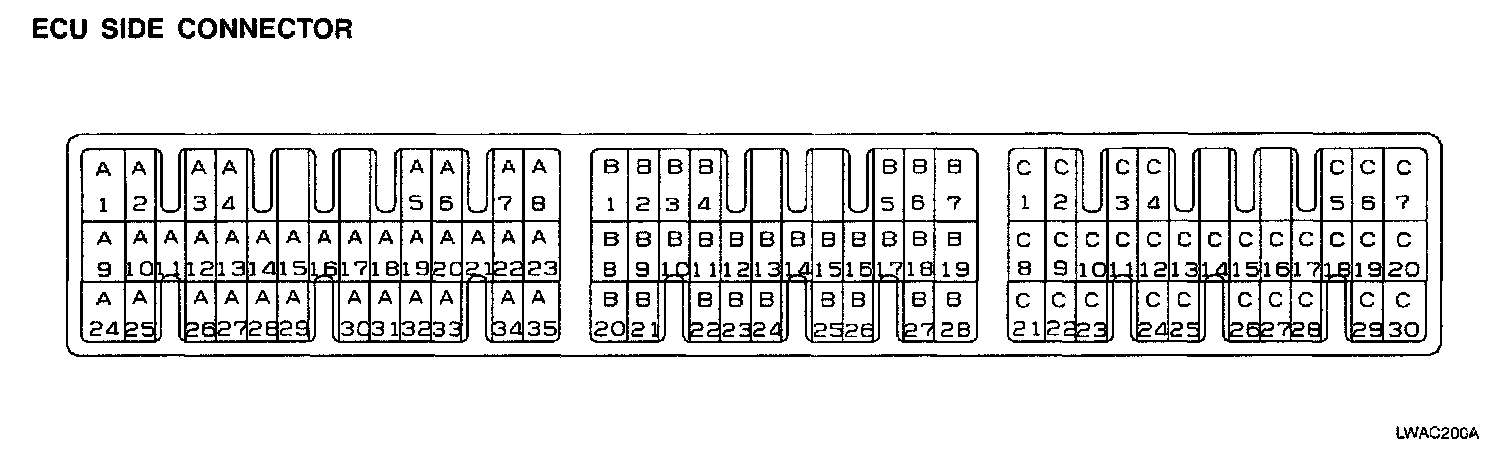

ECU Side Connector

Connector A - (A1-A26):

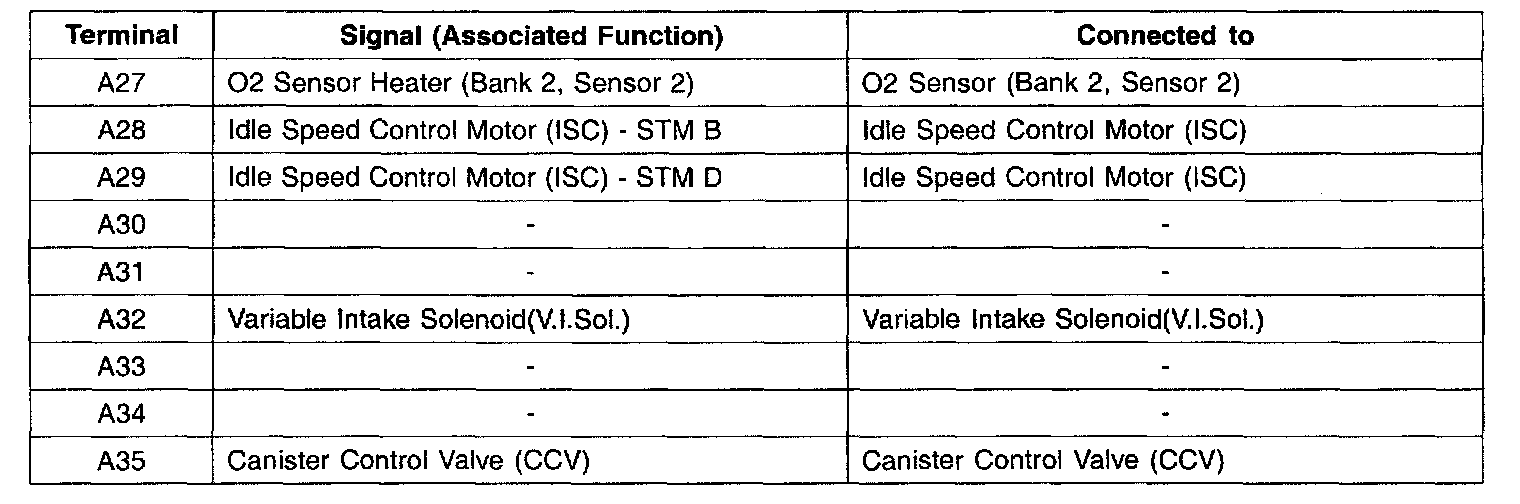

Connector A - (A27-A35):

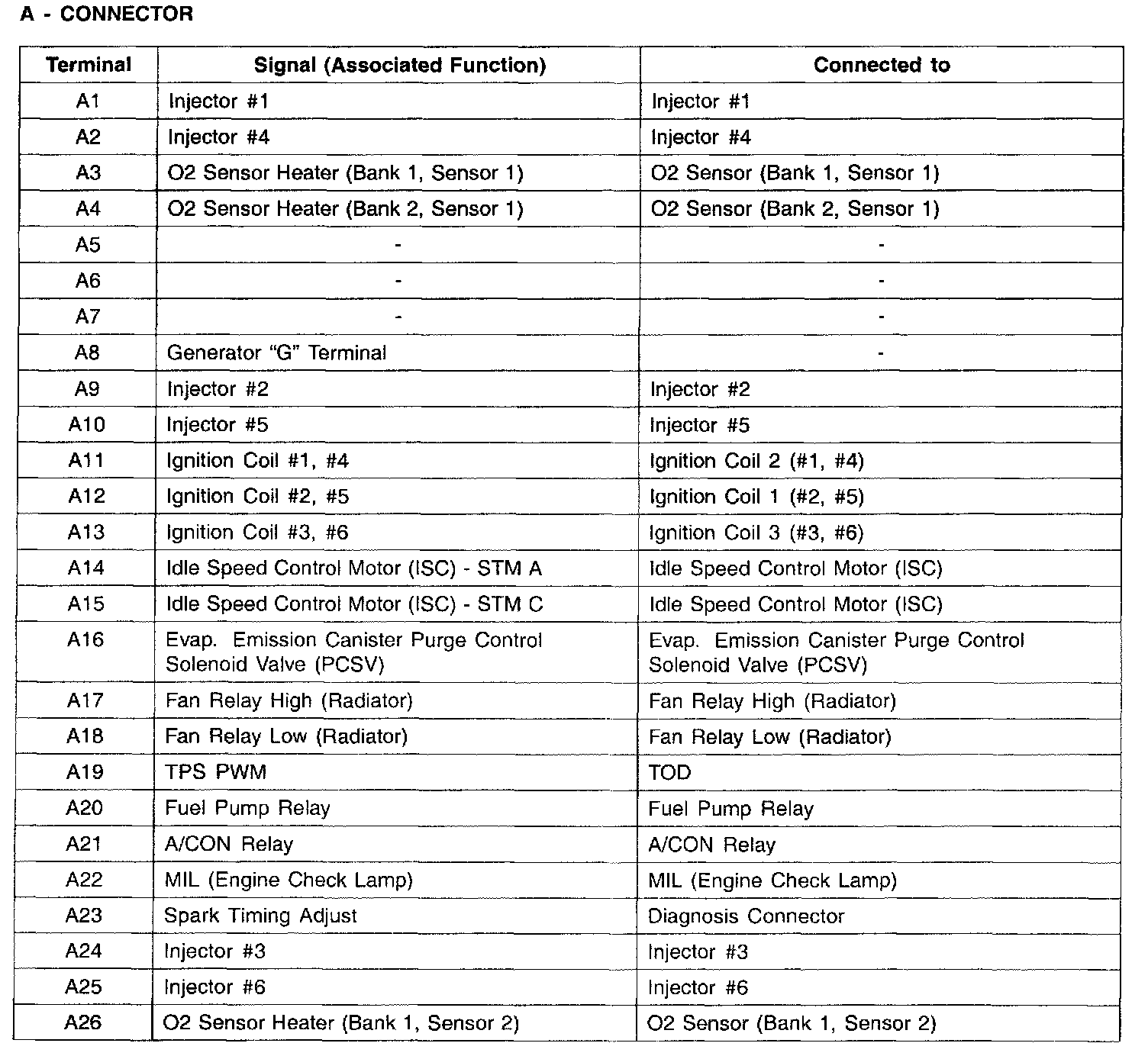

A - Connector

Connector B - (B1-B26):

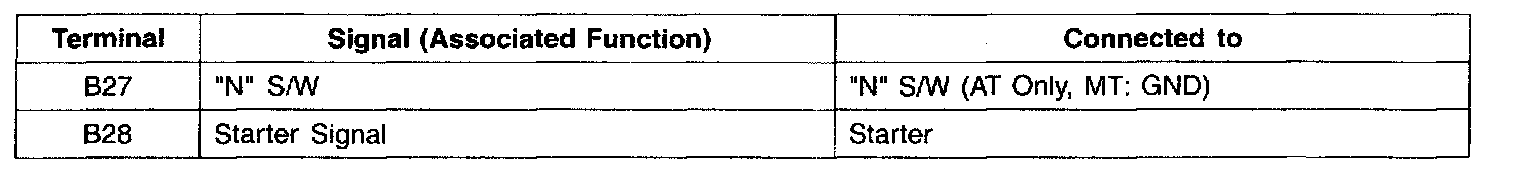

Connector B - (B27-B28):

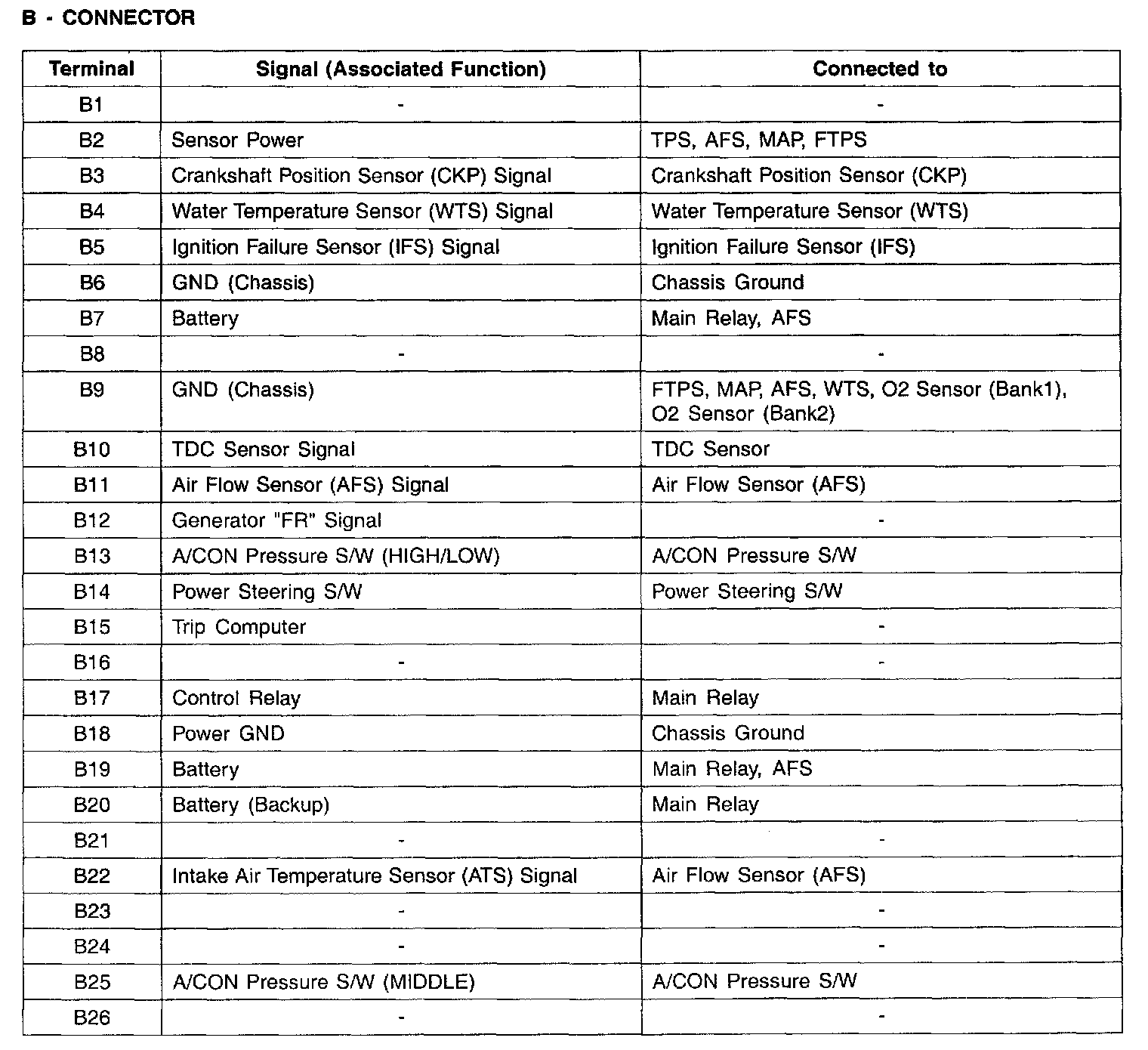

B - Connector

Connector C - (C1-C30):

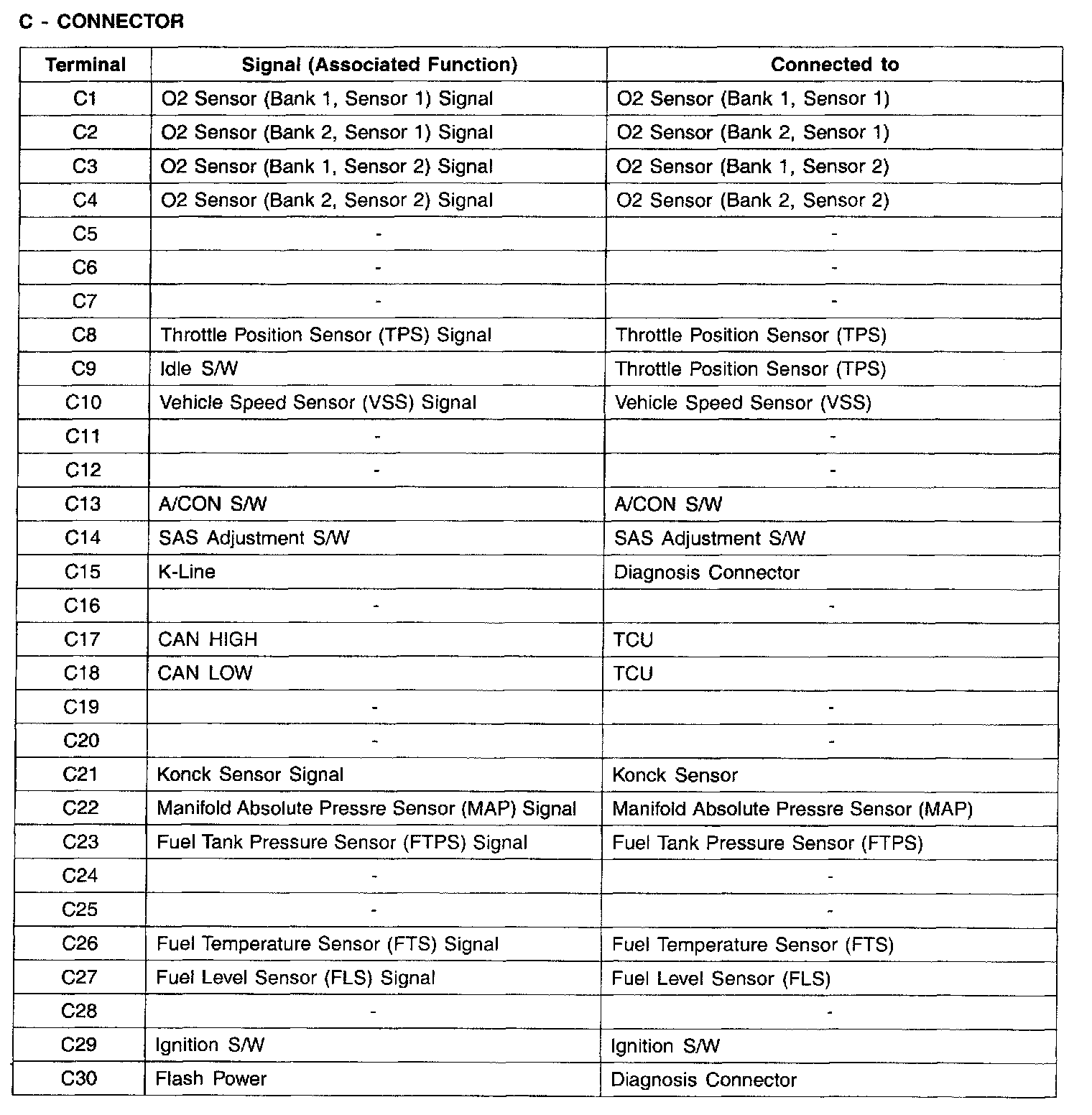

C - Connector
