Home >> Kia >> 2003 >> Sedona V6-3.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations >> Front Control Unit

Front Control Unit

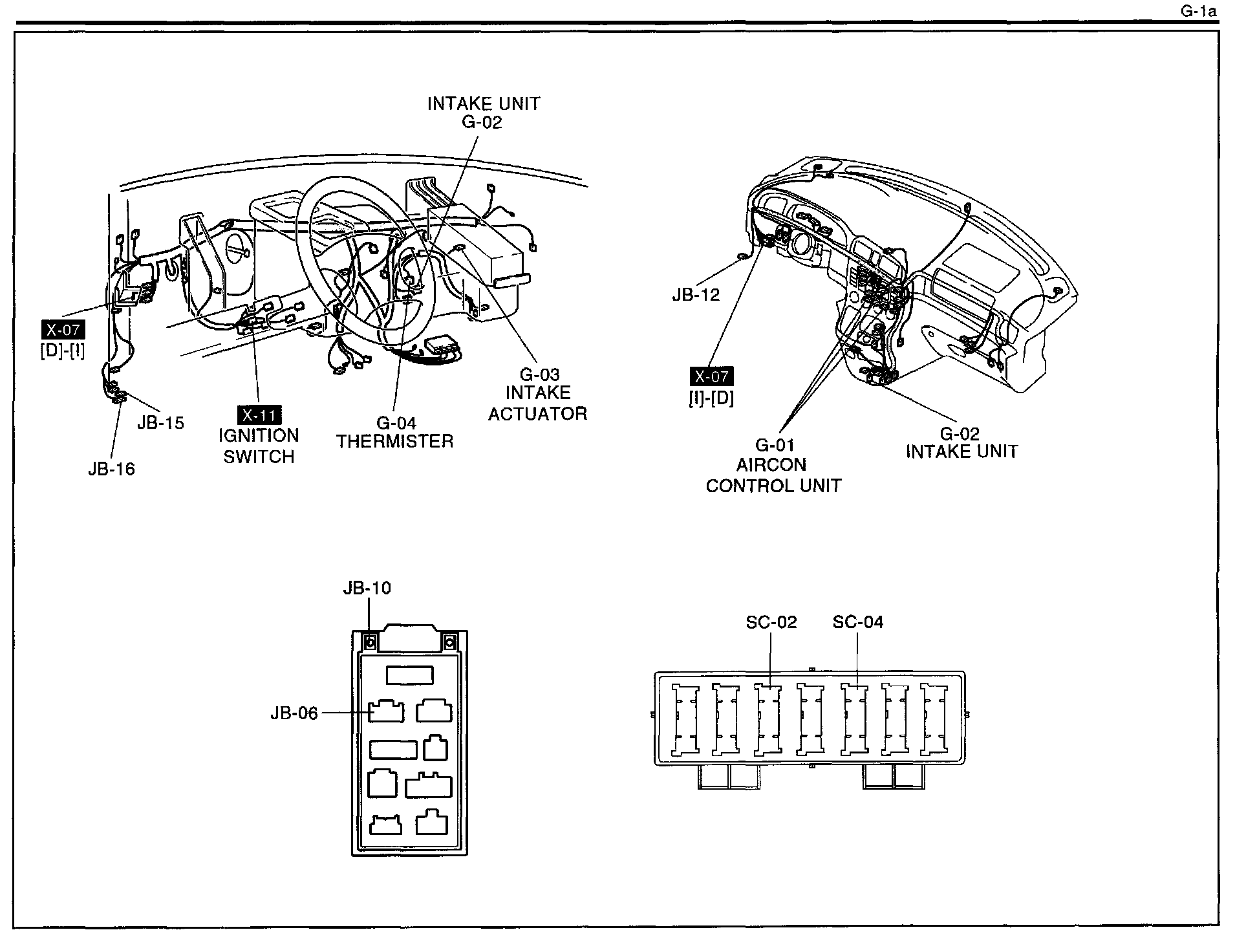

Routing View G-1a:

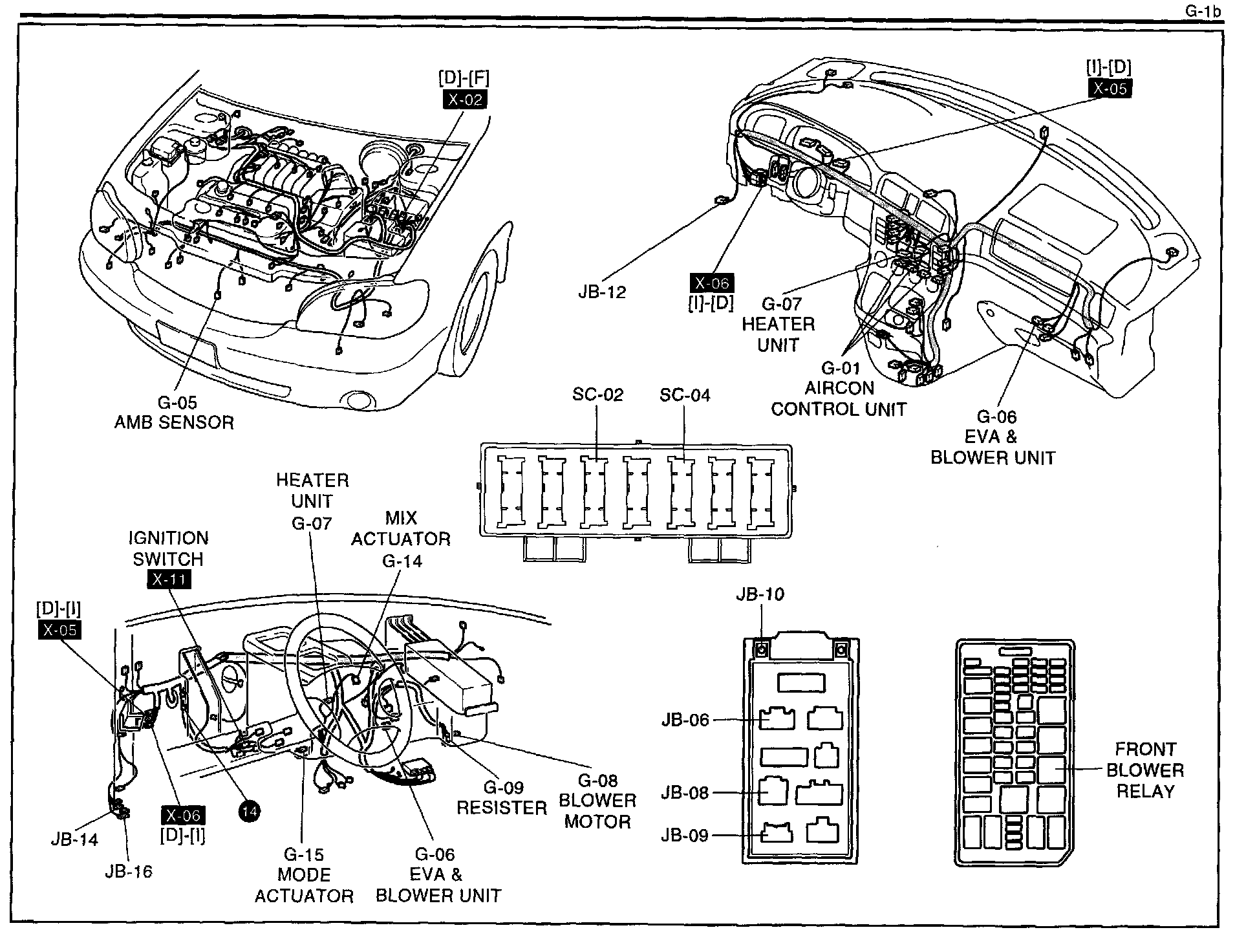

Routing View G-1b:
