I-1a

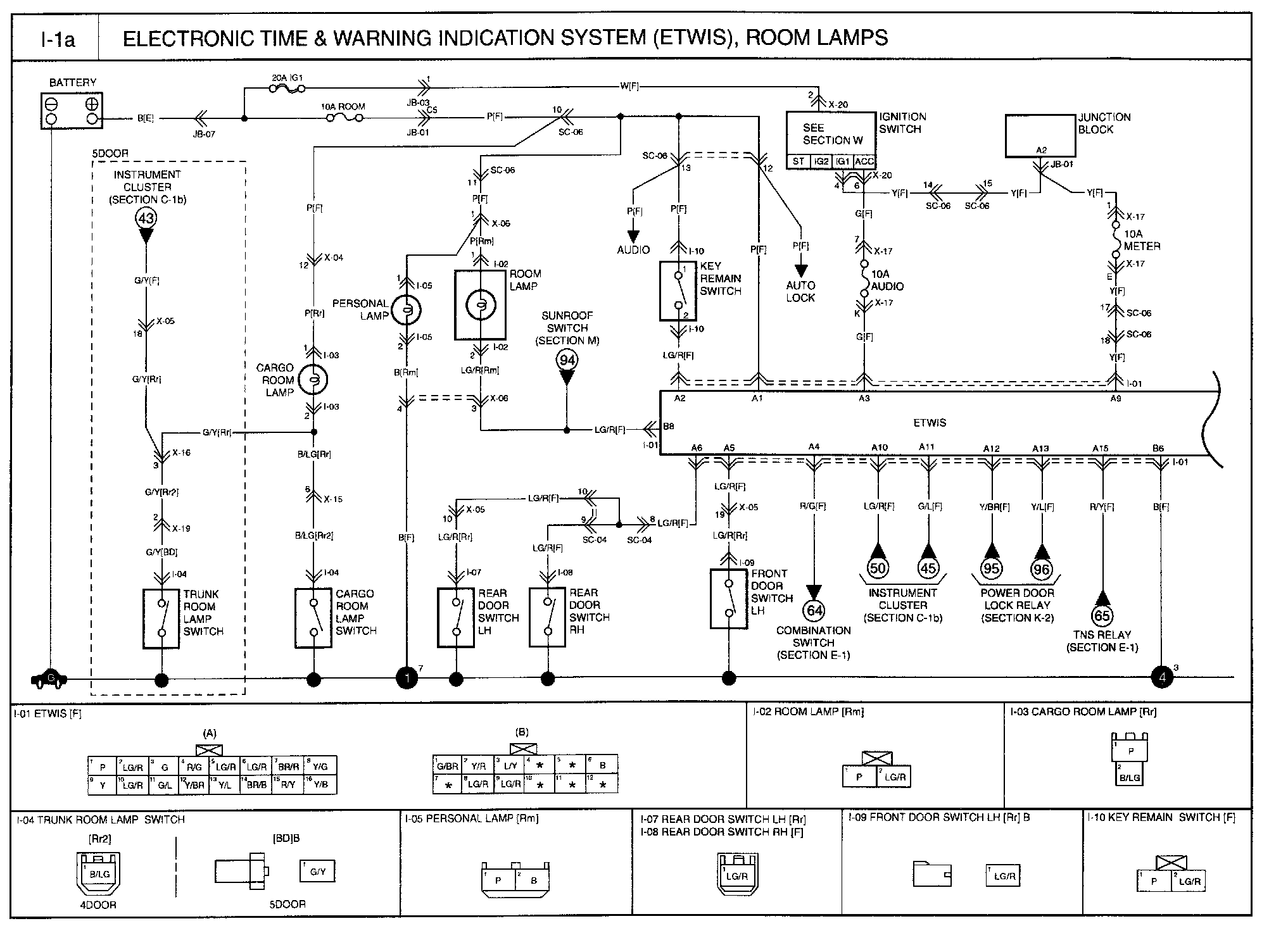

I-1a - Electronic Time & Warning Indication System (ETWIS), Room Lamps Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
