Home >> Kia >> 2002 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module >> Terminal Identification

Terminal Identification

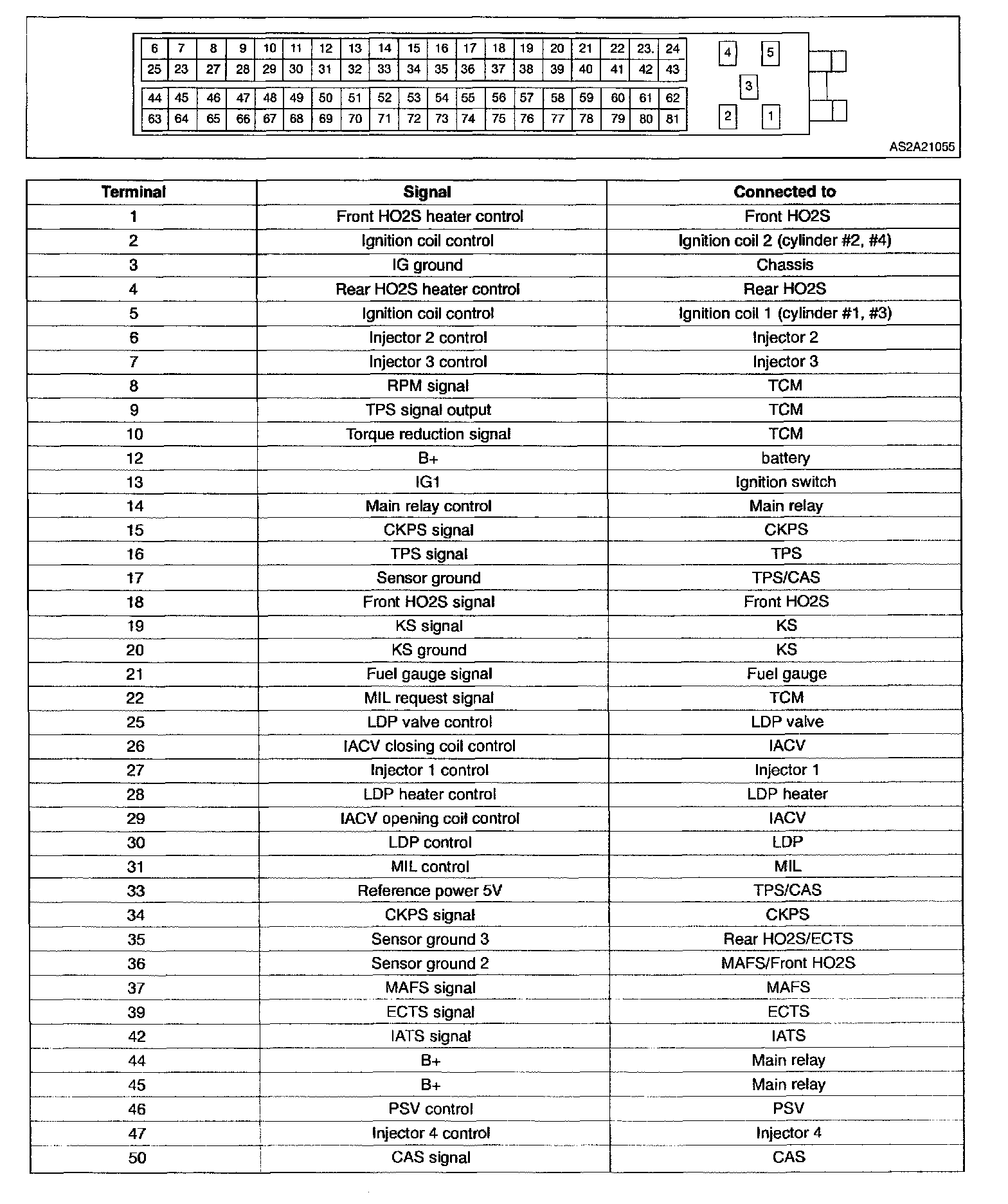

ECM Terminal Layout/Pinouts Part 1:

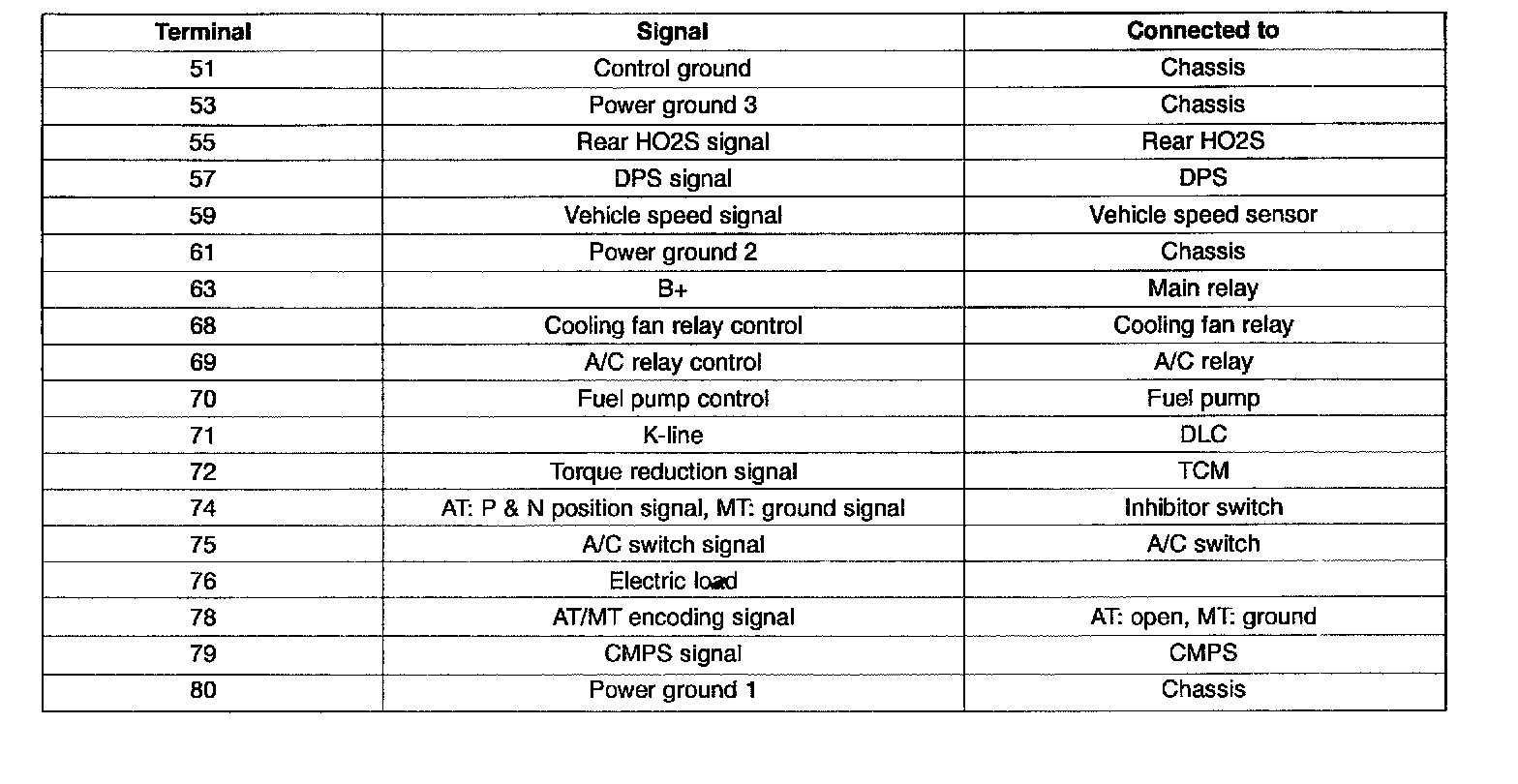

Pinouts Part 2:
