Connector Views

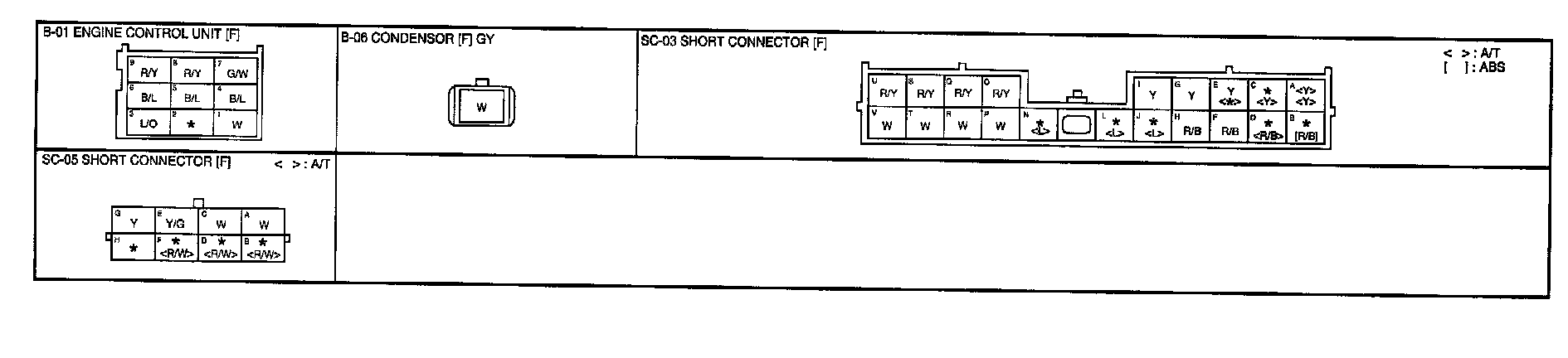

B-1a Engine Control System Connectors:

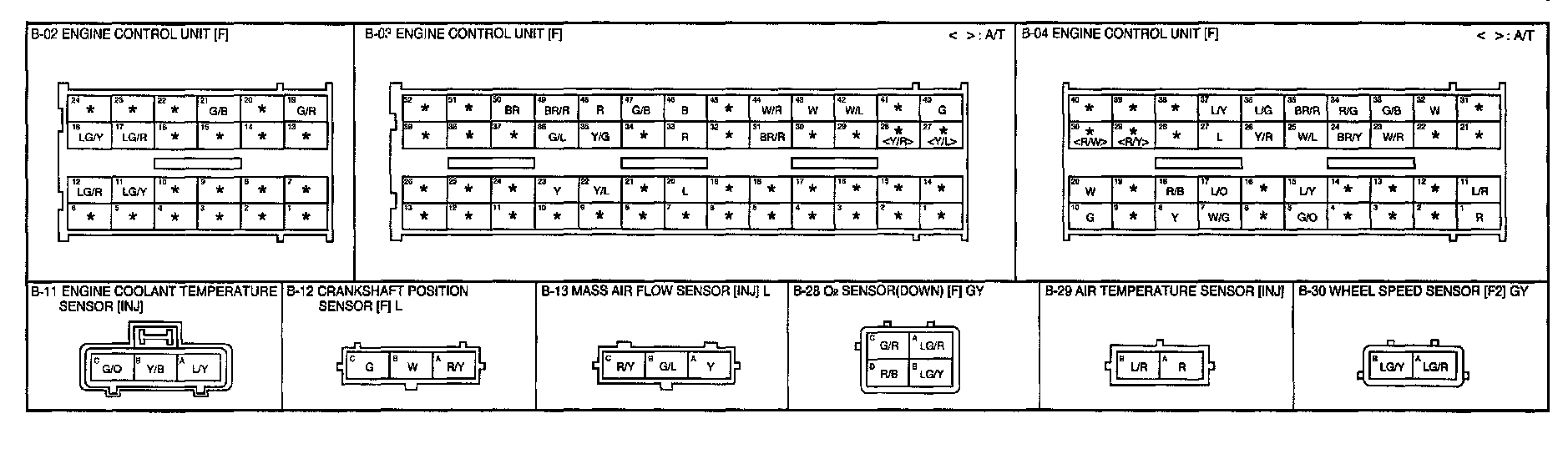

B-1b Engine Control System Connectors:

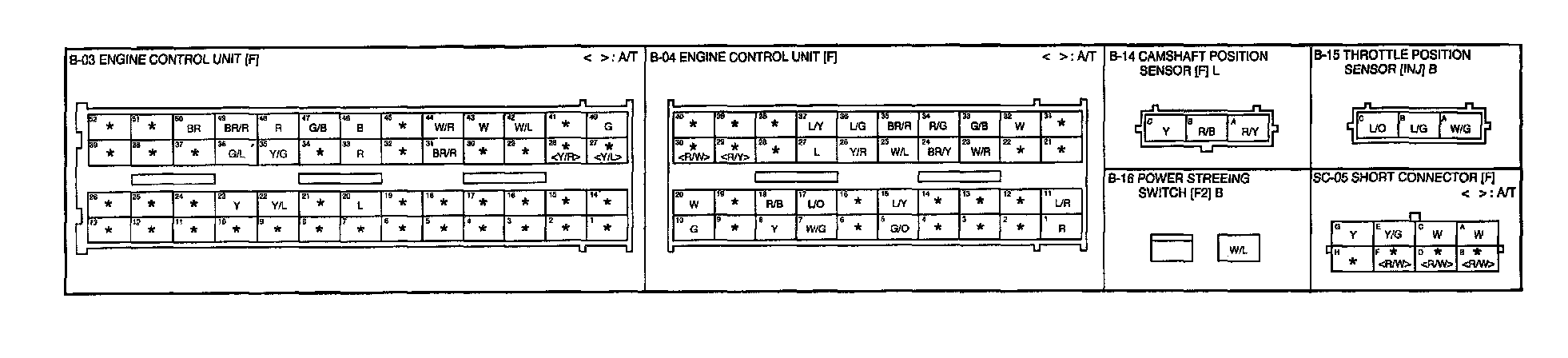

B-1c Engine Control System Connector:

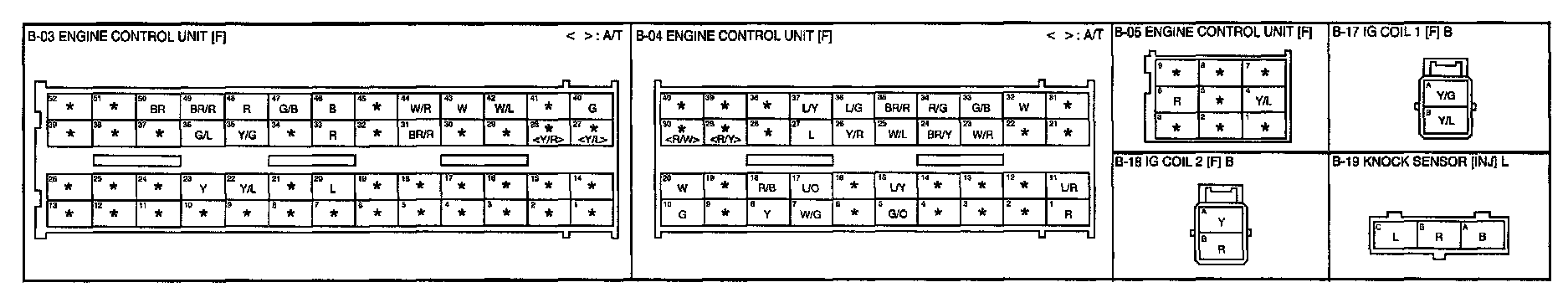

B-1d Engine Control System Connector:

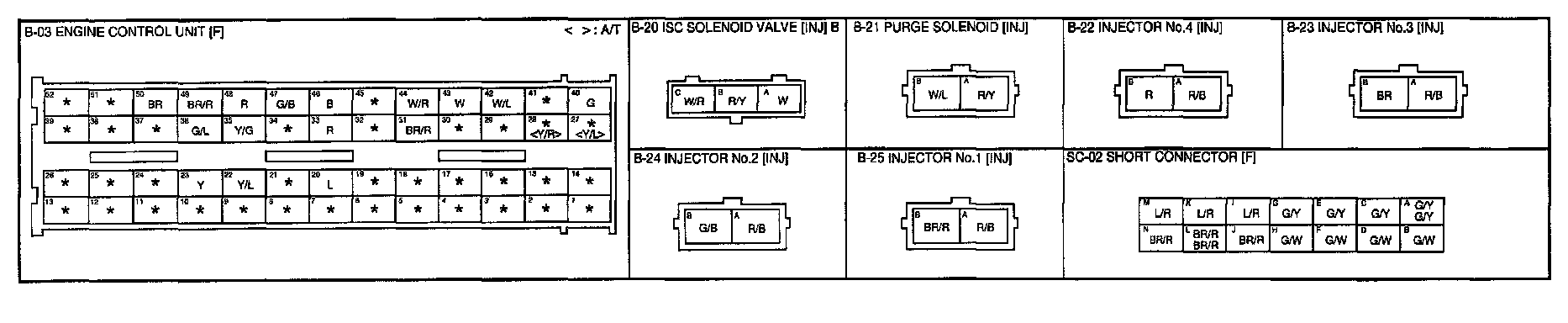

B-1e Engine Control System Connector:

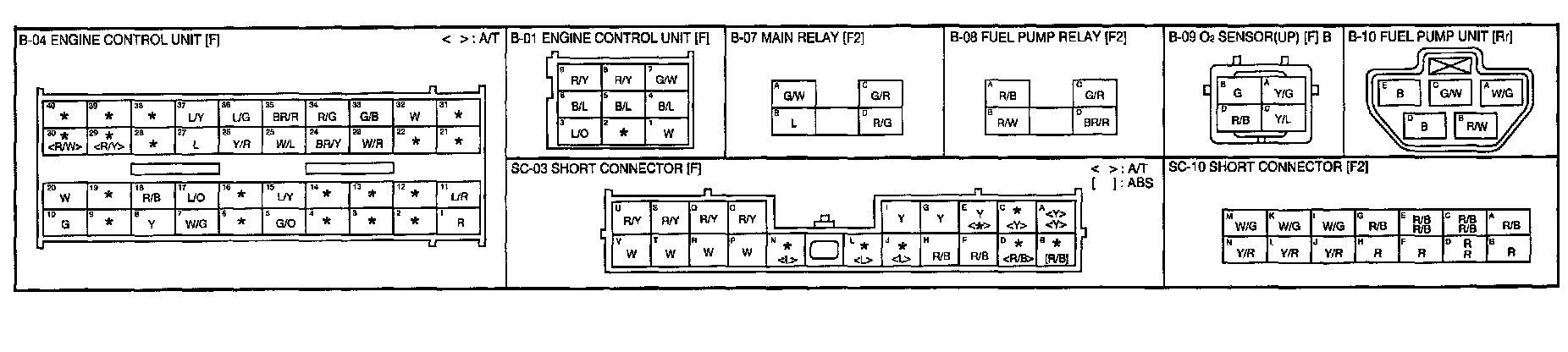

B-1f Engine Control System Connector:
