System Relay: Testing and Inspection

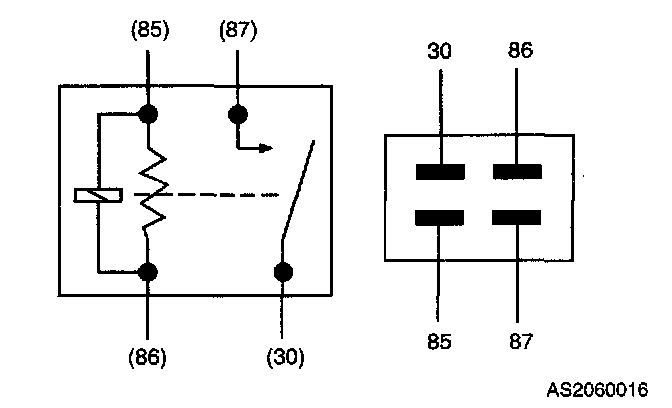

A/C relay


1. Disconnect A/C relay connector.

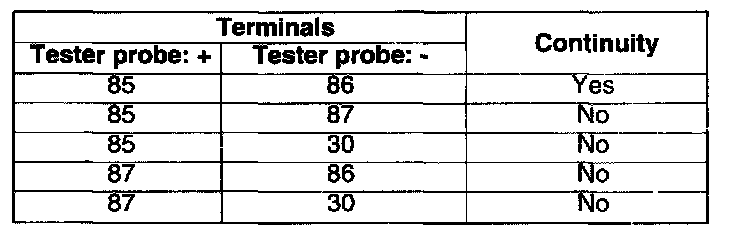

2. Check continuity between terminals.
3. If not as specified, replace relay.
4. If correct, go to next step.

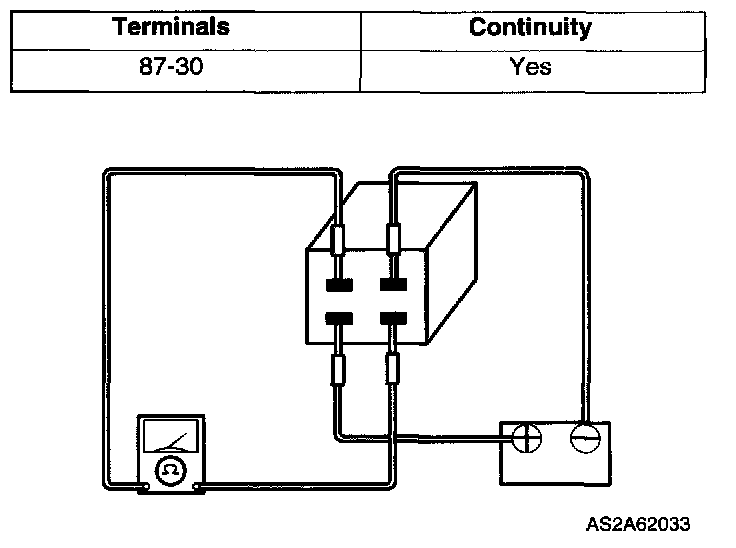

5. Apply 12 V to terminal 85 and ground terminal 86.




6. Check for continuity between terminals 87 and 30.
7. If not as specified, replace relay.
