Engine Control Module

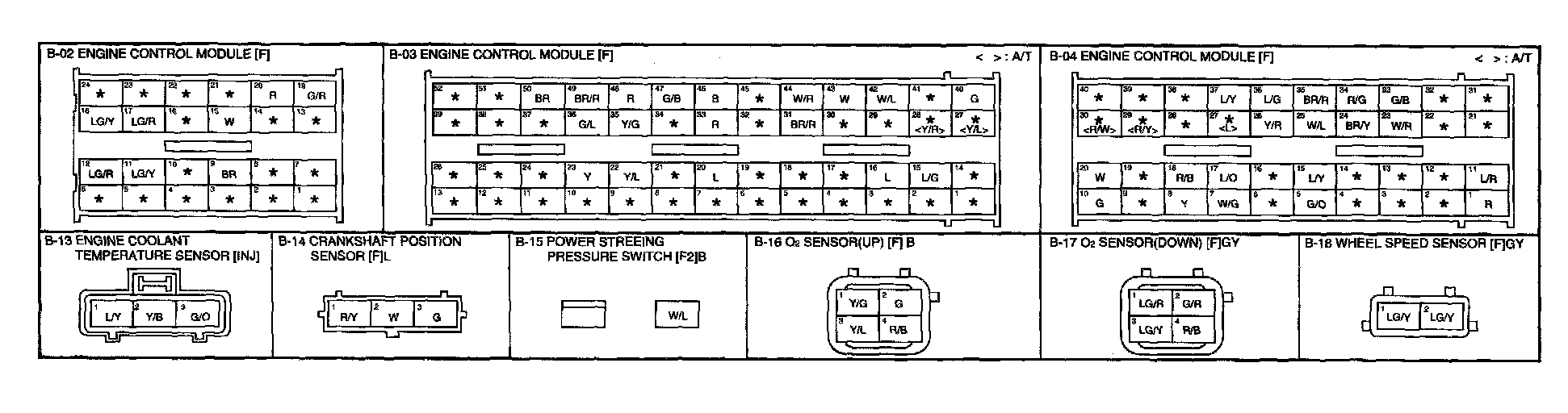

ECM Connector Views

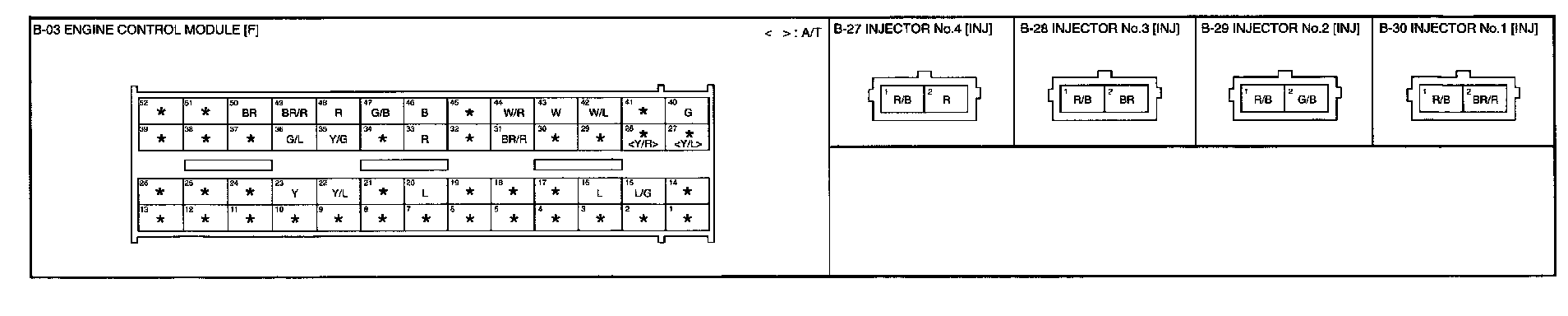

B-1a - Engine Control System Connectors:

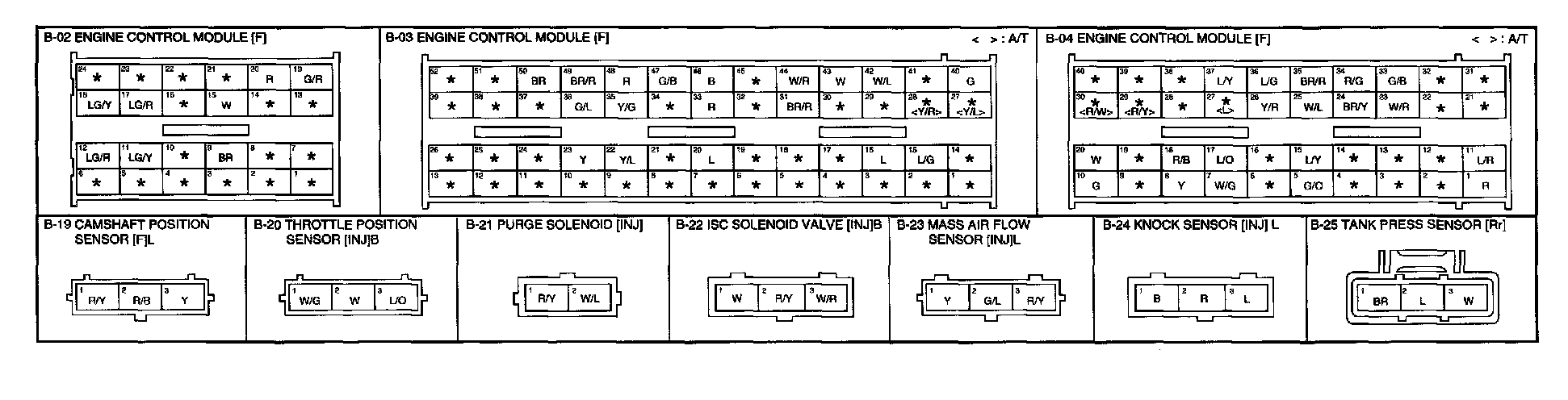

B-1b - Engine Control System Connectors:

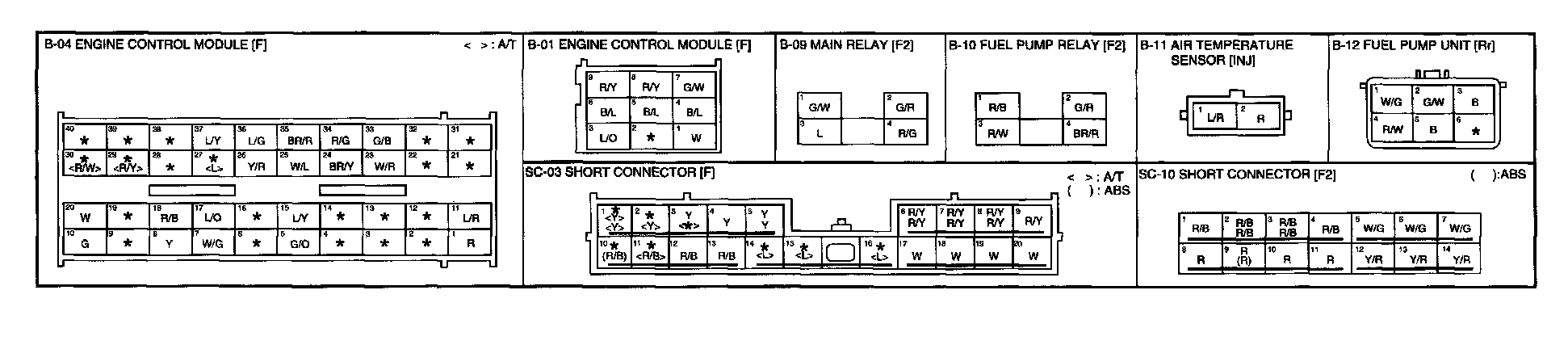

B-1c - Engine Control System Connectors:

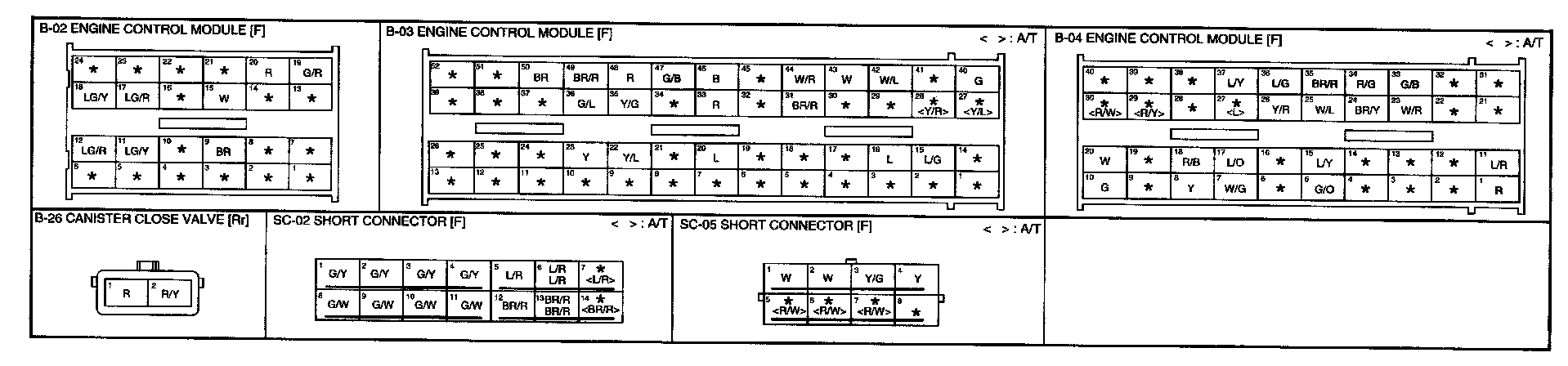

B-1d - Engine Control System Connectors:

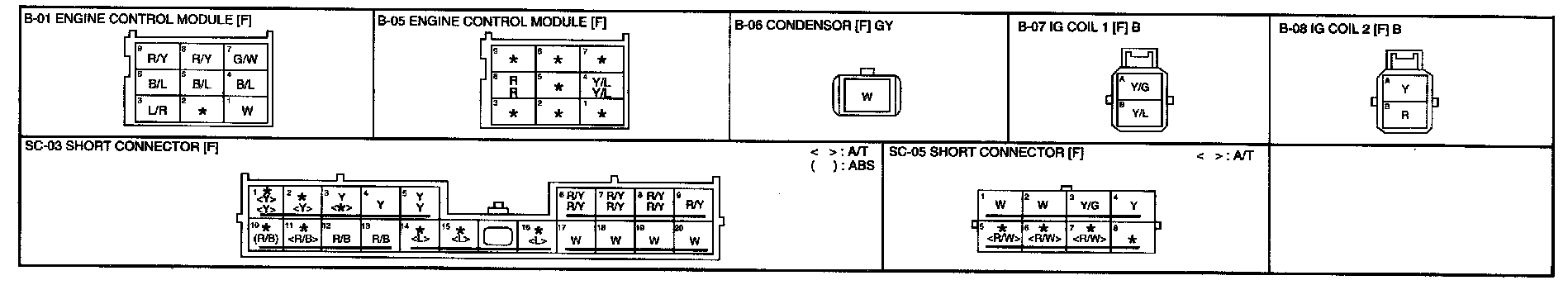

B-1e - Engine Control System Connectors:




B-1f - Engine Control System Connectors:

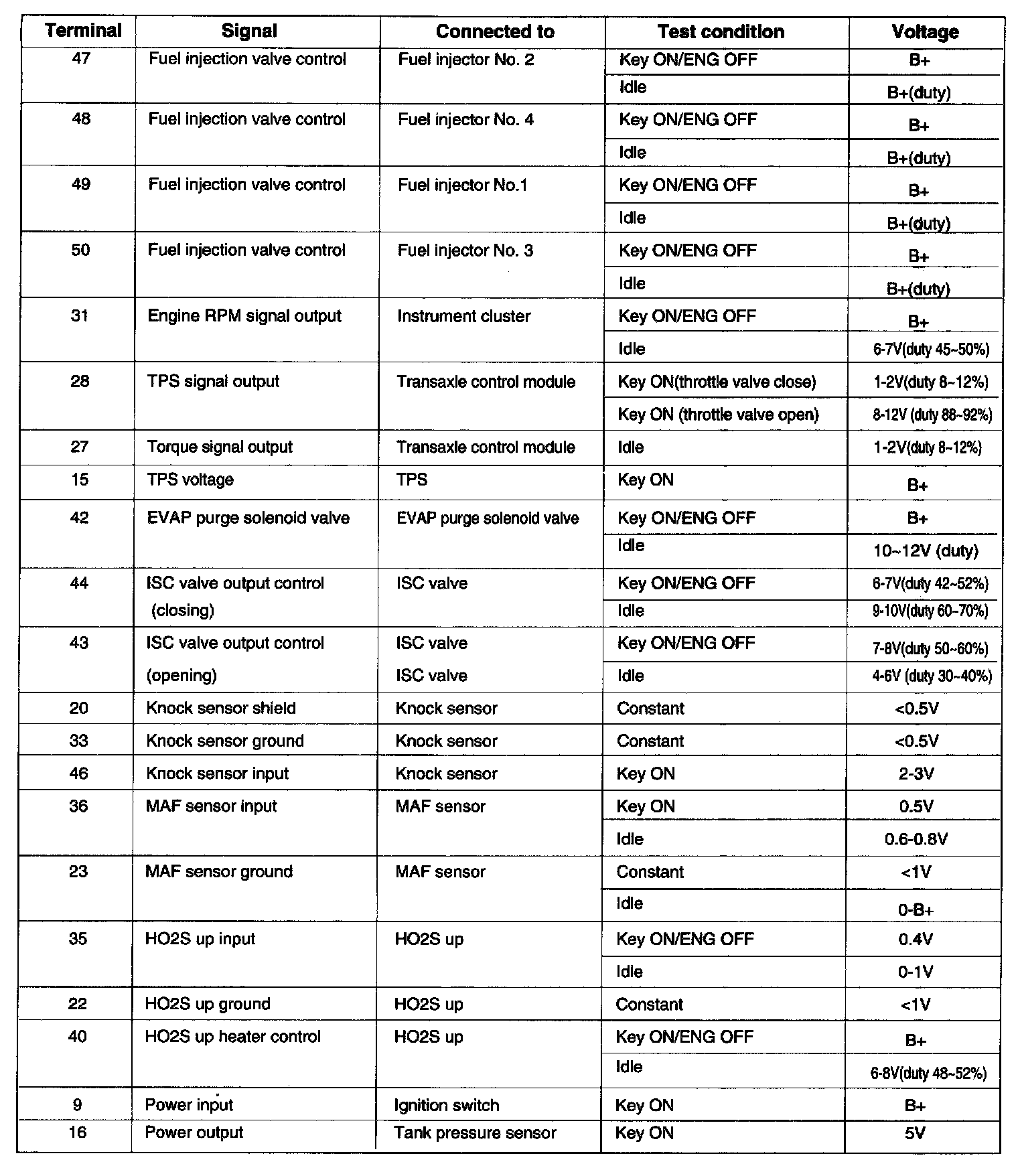

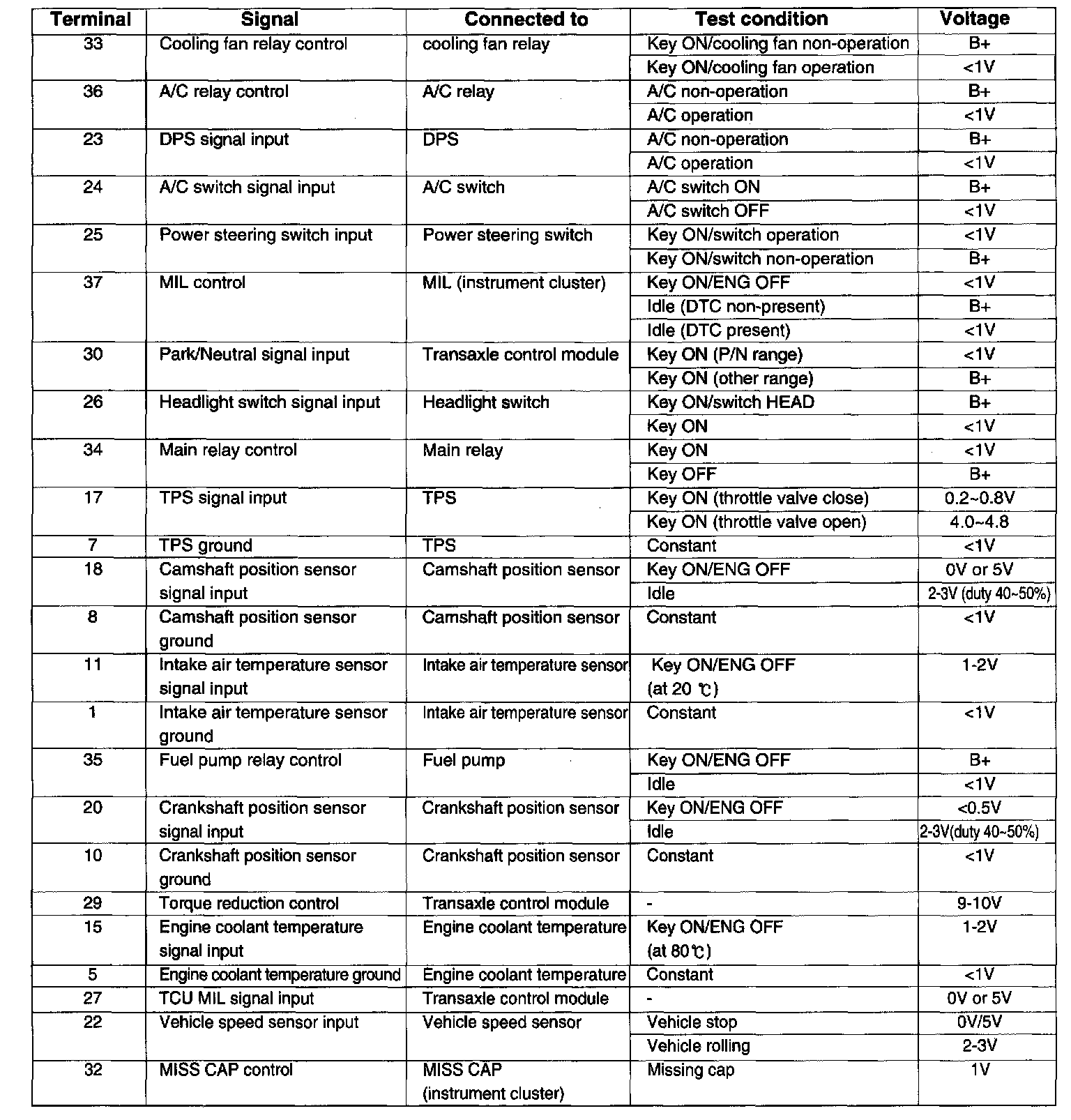

ECM Pinout Values

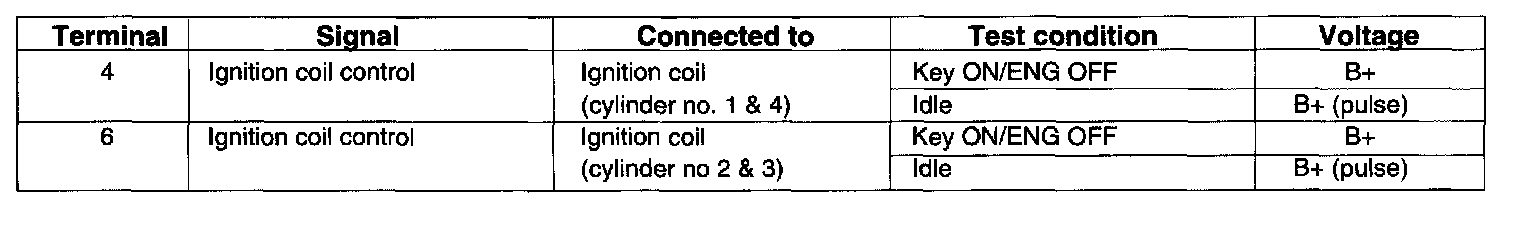

Connector B-01:

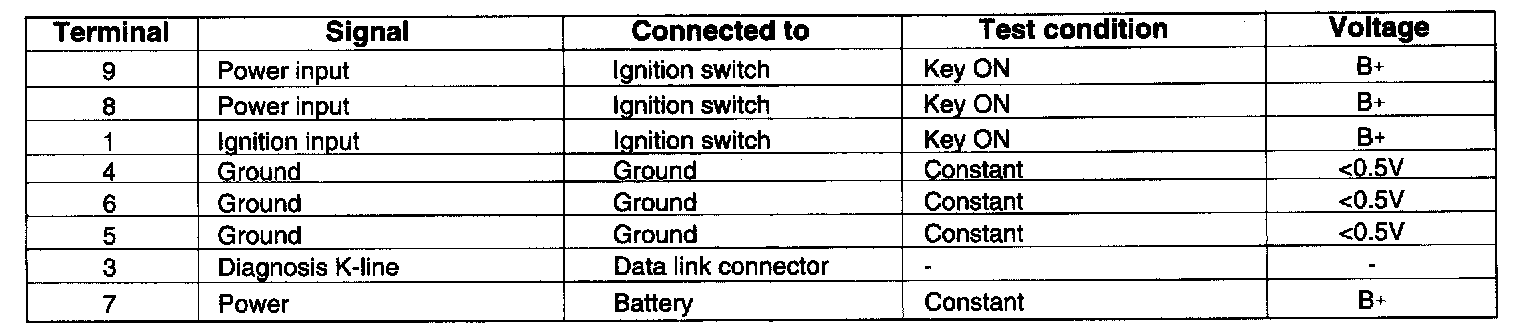

Connector B-02:

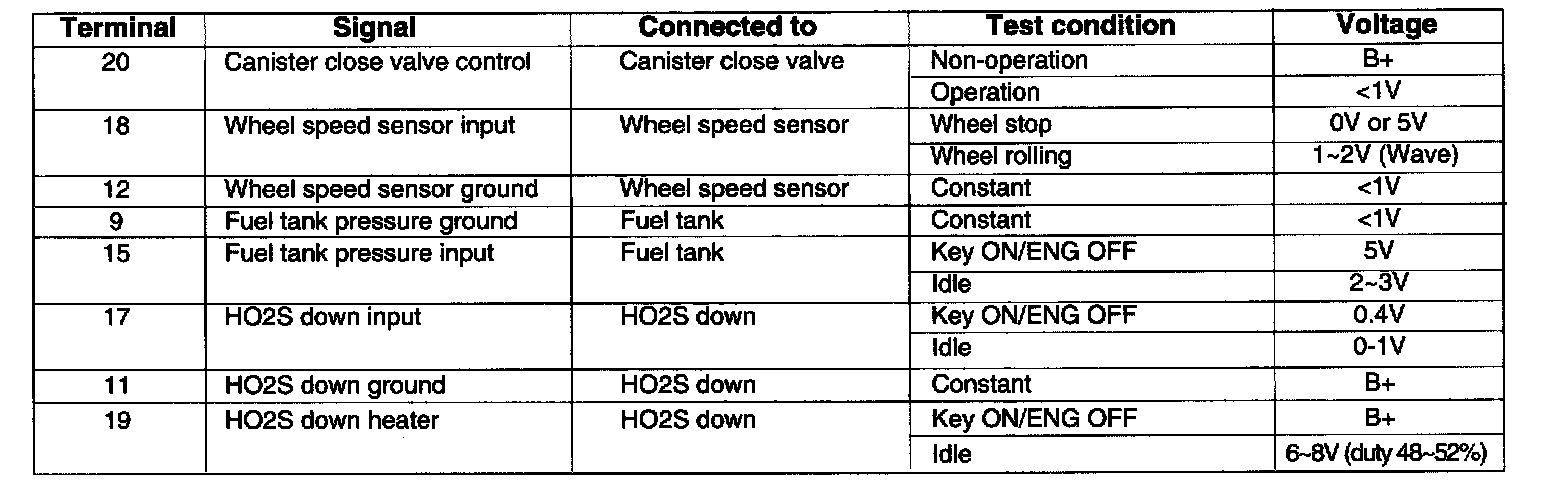

Connector B-03:




Connector B-04:




Connector B-05:
