Home >> Kia >> 2002 >> Optima SE V6-2.7L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Return Line

Fuel Return Line

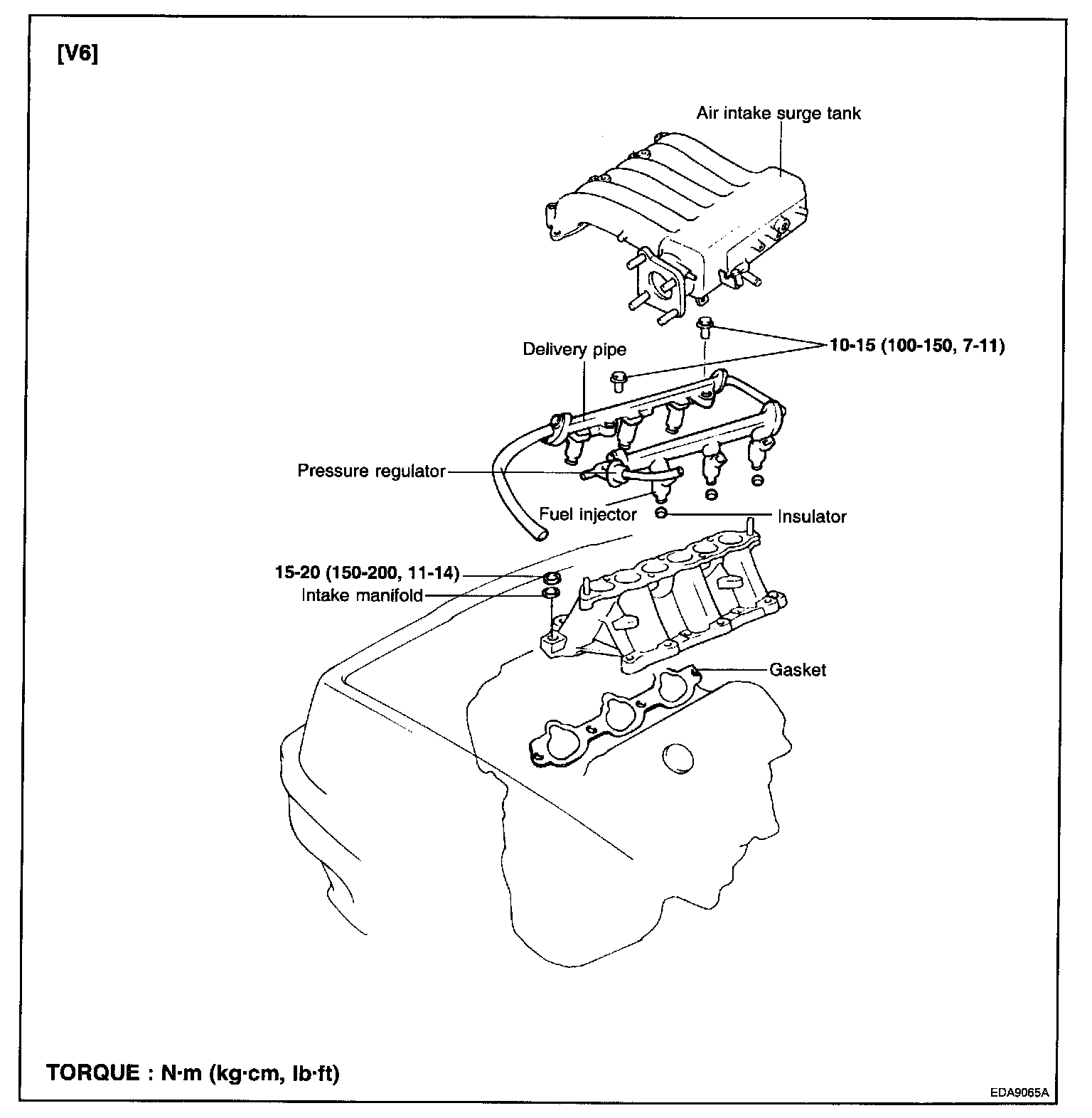

Components [V6]:



Fuel line And Vapor Line Components:
