Power Steering Pressure Switch: Testing and Inspection

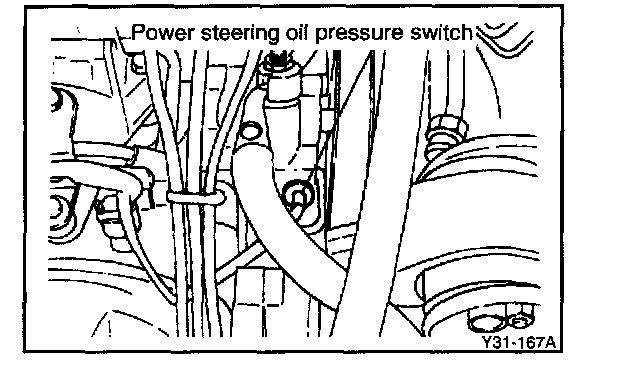

POWER STEERING PRESSURE (PSP) SWITCH [2.4 DOHC]
The power steering oil pressure switch senses the power steering load into low/high voltage and inputs it to ECM, which then controls the idle speed control motor based on this signal.

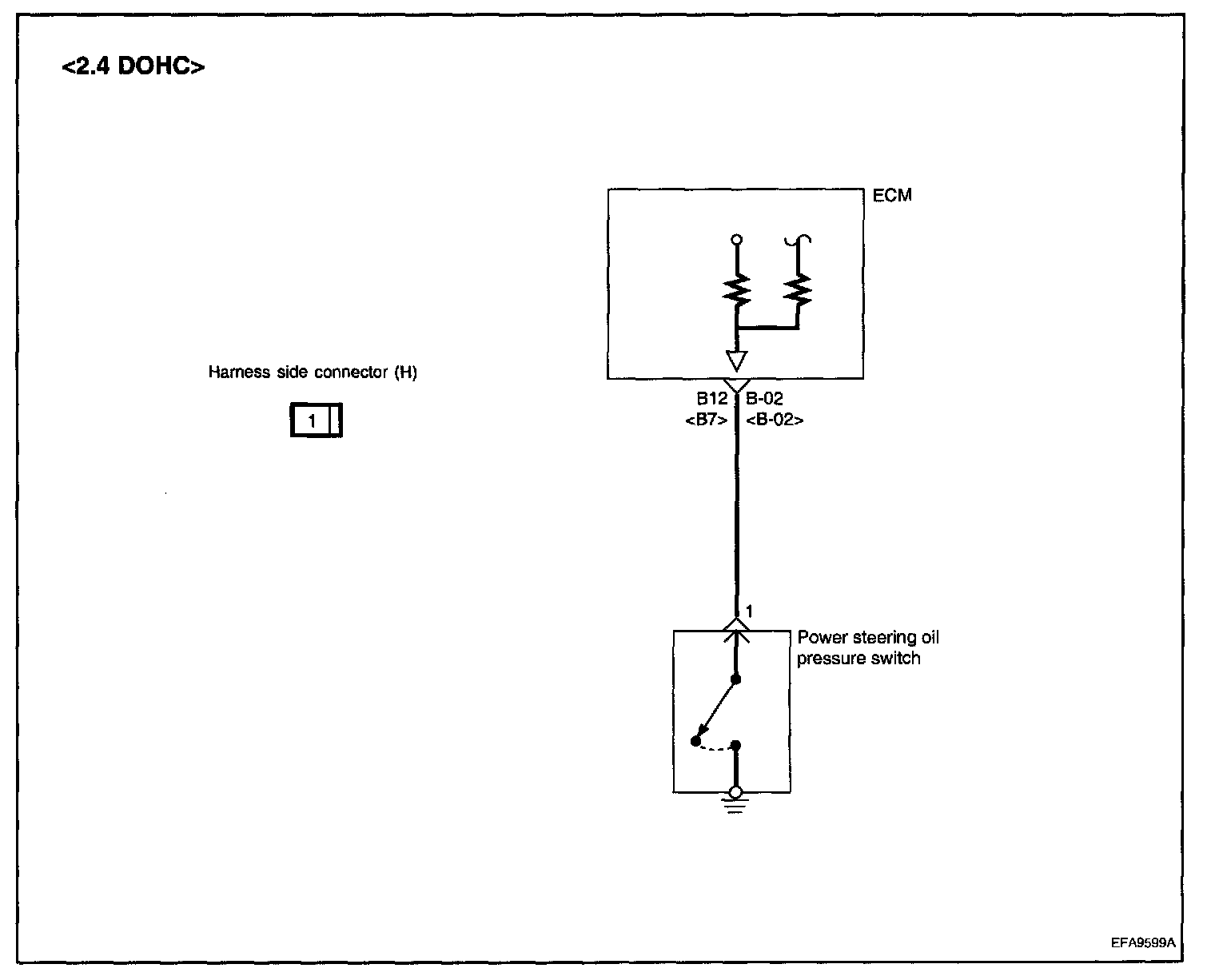

Circuit Diagram:

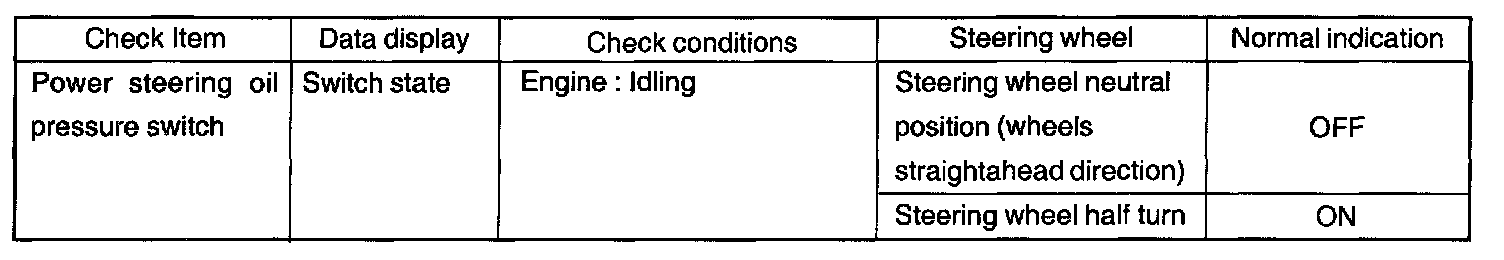

Using HI-Scan:

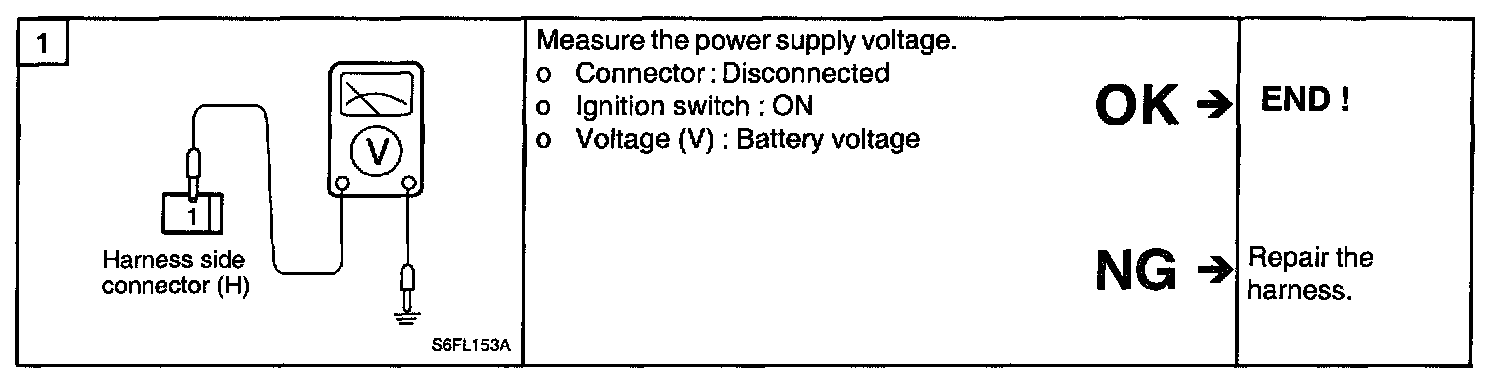

Harness Inspection:
