Home >> Kia >> 2002 >> Optima L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Testing and Inspection

Control Assembly: Testing and Inspection

MODE CONTROL SWITCH

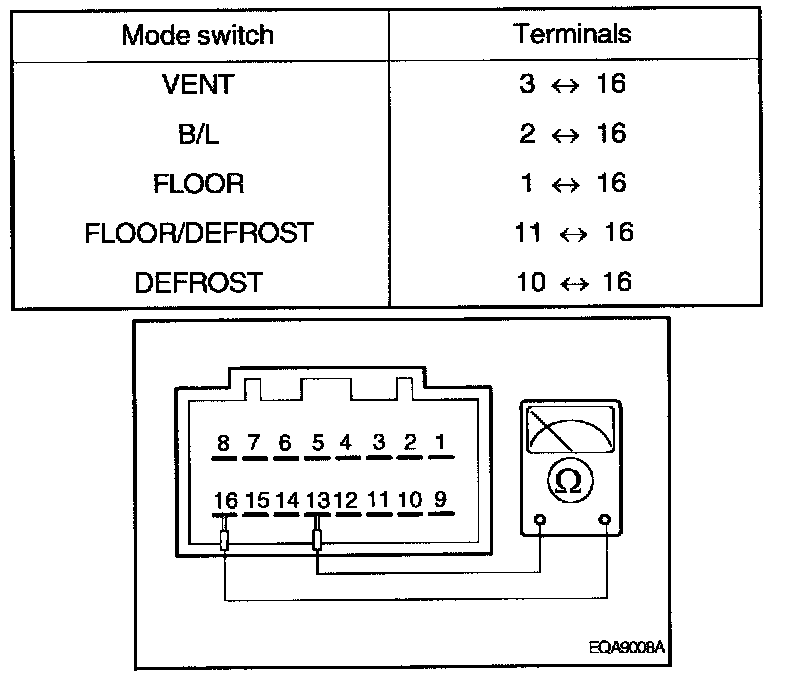

1. Check for continuity between terminals.




If continuity is not as specified, replace the control panel.
