Connector Locations

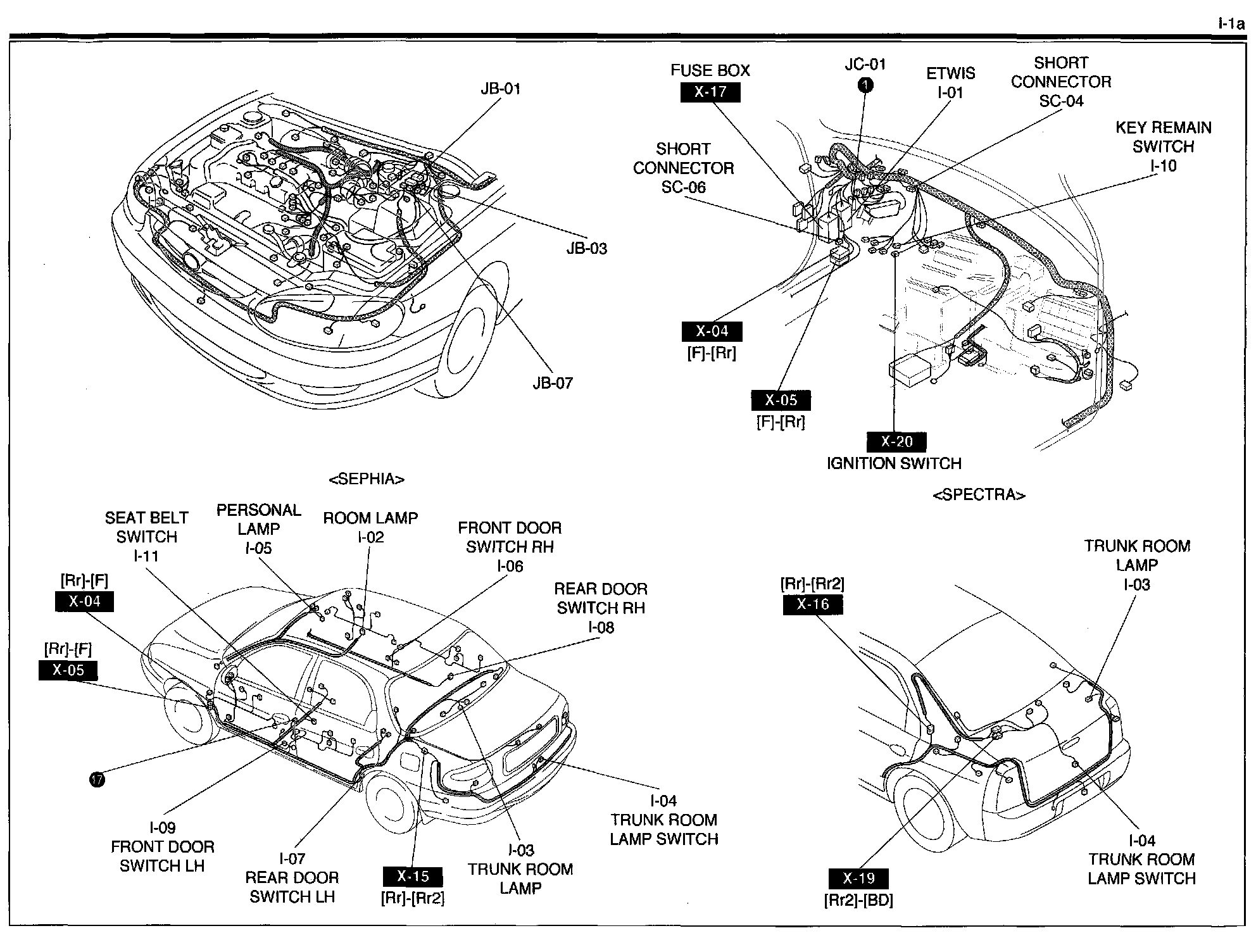

I-1a - Electronic Time & Warning Indication System (ETWIS), Room Lamps Harness/Connector Symbols:

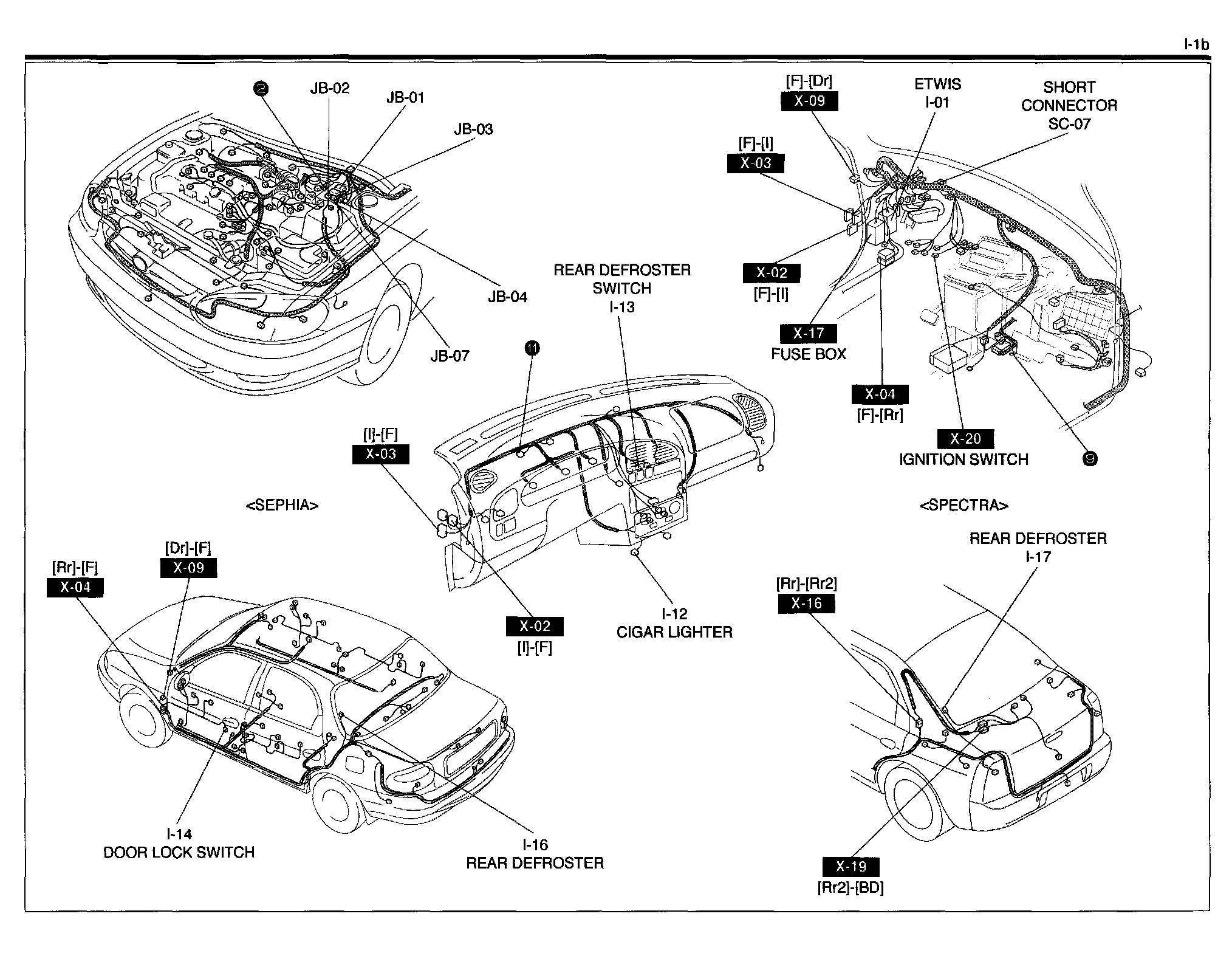

I-1b - Electronic Time & Warning Indication System (ETWS), Cigar Lighter, Rear Defroster Harness/Connector Symbols:
