Engine Control Module

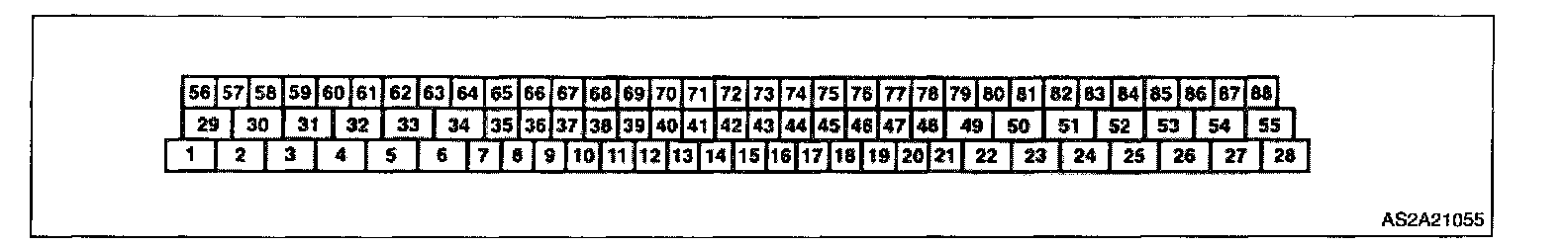

ECM Terminal Voltage (Reference) Pinouts:

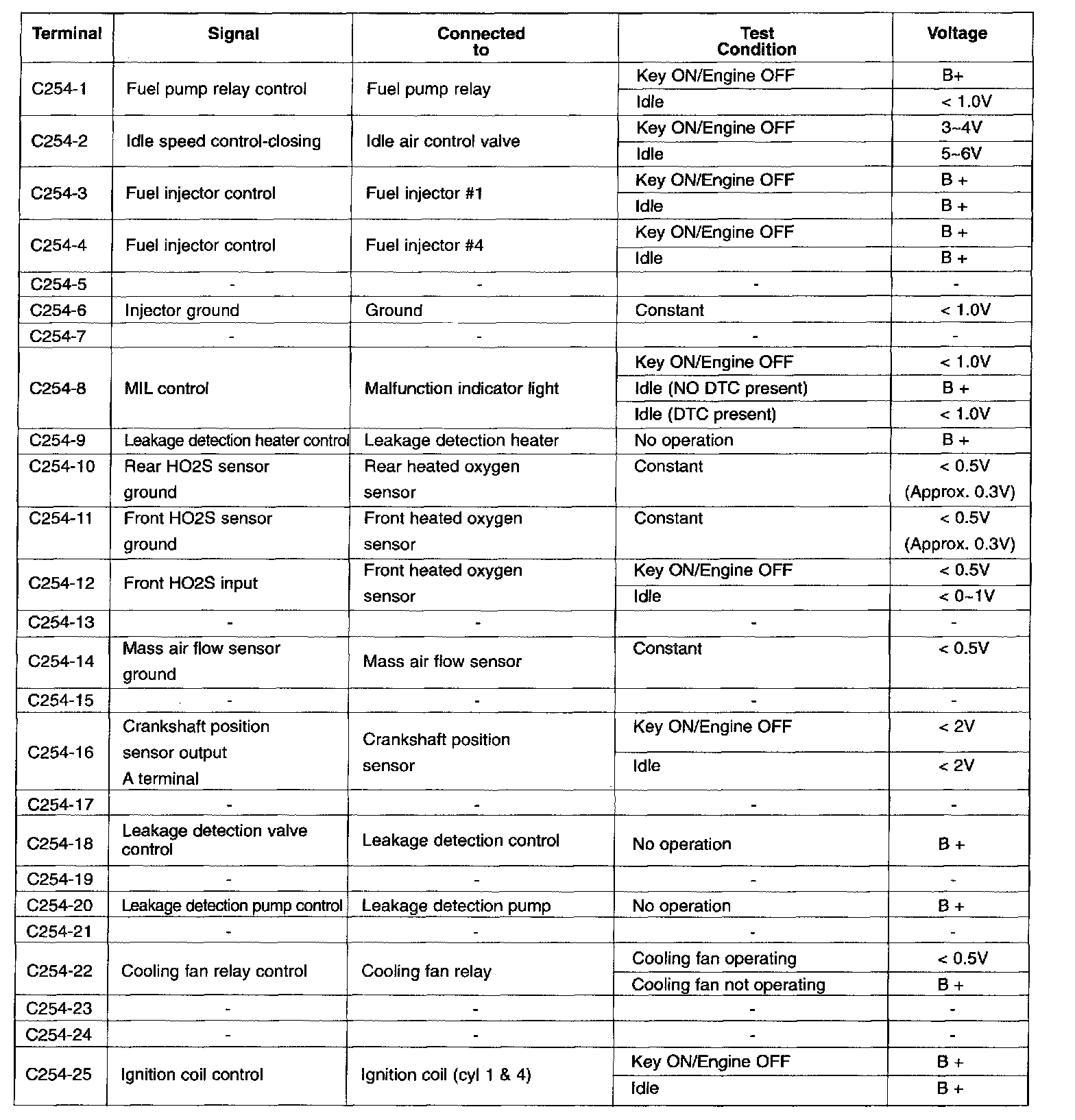

Terminals 1 - 25:

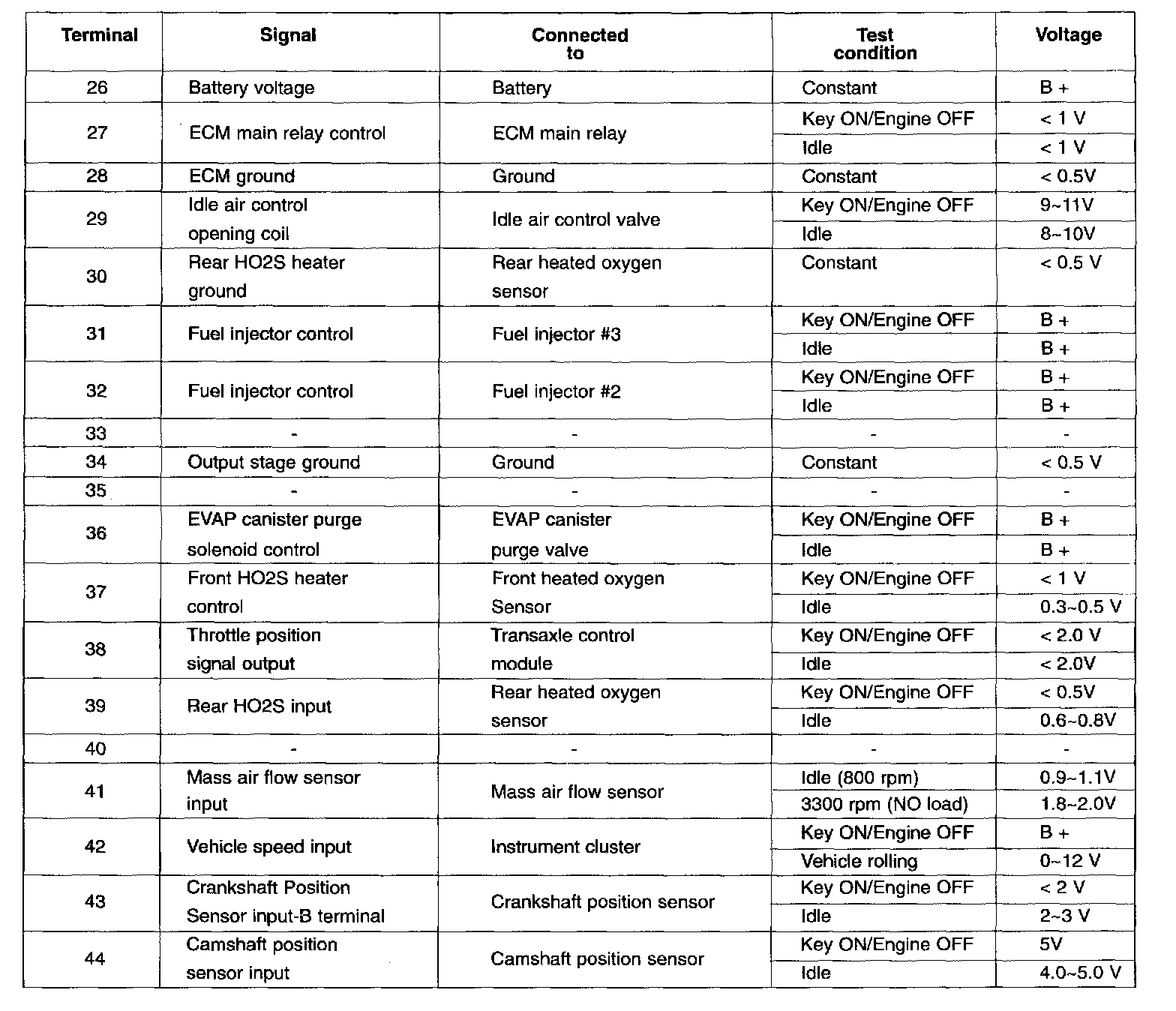

Terminals 26 - 44:

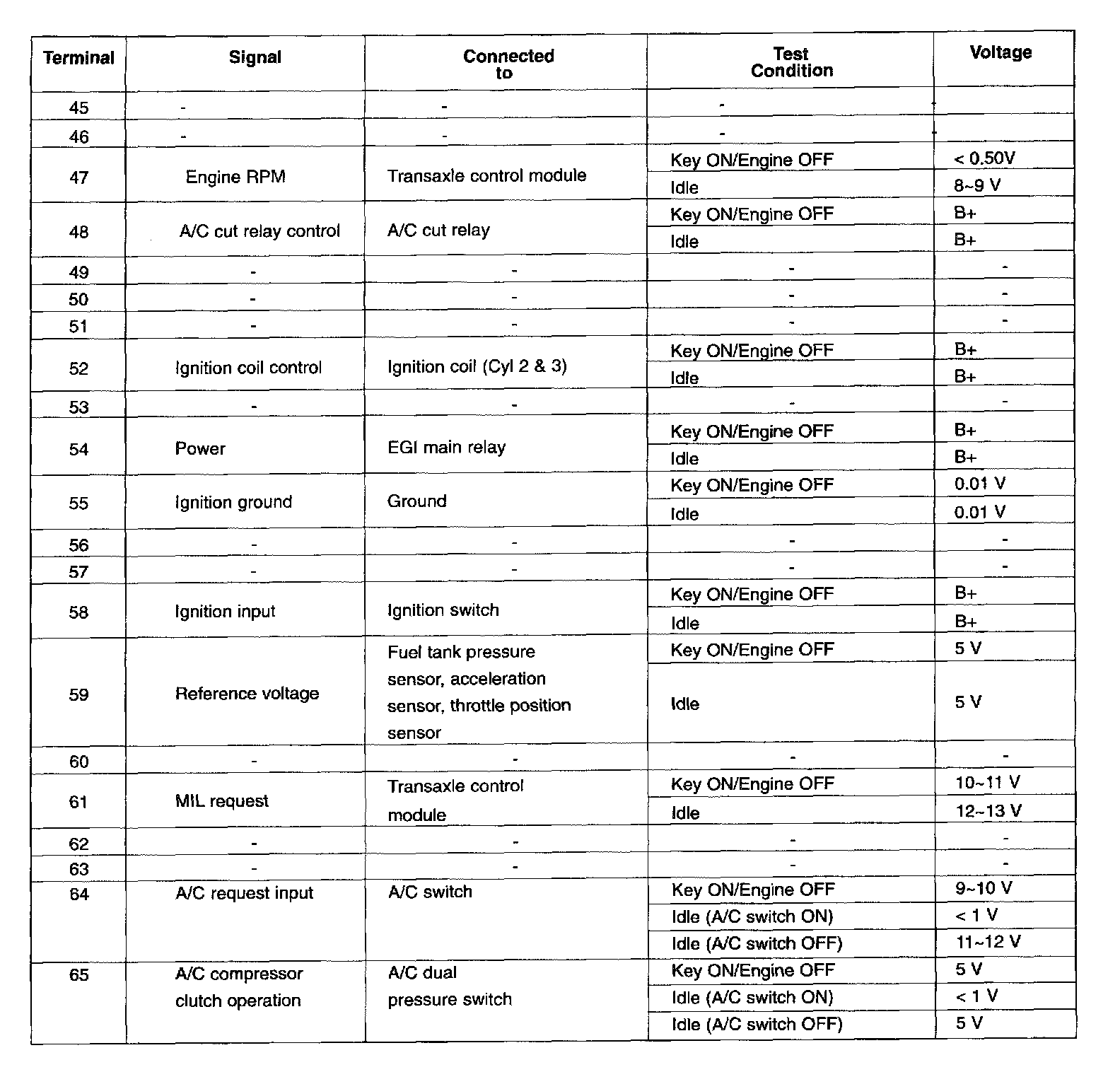

Terminals 45 - 65:

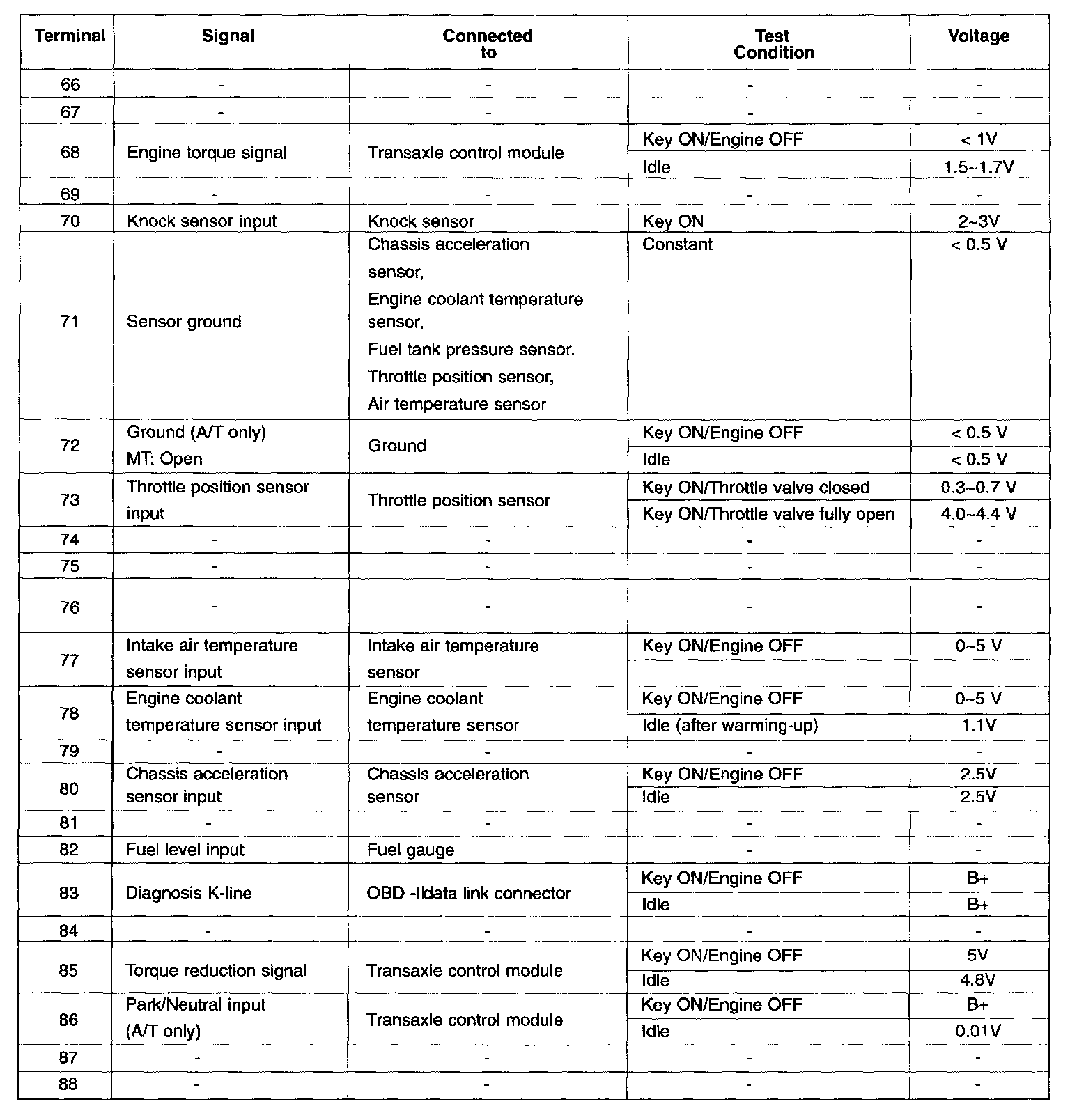

Terminals 66 - 88:
