Ignition Cable: Testing and Inspection

High-tension leads
1. Disconnect from coil and spark plugs.
2. Check for breaks in insulation.
3. Check inside high-tension lead connectors for corrosion or carbon deposits.

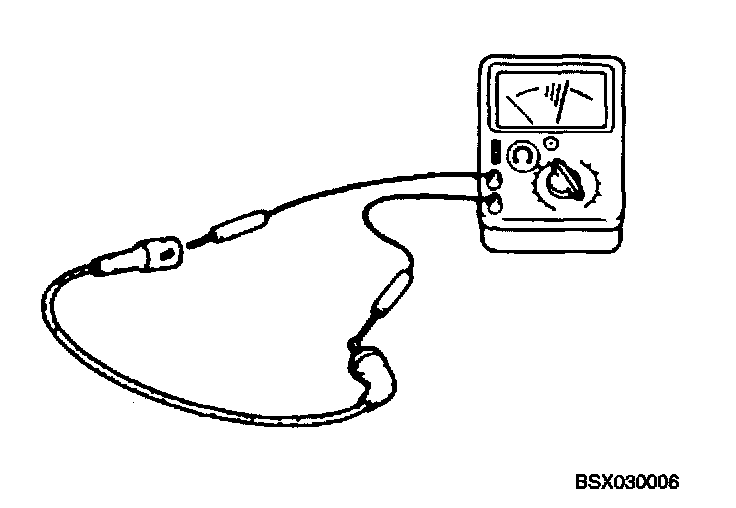

4. Connect high-tension lead to an ohmmeter and check resistance.




Resistance: 16 kOhms per 3.28 feet (1 m)

5. Replace if defective.
