Home >> Kia >> 2001 >> Rio L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams

Data Link Connector: Diagrams

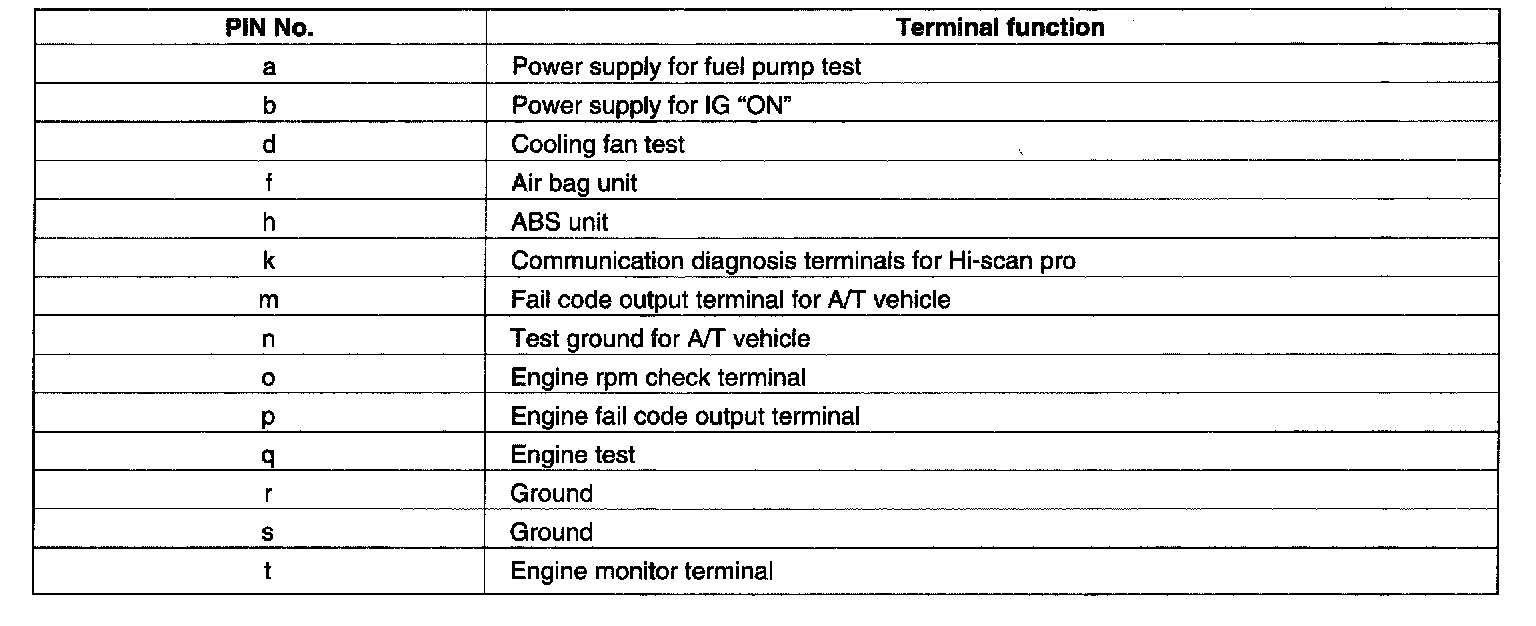

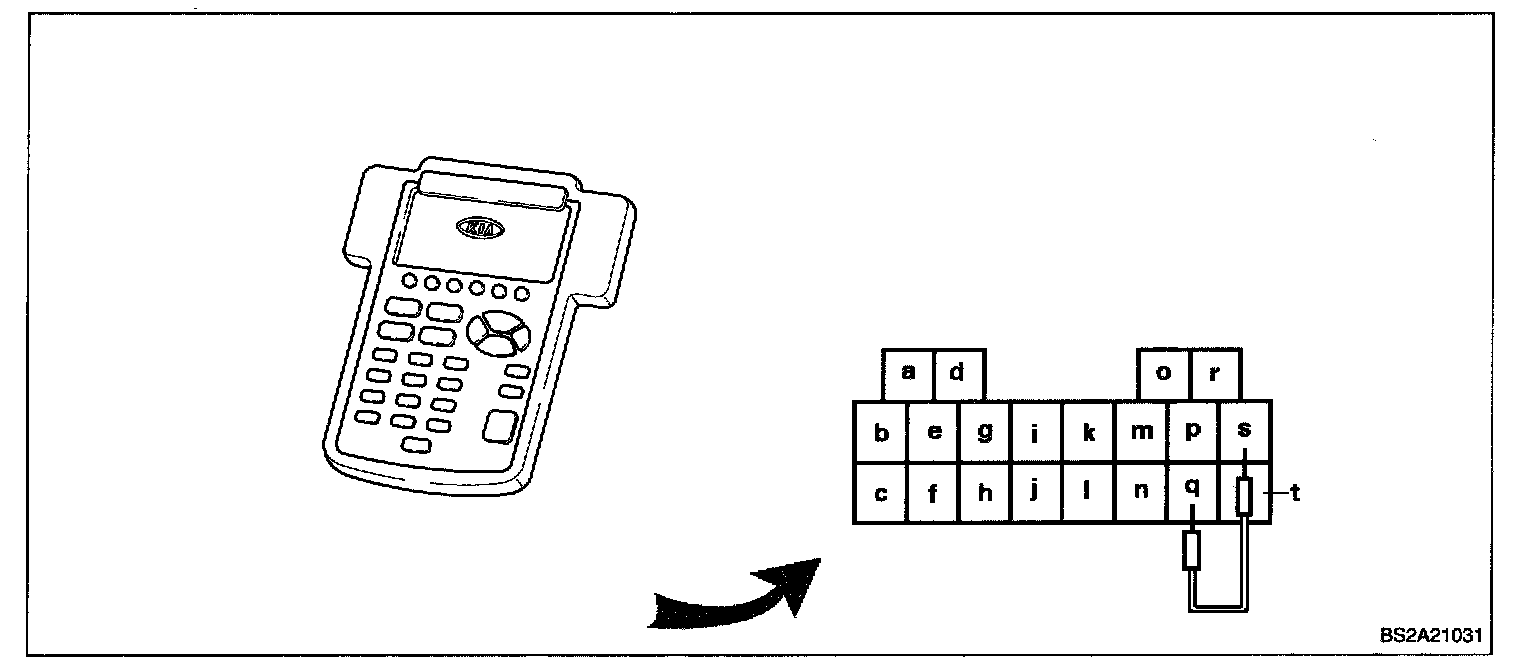

Data Link Connector 20 Pin Layout:
