Cruise Control Module: Testing and Inspection

Inspection
Cruise Control Unit

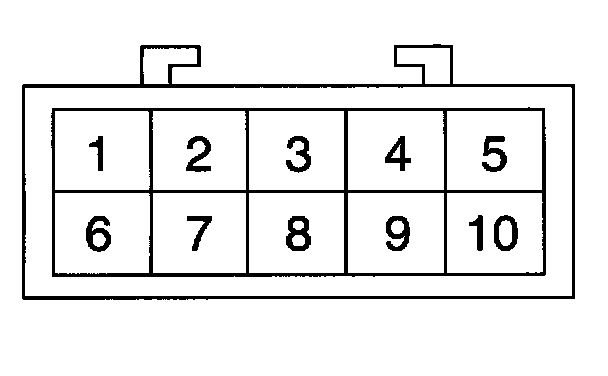

1. Connect a voltmeter between cruise control unit terminals and ground. (Connector C214 connected.)

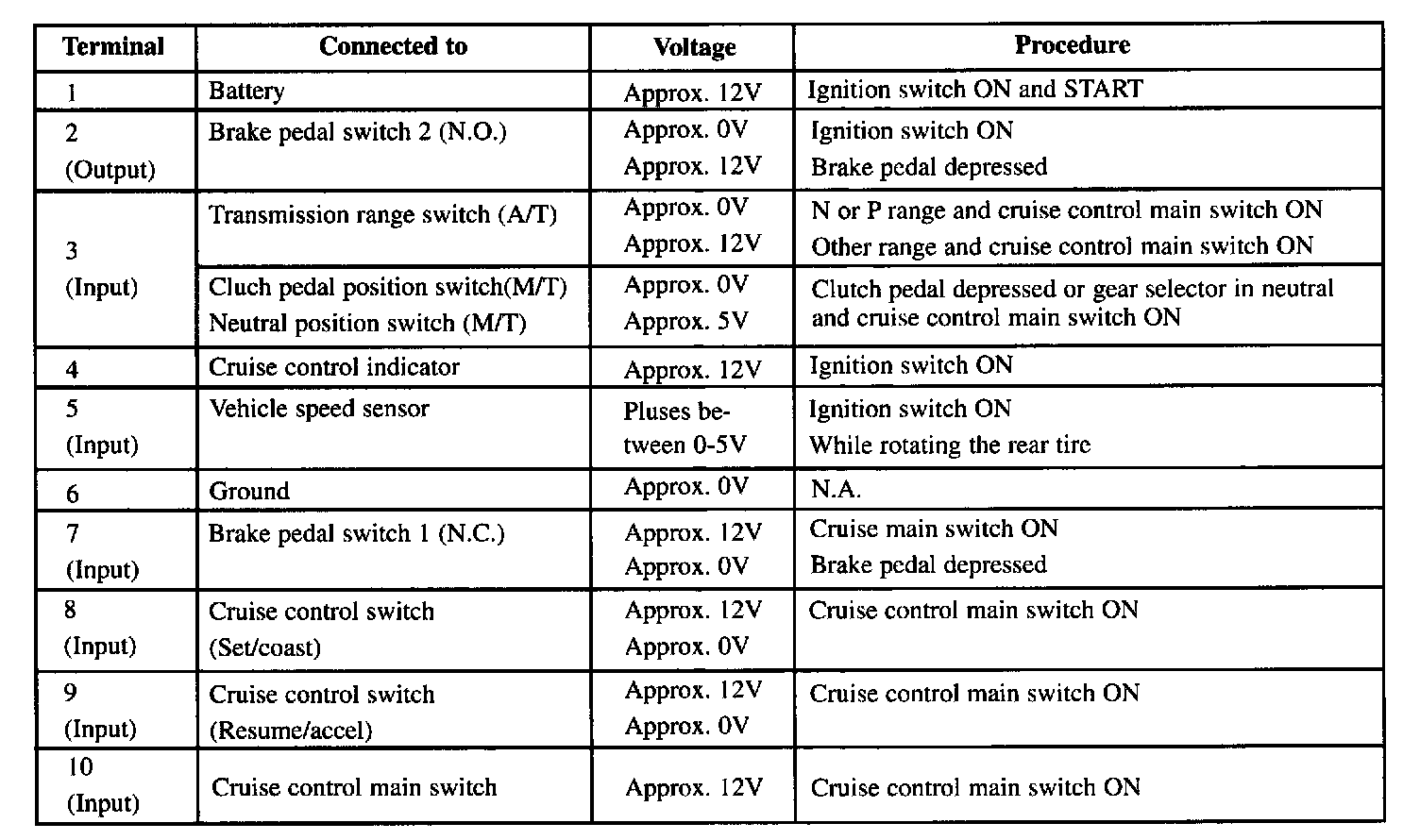

2. Turn ignition switch "ON" and check that terminal voltages are as described.
