Home >> Kia >> 2000 >> Spectra GSX L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

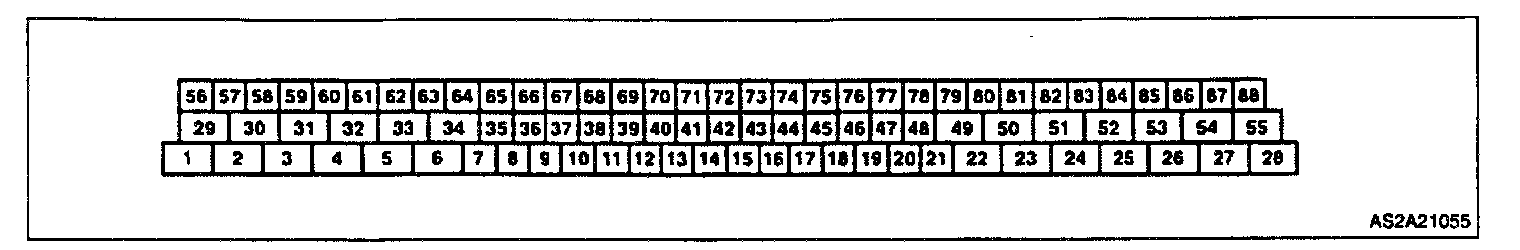

ECM Terminal:

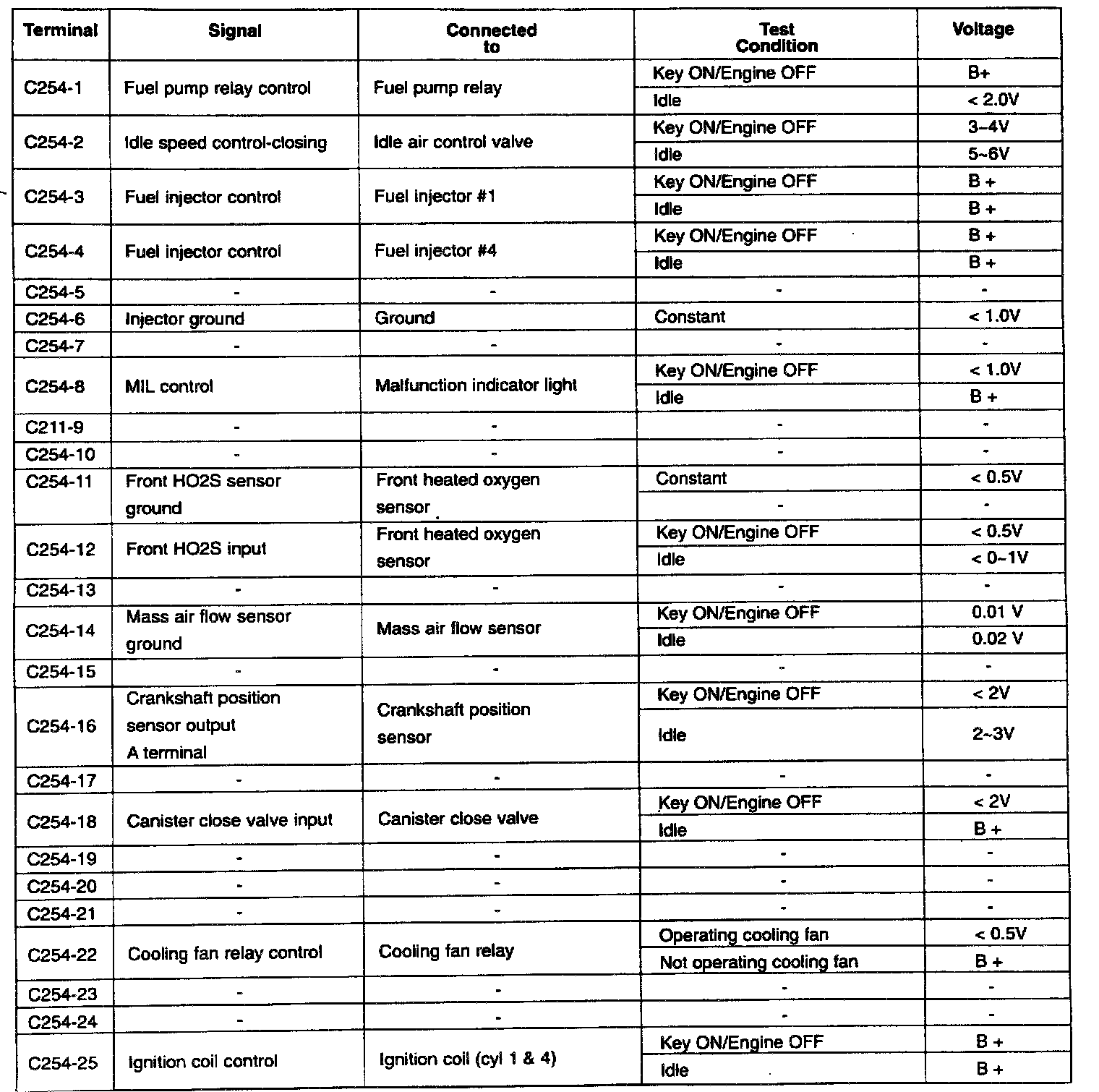

ECM Terminal Voltage Reference Table (Part 1 Of 4):

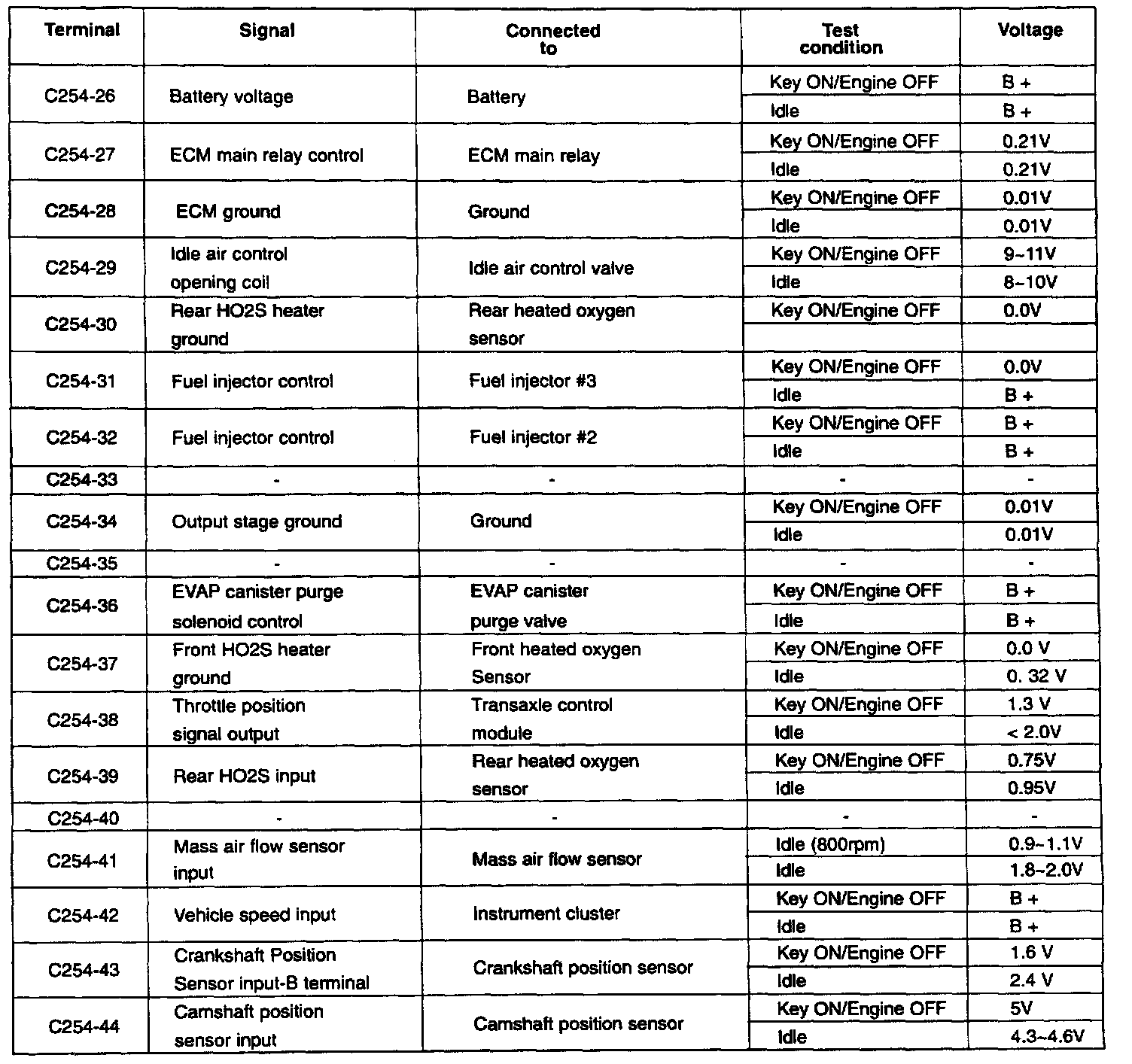

ECM Terminal Voltage Reference Table (Part 2 Of 4):

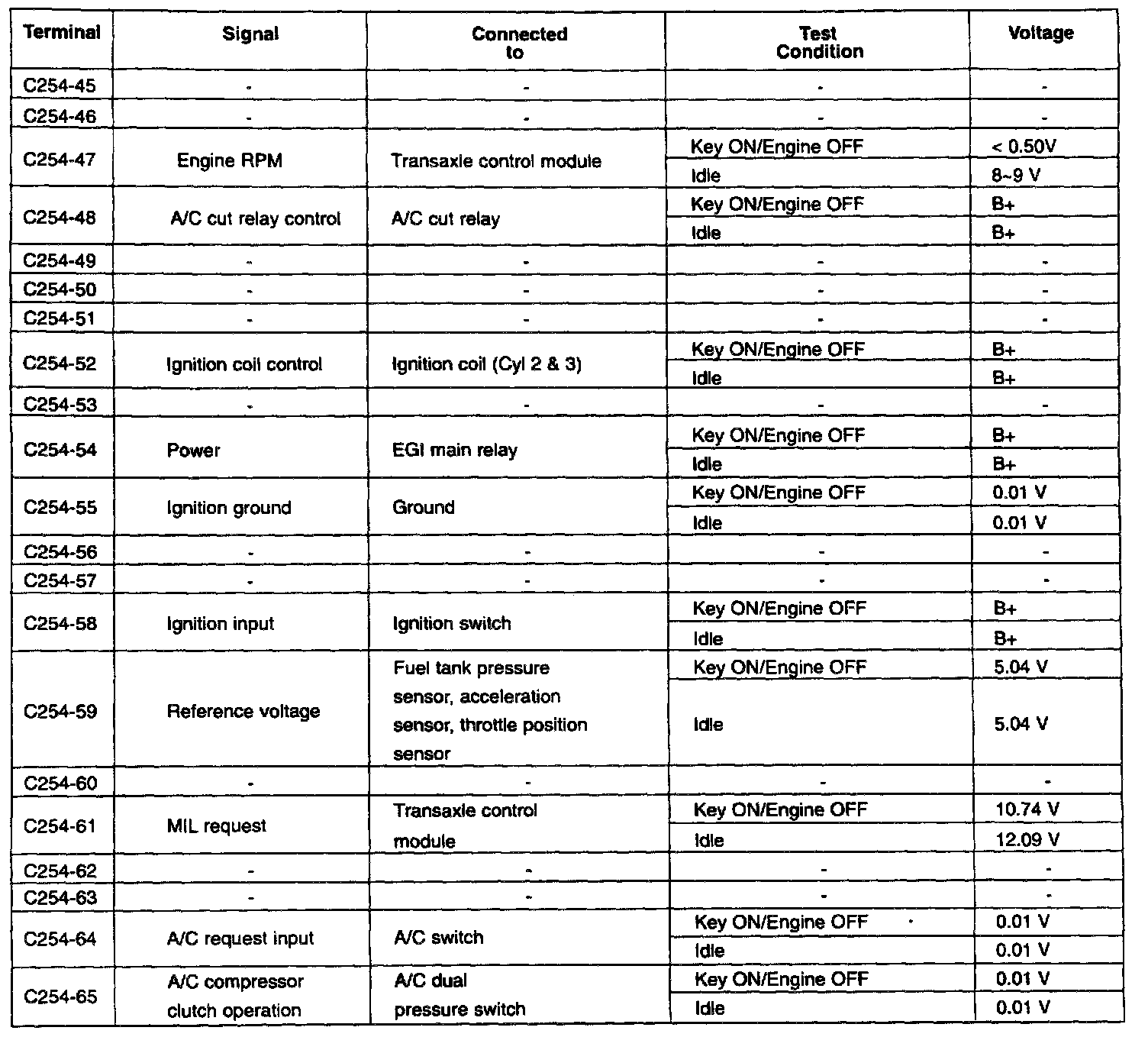

ECM Terminal Voltage Reference Table (Part 3 Of 4):

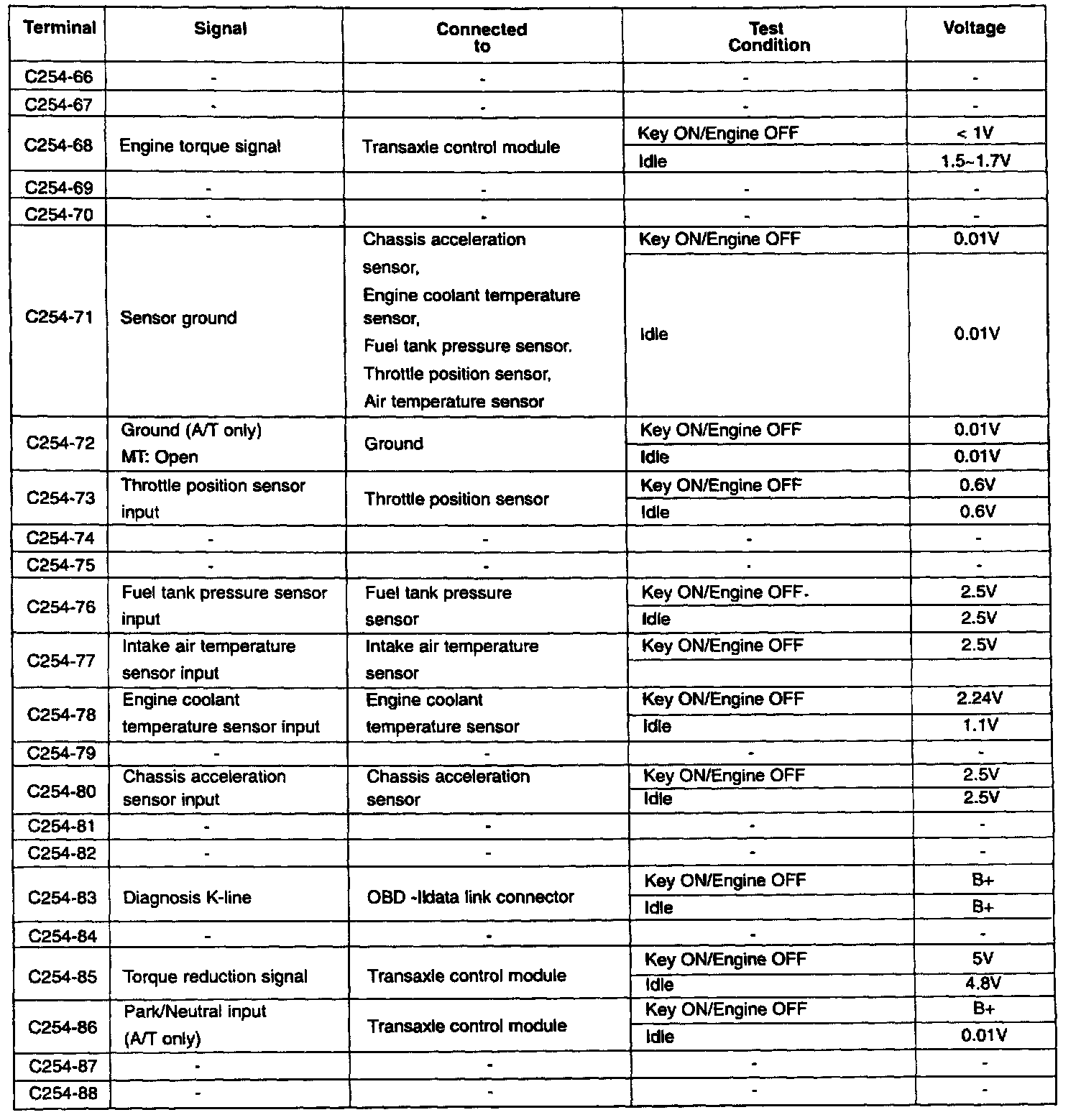

ECM Terminal Voltage Reference Table (Part 4 Of 4):
