Wheel Alignment
WHEEL ALIGNMENT
NOTE: Specifications are in degrees.

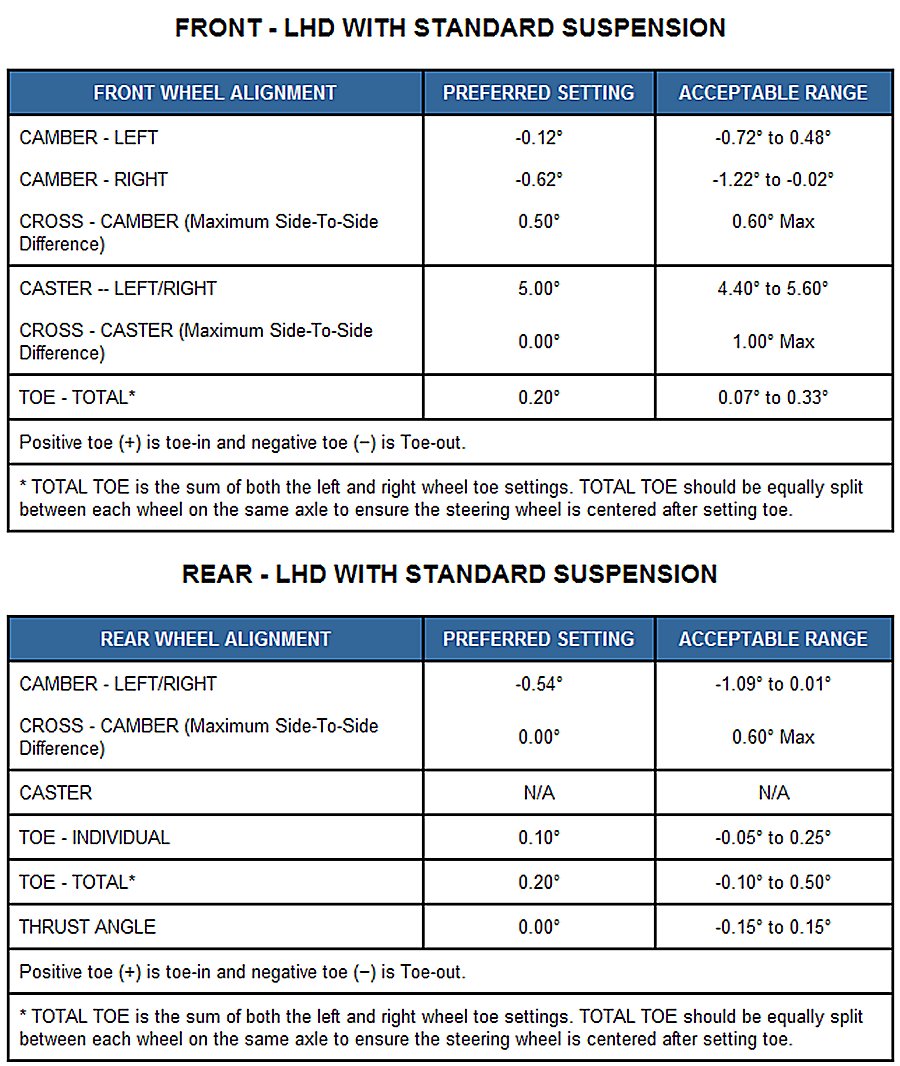

LHD WITH STANDARD SUSPENSION
Standard:
LHD WITH SPORT SUSPENSION
Sport:

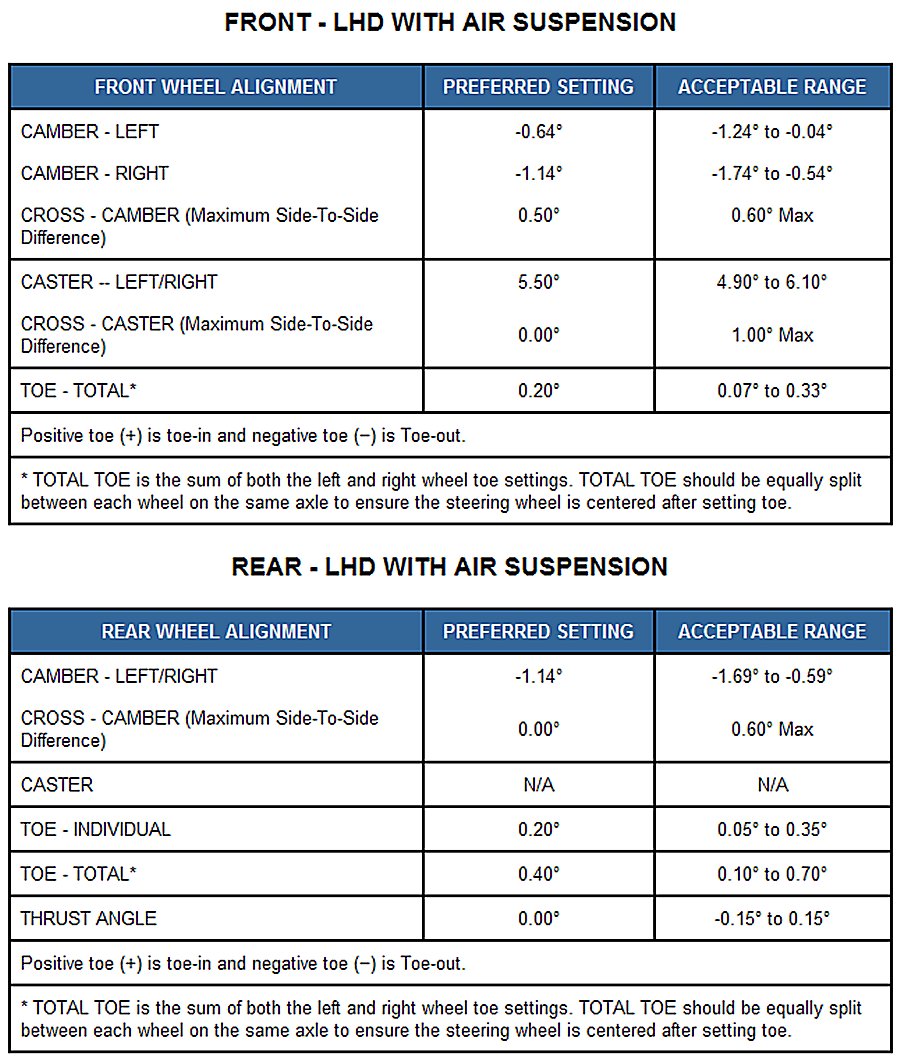

LHD WITH AIR SUSPENSION
Air Suspension:
NOTE: Vehicles equipped with Air Suspension must be in the manually selected "Sport" position (Aero mode) of the terrain select switch when checking vehicle ride height or alignment.
