Timing Cover






TIMING COVER

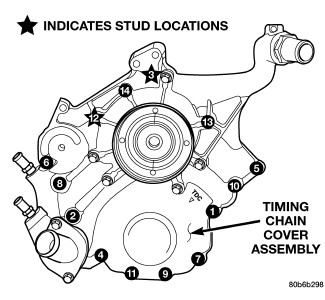

Install Timing cover.
Tighten flange head fasteners 58 Nm (43 ft. lbs.)
