System Specifications

SPECIFICATIONS

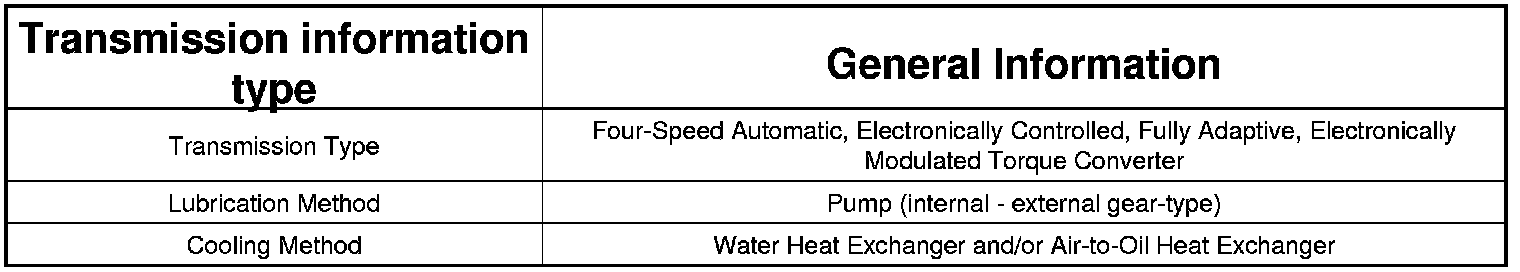

GENERAL SPECIFICATIONS

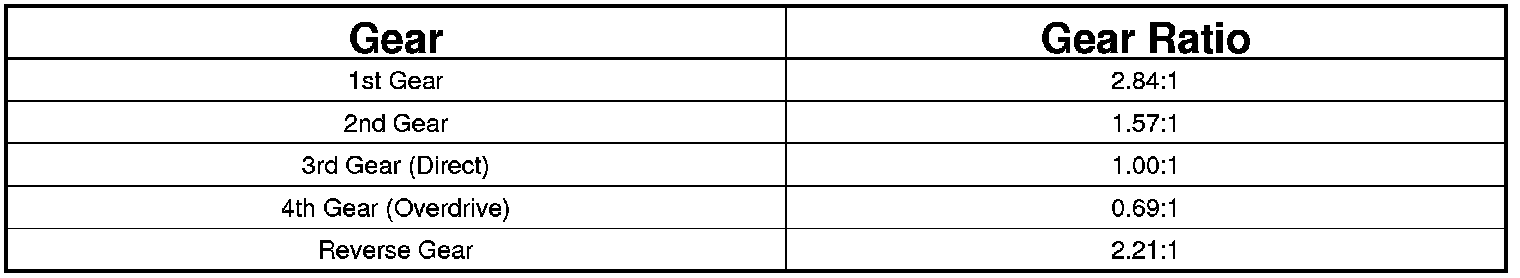

GEAR RATIOS

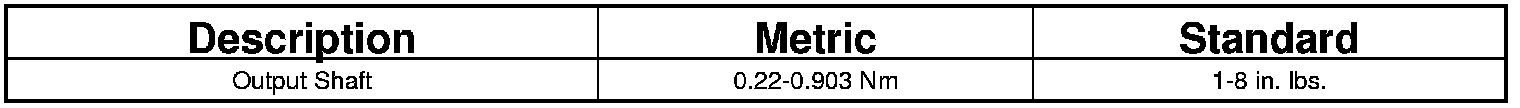

BEARING PRELOAD (Drag Torque)

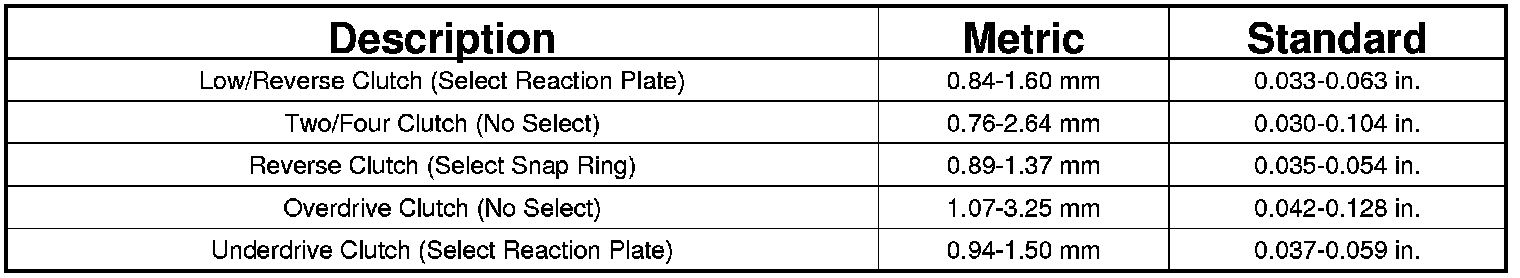

CLUTCH PACK

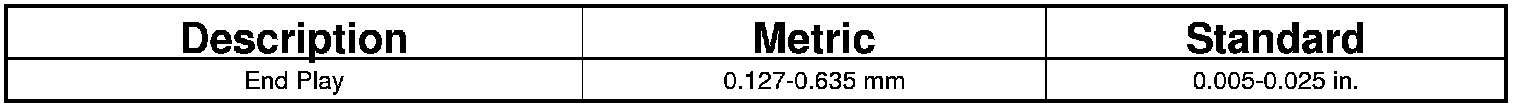

INPUT SHAFT

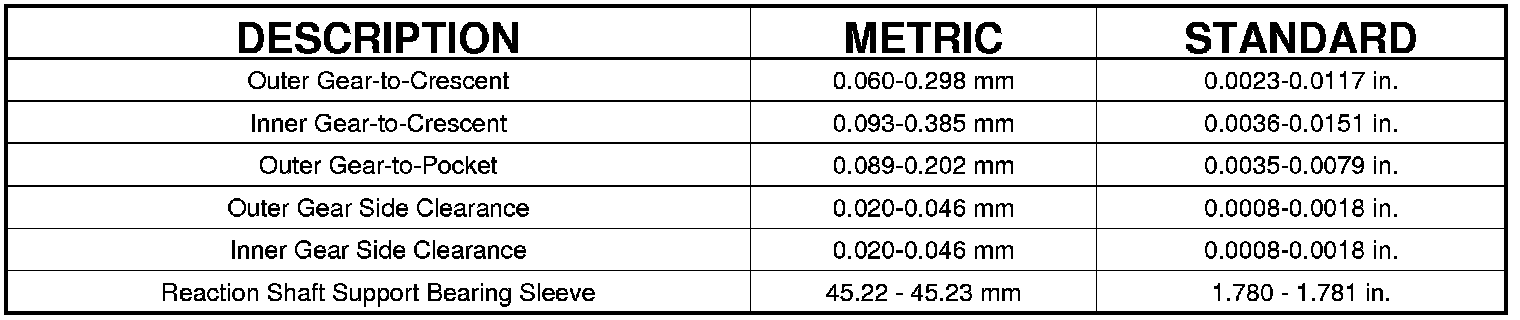

OIL PUMP CLEARANCES

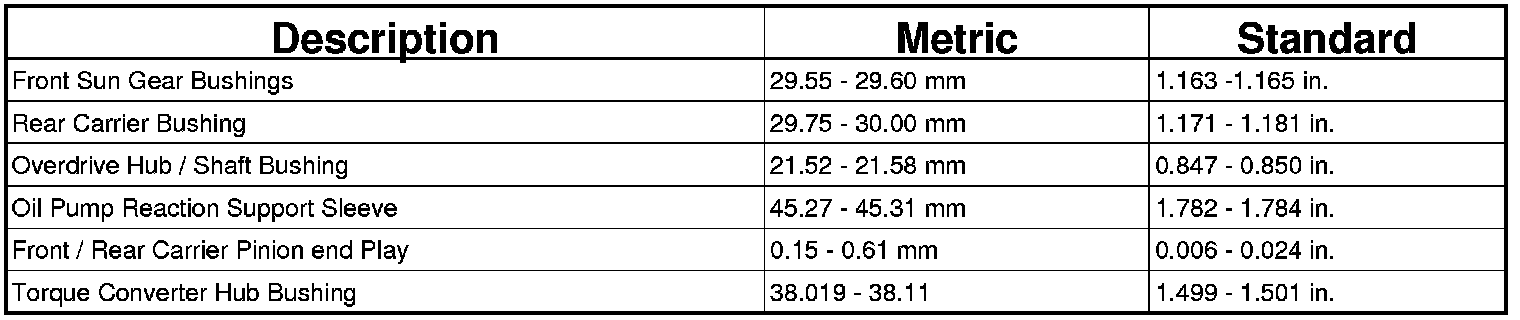

GEAR TRAIN MEASUREMENTS

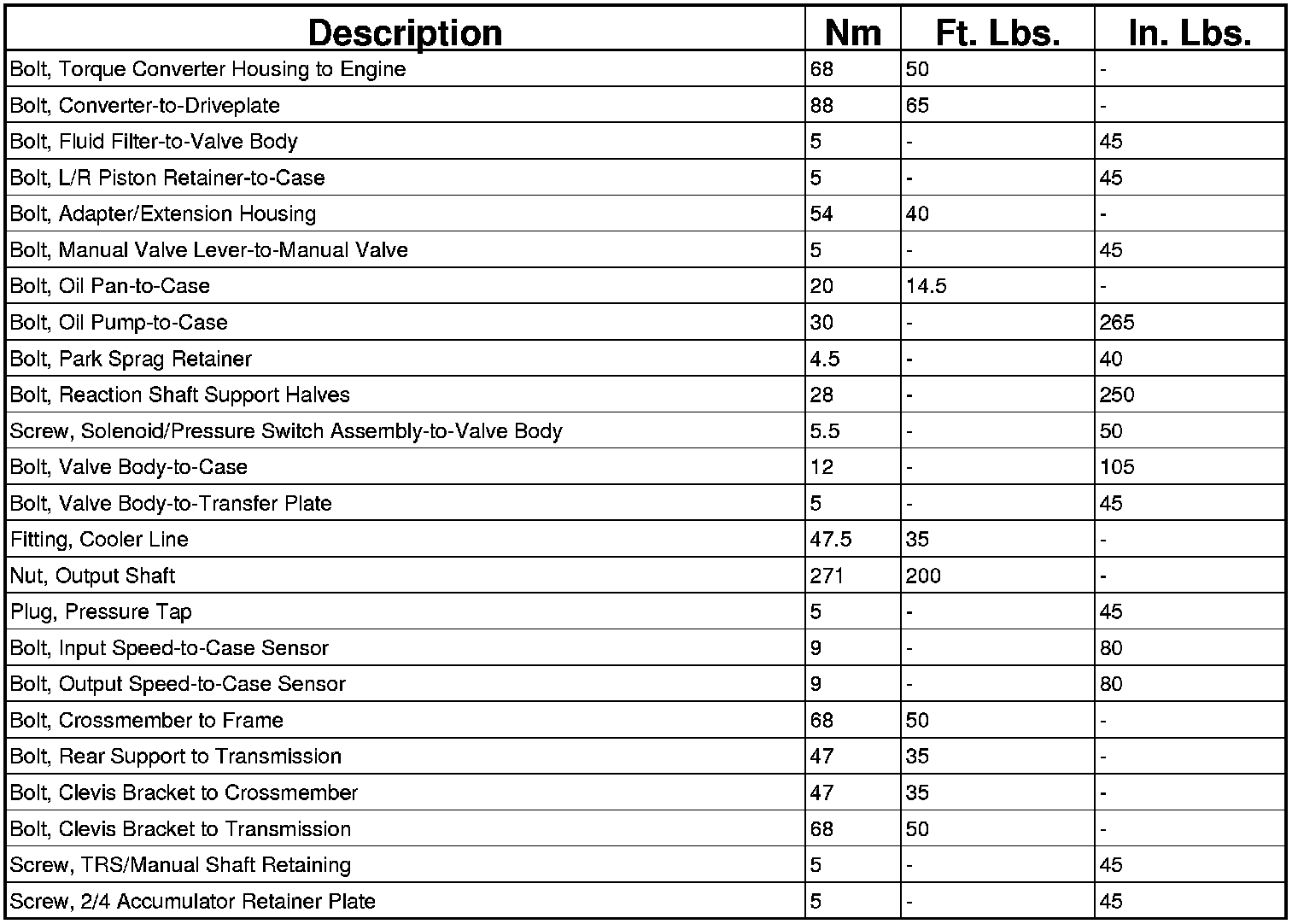

TORQUE SPECIFICATIONS
