Auto Shutdown Relay - Installation






INSTALLATION





1. Refer to TIPM cover for ASD relay location.

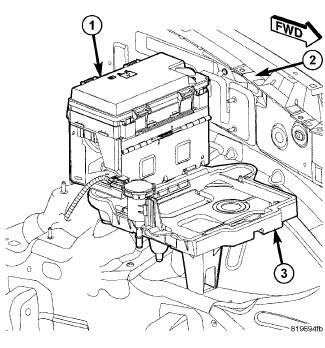

2. Install relay to TIPM (1).
3. Install cover to TIPM.
