Blower Motor Power Module - Installation

INSTALLATION

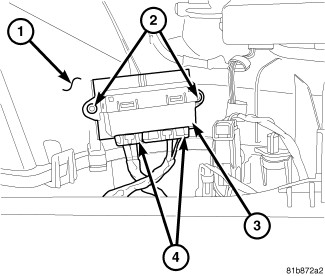

NOTE: LHD model shown. RHD model similar.

1. Position the blower motor power module (3) into the HVAC housing (1).
2. Install the two screws (2) that secure the blower motor power module to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. Connect the electrical connectors (4) to the blower motor power module.
4. Close the glove box door.
5. Reconnect the negative battery cable.
