Power Inverter Module - Installation

INSTALLATION

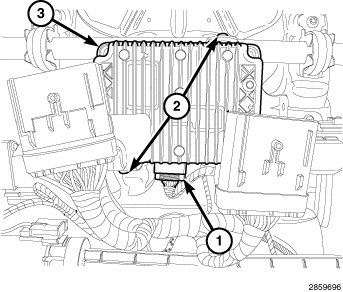

1. Slide the power inverter module (3) into the bracket.
2. Connect the electrical connector (1).
3. Install the two retainers (2).
4. Install the passenger side front seat Front Seat - Installation
5. Connect the negative battery cable.
