Home >> Jeep >> 2012 >> Compass 2WD L4-2.4L >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Rotor/Disc >> Specifications

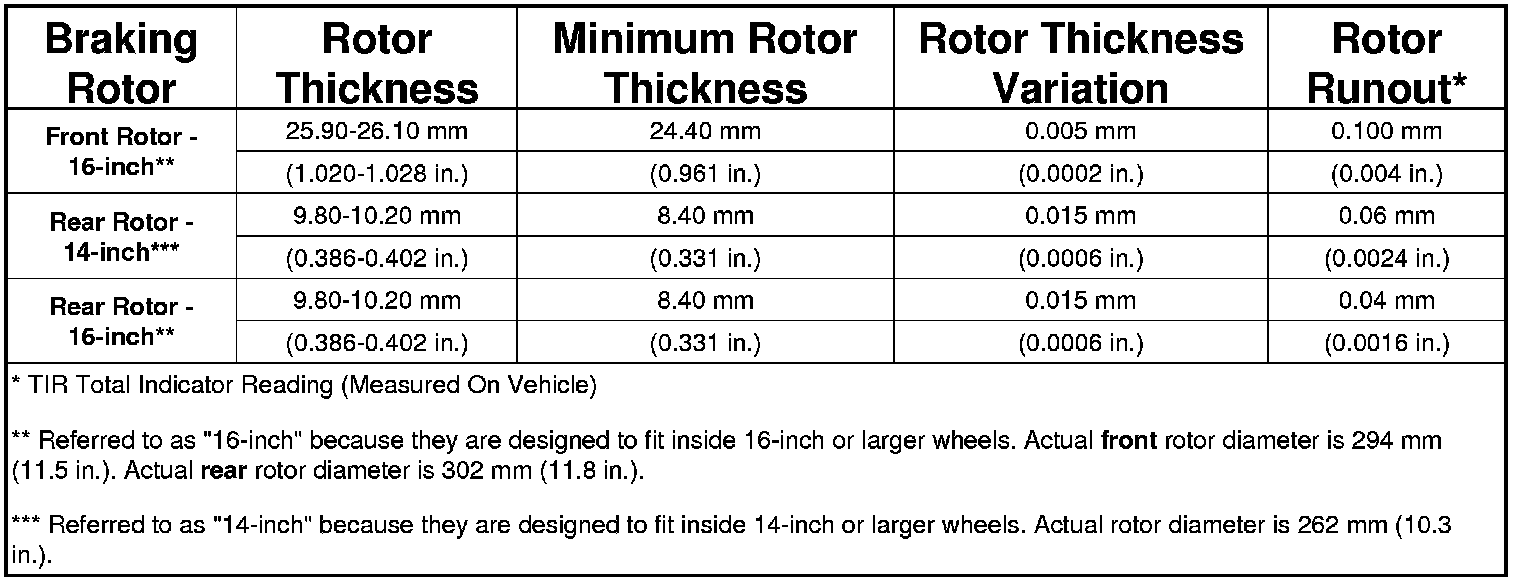

Brake Rotor/Disc: Specifications

SPECIFICATIONS

NOTE: When refacing a rotor, the required TIR (Total Indicator Reading) and thickness variation limits MUST BE MAINTAINED.
