Control Module, Transfer Case
Connector (ASBS) - (CHASSIS) 50 WAY

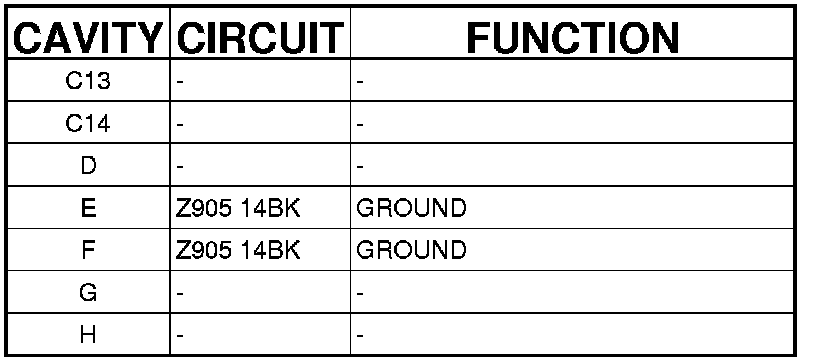

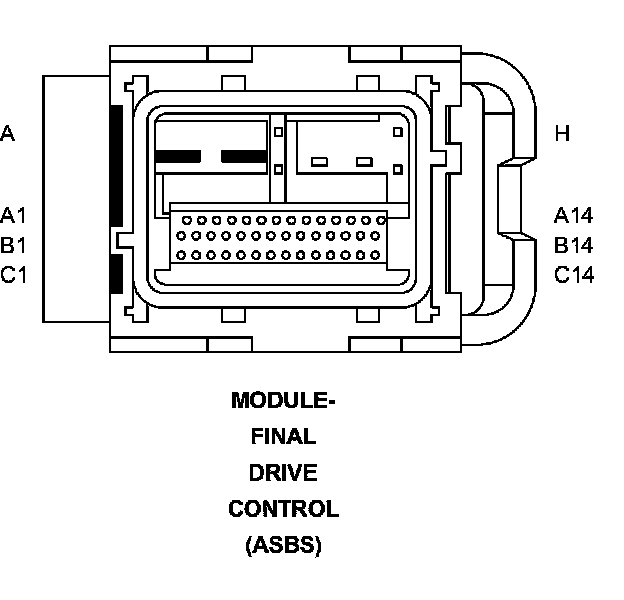

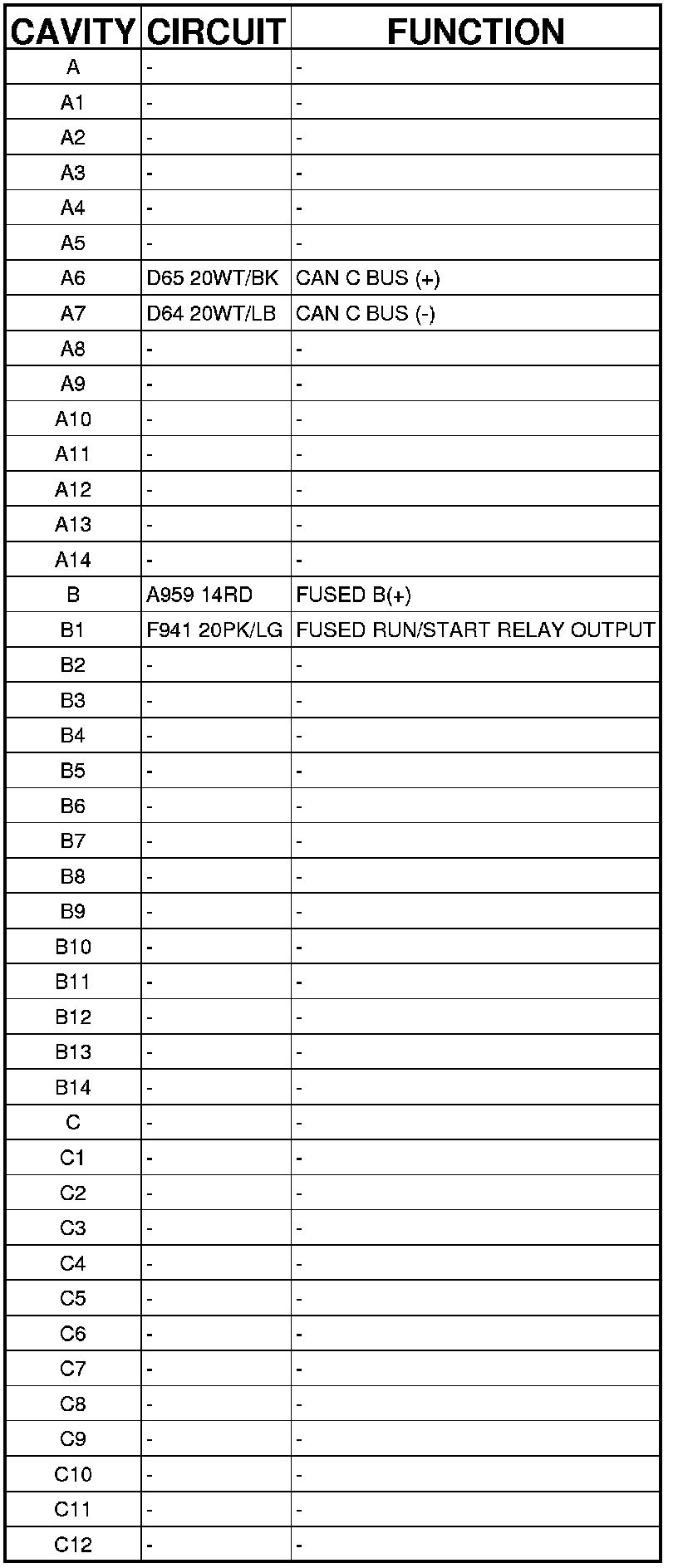

MODULE-FINAL DRIVE CONTROL (ASBS) - (CHASSIS) 50 WAY
