Transmission Position Sensor/Switch: Diagrams

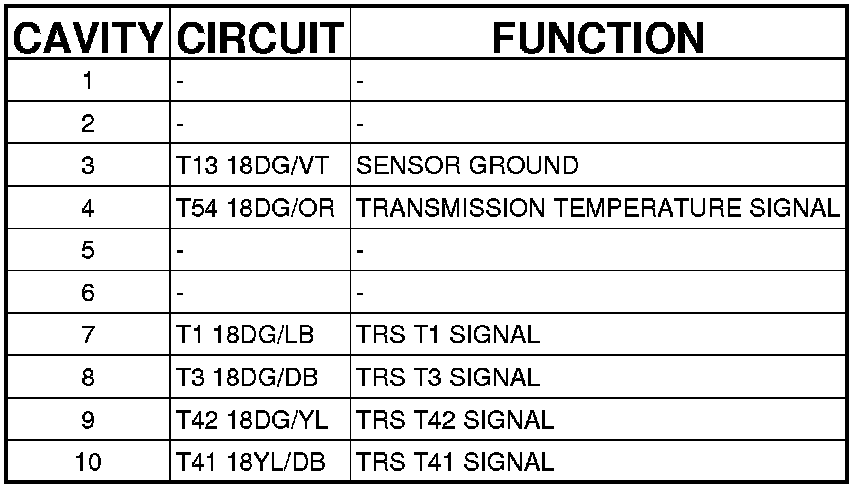

Connector (RLE) - (ENGINE) 10 WAY

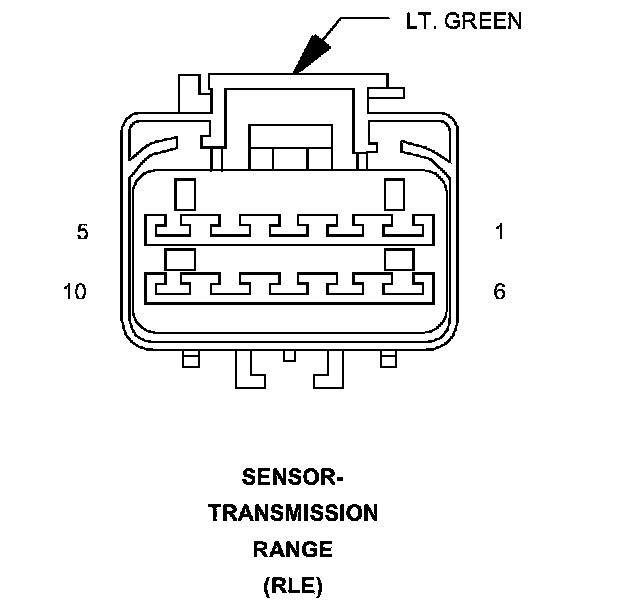

SENSOR-TRANSMISSION RANGE (RLE) - (ENGINE) 10 WAY
