Final Drive Control Module C2 (Instrument Panel) 4 Way
Final Drive Control Module C2 (Instrument Panel) 4 Way

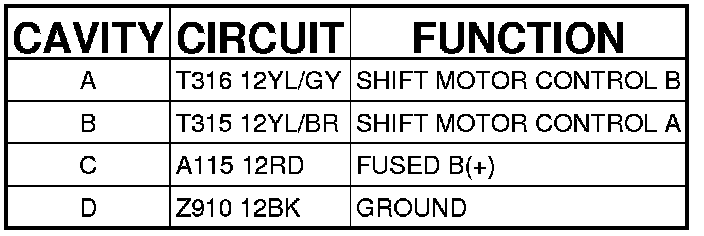

Connector C2 - (INSTRUMENT PANEL) 4 WAY

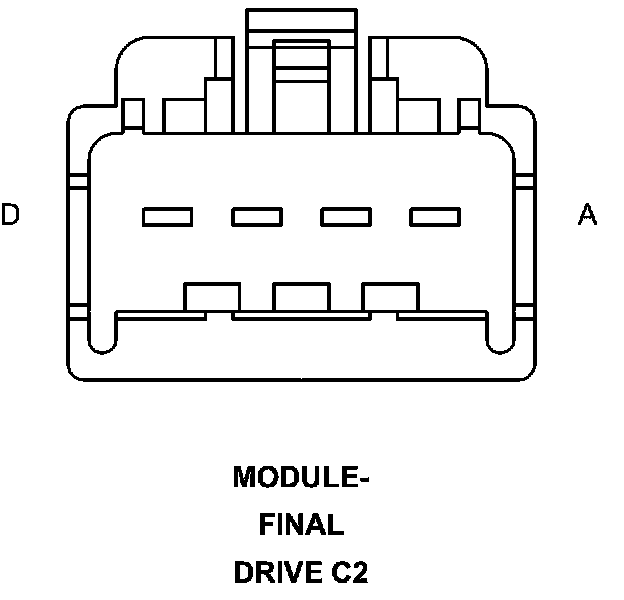

MODULE-FINAL DRIVE - (INSTRUMENT PANEL) 4 WAY
