Final Drive Control Module C1 (Instrument Panel) 16 Way
Final Drive Control Module C1 (Instrument Panel) 16 Way

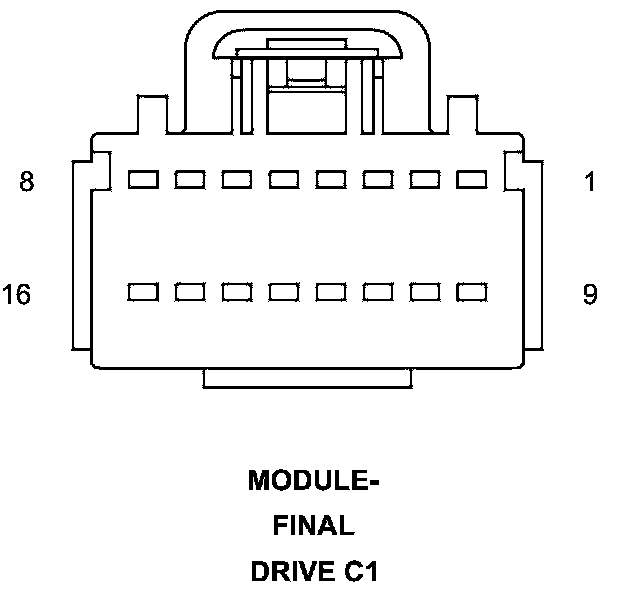

Connector C1 - (INSTRUMENT PANEL) 16 WAY

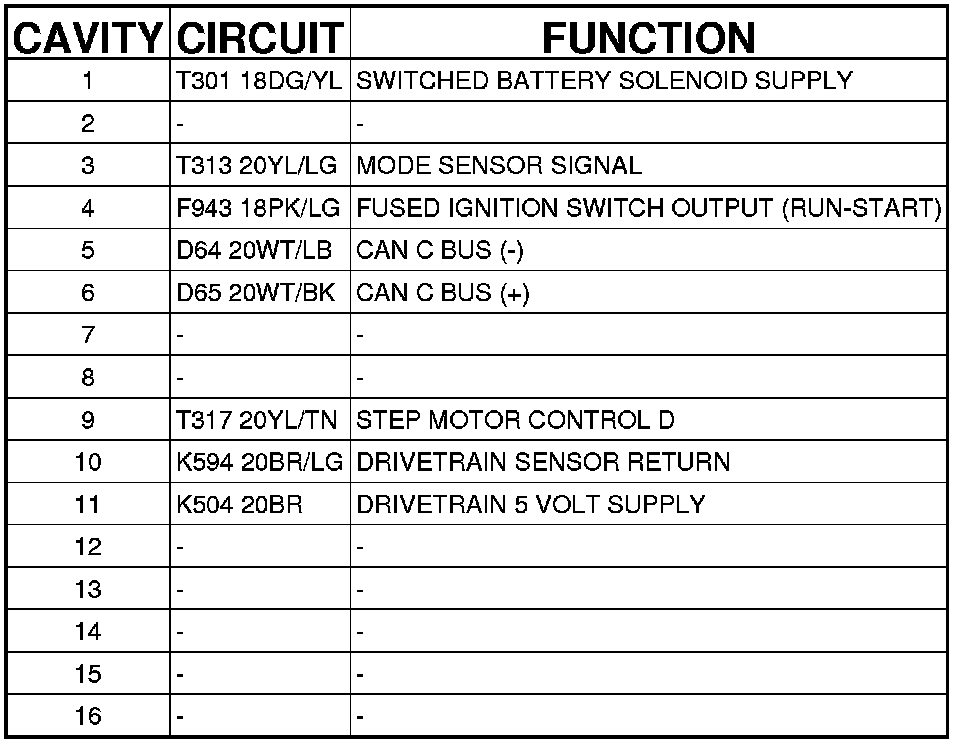

MODULE-FINAL DRIVE - (INSTRUMENT PANEL) 16 WAY
