Power Inverter Module - Installation

INSTALLATION

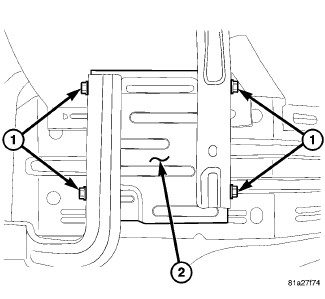

1. Position the inverter module (2) on the mounting bracket assembly.
2. Install the fasteners (1).
3. Install the rear seat assembly, Seat - Installation.
4. Connect the battery negative cable.
