Totally Integrated Power Module C4 (Front End Module) 16 Way

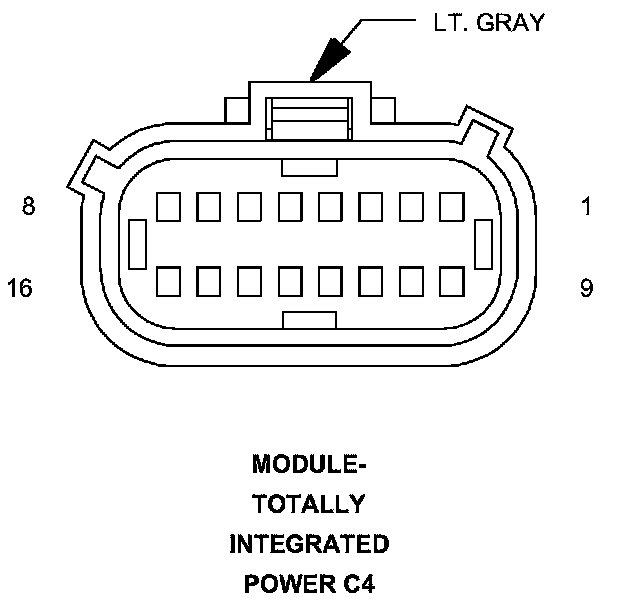

Connector C4 - (FRONT END MODULE) 16 WAY

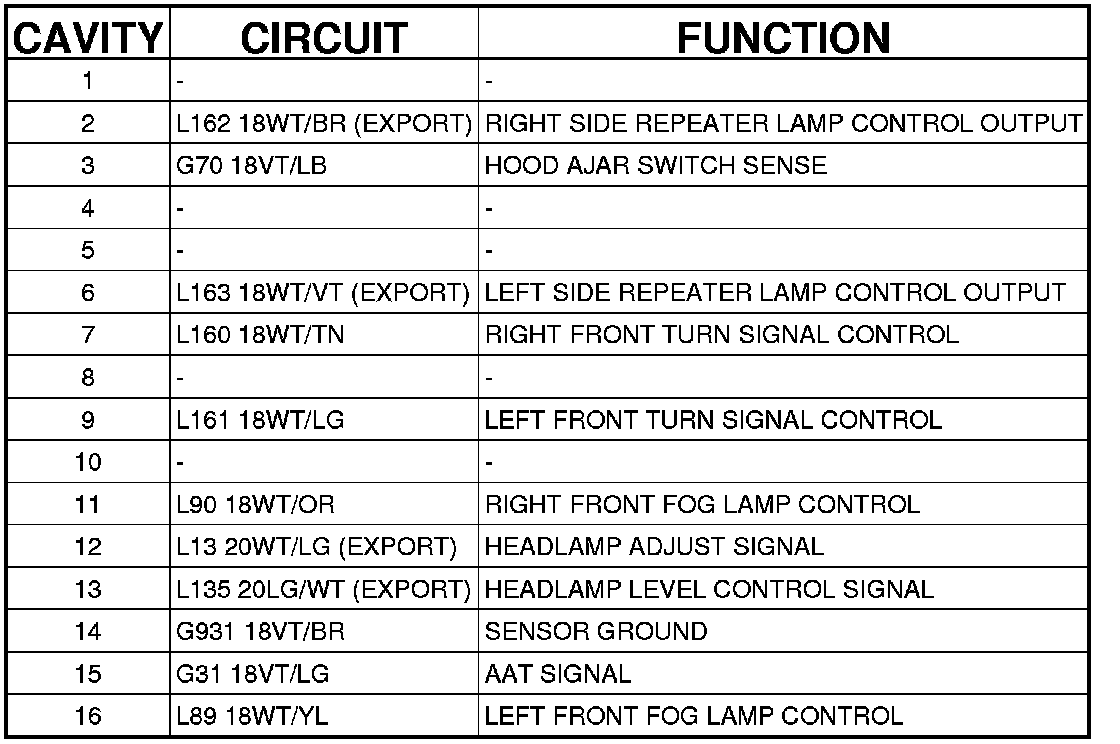

MODULE-TOTALLY INTEGRATED POWER - (FRONT END MODULE) 16 WAY
