Totally Integrated Power Module C3 (Front End Module) 26 Way

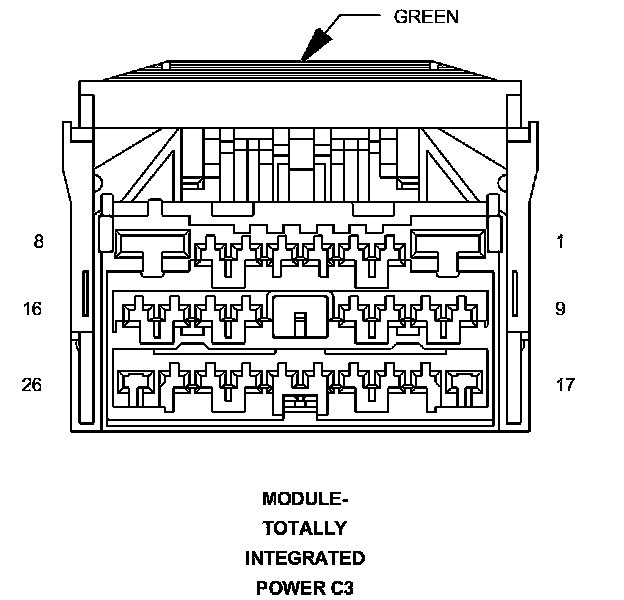

Connector C3 - (FRONT END MODULE) 26 WAY

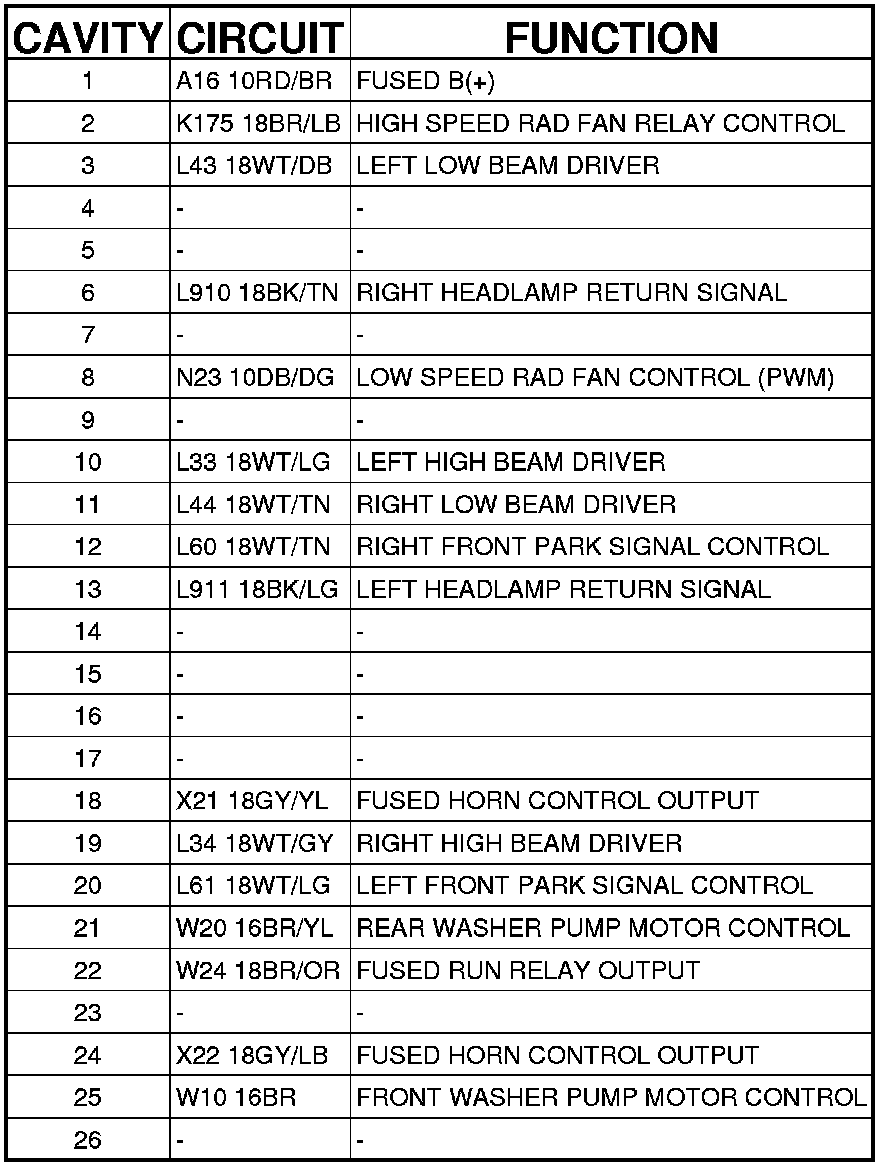

MODULE-TOTALLY INTEGRATED POWER - (FRONT END MODULE) 26 WAY
