Totally Integrated Power Module C2 26 Way

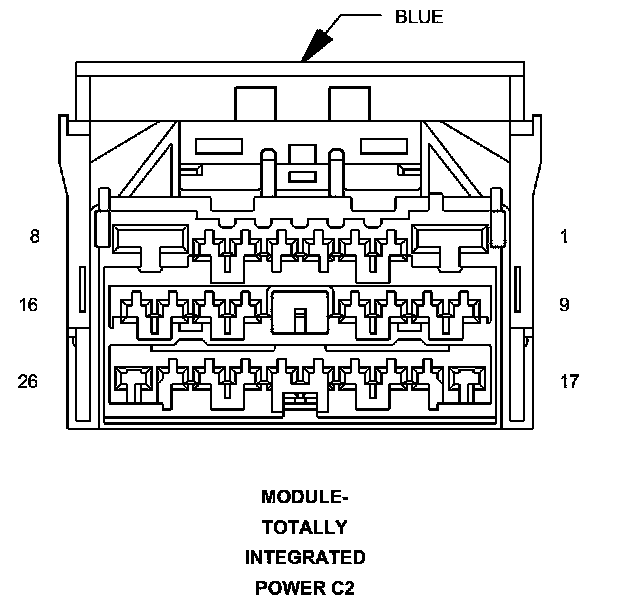

Connector C2 - (POWERTRAIN) 26 WAY

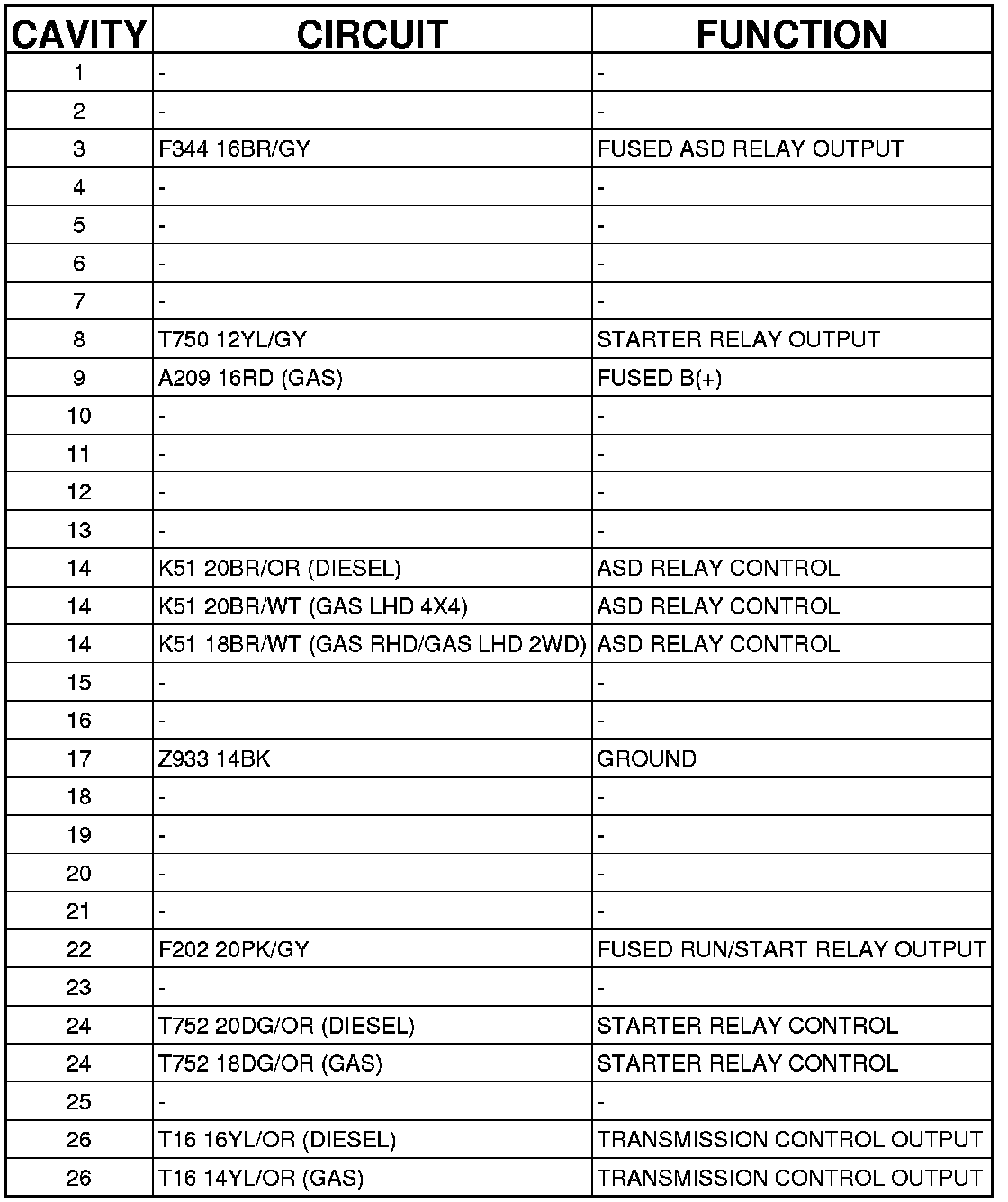

MODULE-TOTALLY INTEGRATED POWER - (POWERTRAIN) 26 WAY
