Totally Integrated Power Module C1 50 Way

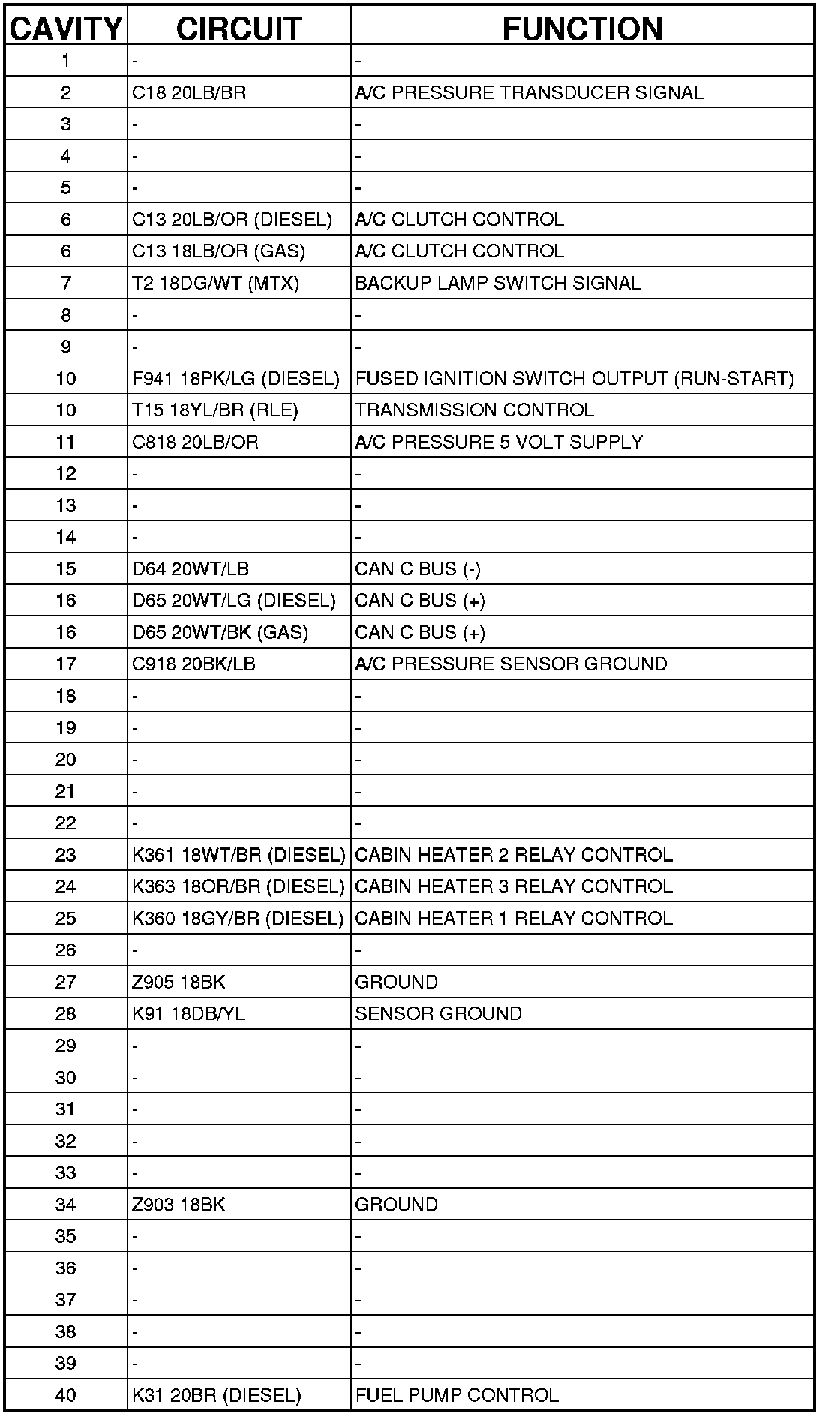

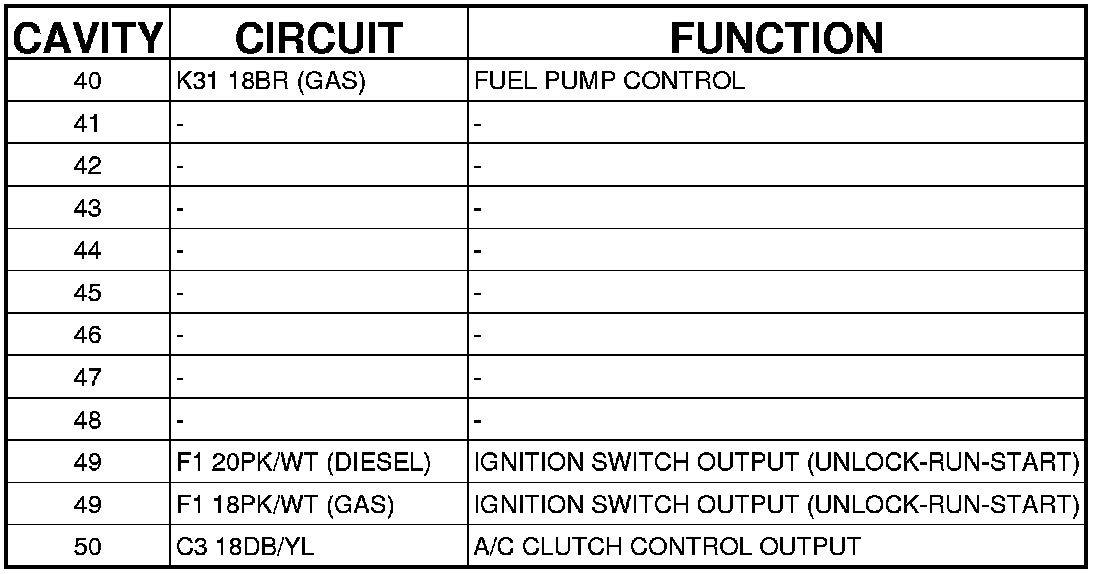

Connector C1 - (POWERTRAIN) 50 WAY

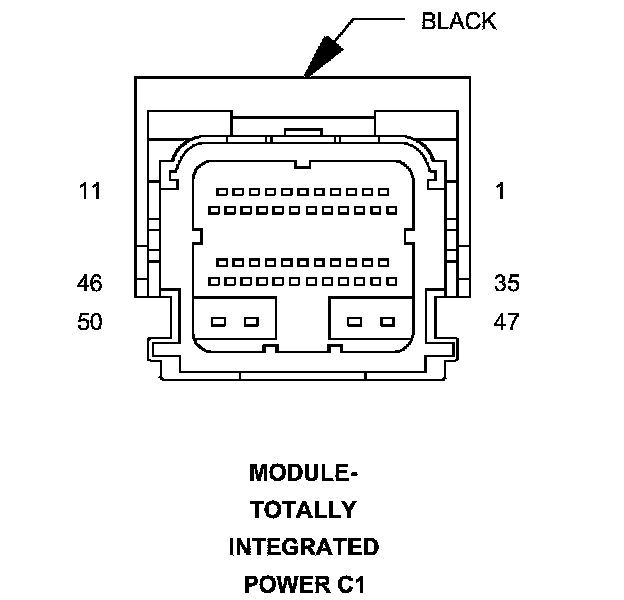

MODULE-TOTALLY INTEGRATED POWER - (POWERTRAIN) 50 WAY
