Powertrain Control Module C3 (Gas) (Powertrain) 38 Way
Powertrain Control Module C3 (Gas) (Powertrain) 38 Way

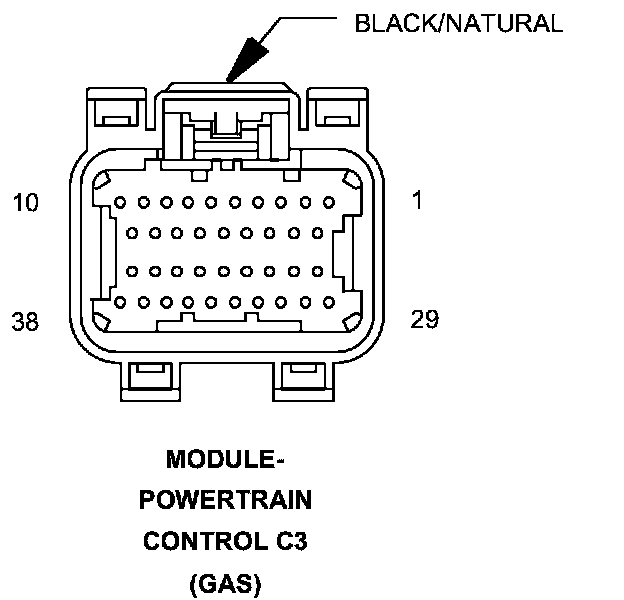

Connector C3 (GAS) - (POWERTRAIN) 38 WAY

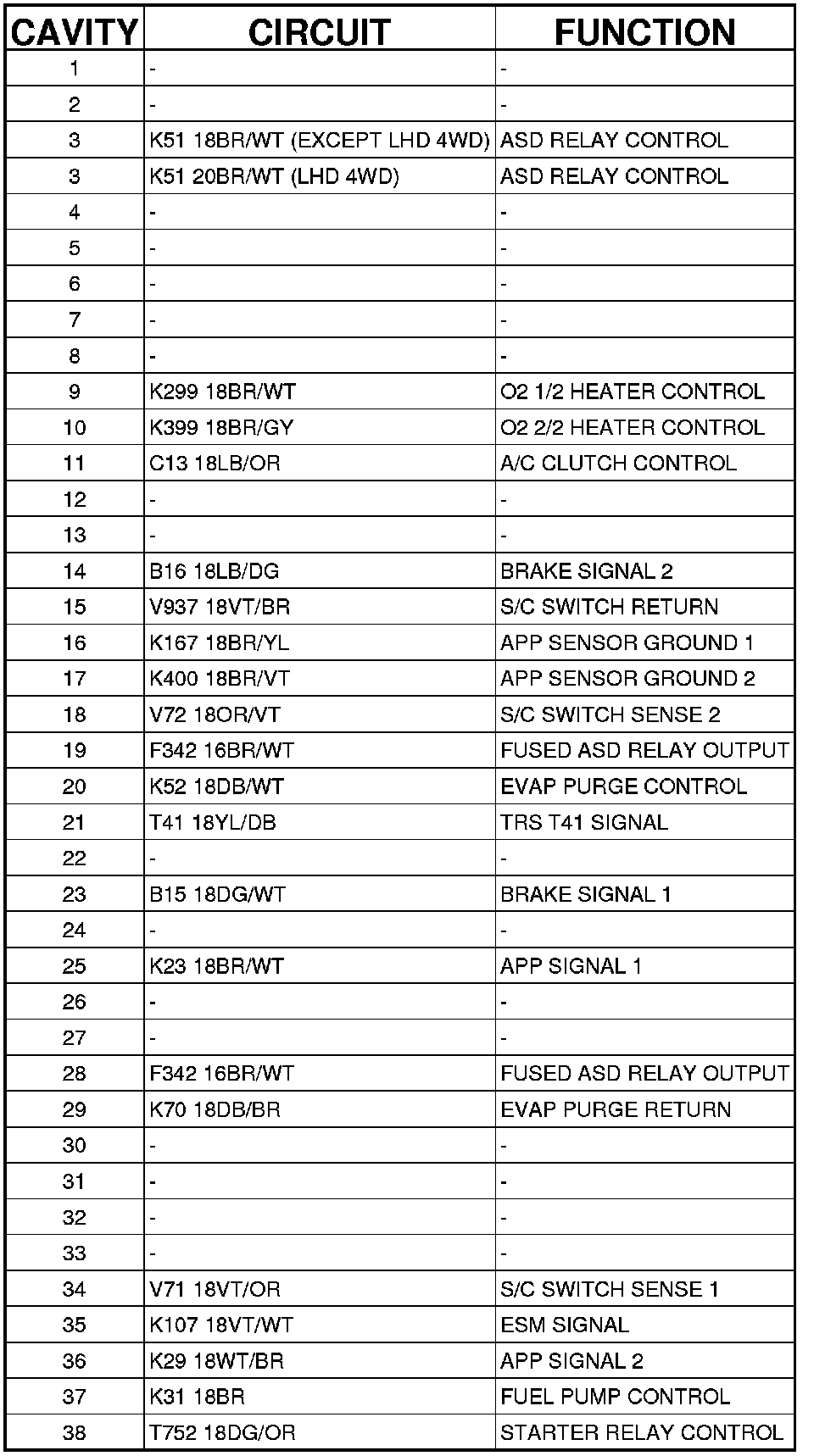

MODULE-POWERTRAIN CONTROL (GAS) - (POWERTRAIN) 38 WAY
