Final Drive Control Module C2 (Underbody) 16 Way
Final Drive Control Module C2 (Underbody) 16 Way

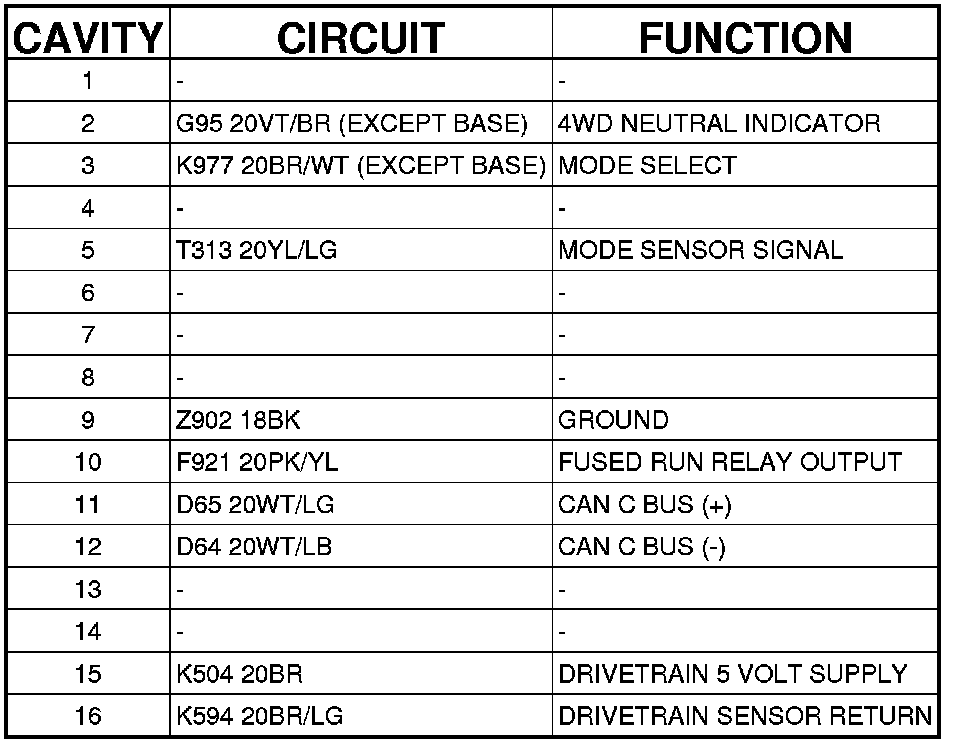

Connector C2 - (UNDERBODY) 16 WAY

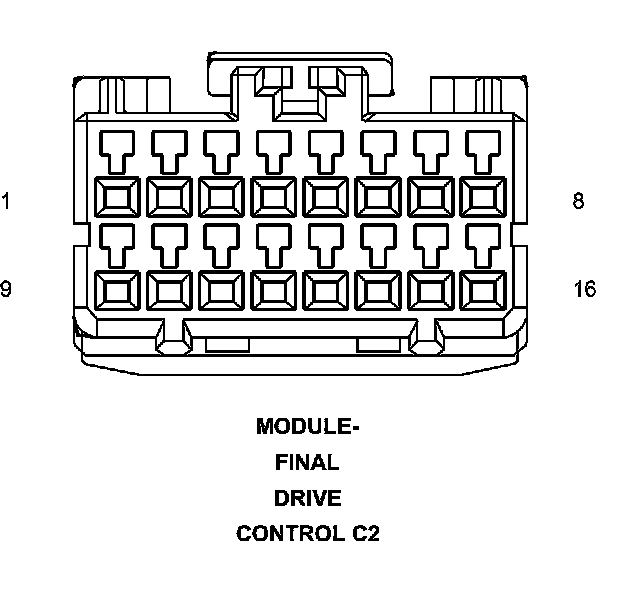

MODULE-FINAL DRIVE CONTROL - (UNDERBODY) 16 WAY
