Manifold Pressure/Vacuum Sensor: Diagrams

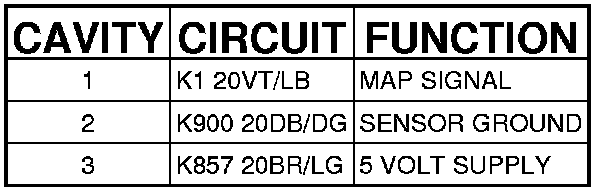

Connector (GAS) - (POWERTRAIN) 3 WAY

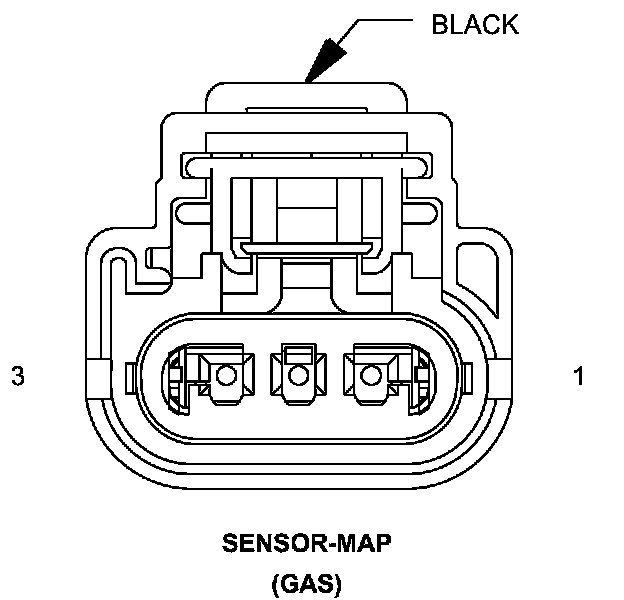

SENSOR-MAP (GAS) - (POWERTRAIN) 3 WAY
