Jeep
>>
2009
>>
Compass 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>
Fuse/Relay Block
Fuse/Relay Block
Fuse/Relay Block

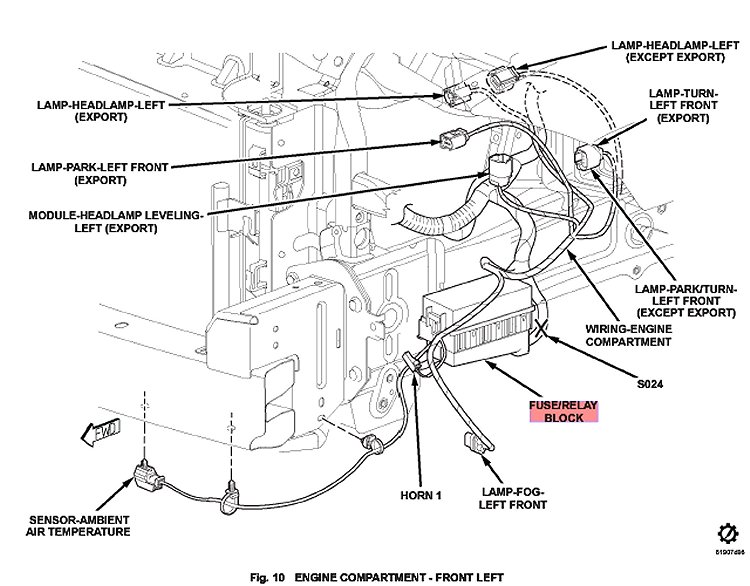

Engine Compartment-Front Left:

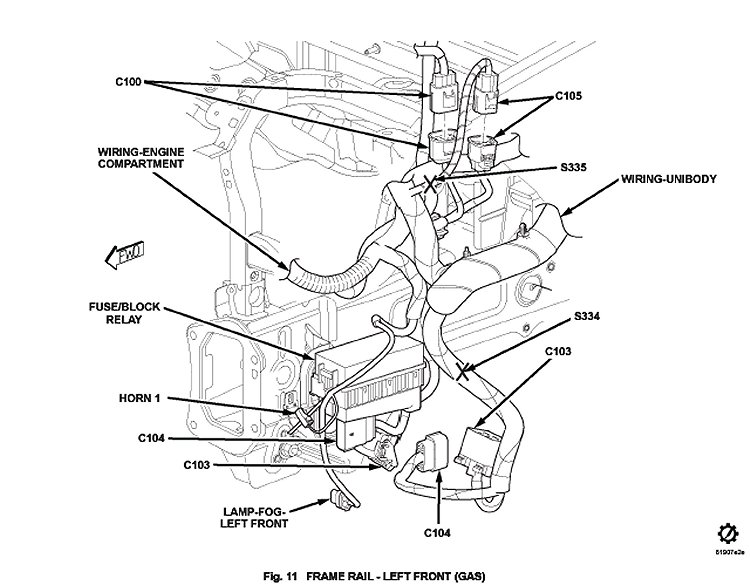

Frame Rail-Left Front (Gas):
