Oil Pressure Sensor: Diagrams

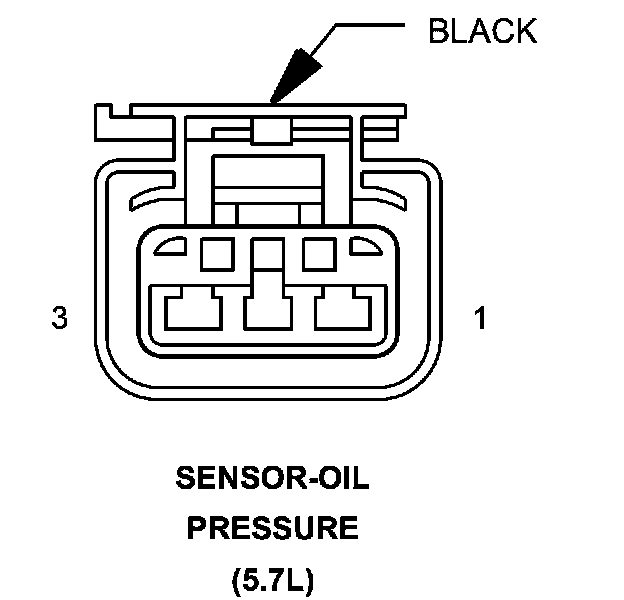

Connector (5.7L) - (INJECTOR SIDE) 3 WAY

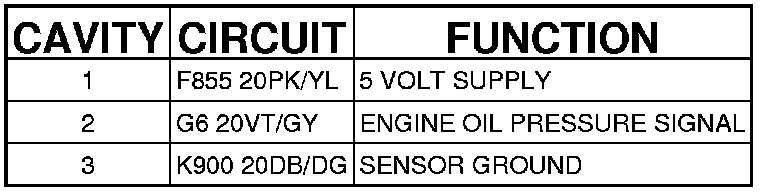

SENSOR-OIL PRESSURE (5.7L) - (INJECTOR SIDE) 3 WAY
