Firing Order: Specifications
ENGINE

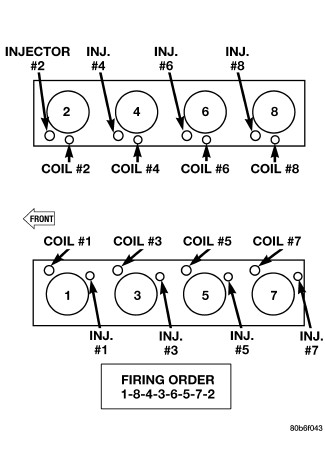

FIRING ORDER
- 4.7L
The
firing order
for the 4.7L is 1-8-4-3-6-5-7-2.
