Fuel Level Sensor: Diagrams

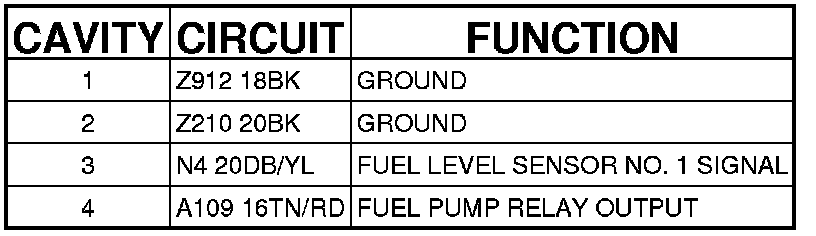

Connector - (FUEL PUMP JUMPER) 4 WAY

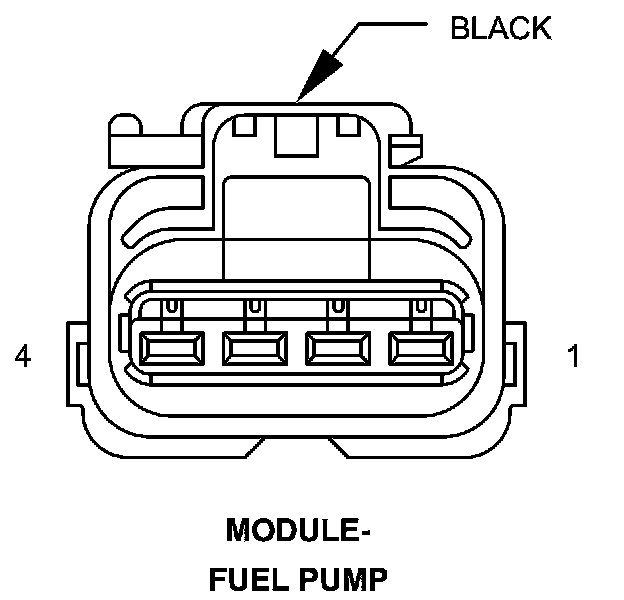

MODULE-FUEL PUMP - (FUEL PUMP JUMPER) 4 WAY
