Accelerator Pedal Position Sensor: Diagrams

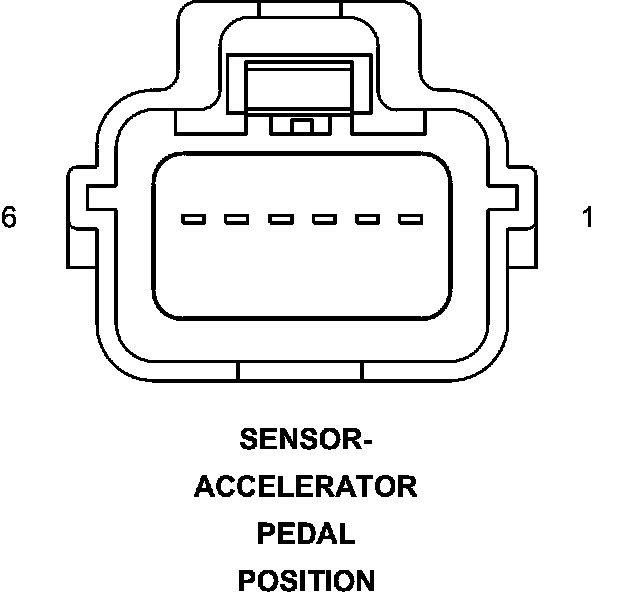

Connector - (HEADLAMP AND DASH) 6 WAY

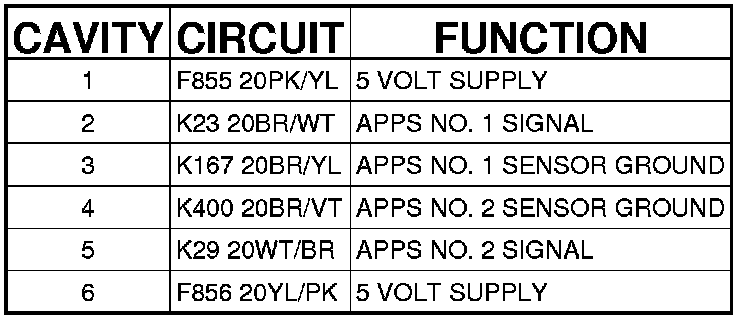

SENSOR-ACCELERATOR PEDAL POSITION - (HEADLAMP AND DASH) 6 WAY
