System Specifications

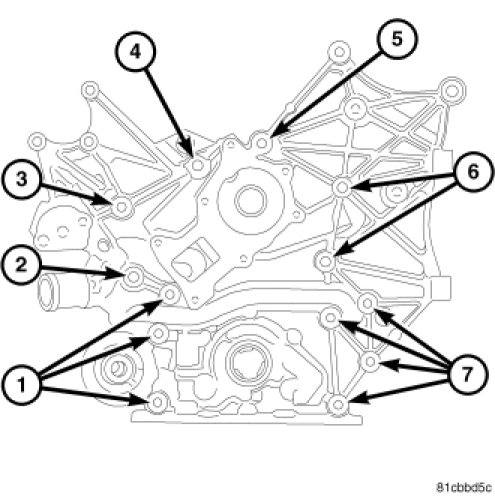

Timing cover.






NOTE: Torque the M10 bolts (2,4,6,) first, then the M8 (1,3,5,7).

Install timing chain cover bolts. Tighten the M10 bolts (2,4,6) to 54 Nm (40 ft. lbs.) and M8 bolts (1,3,5,7) to 28 Nm (21 ft. lbs.).

Crankshaft Damper-Bolt 40 Ft.Lbs. (54 Nm)

Camshaft Sprocket-Bolt 40 Ft.Lbs. (54 Nm)
